Bently Nevada 330130-085-10-00 FluidLoc Extension Cable

Bently Nevada 330130-085-10-00 Extension Cable

Product Introduction

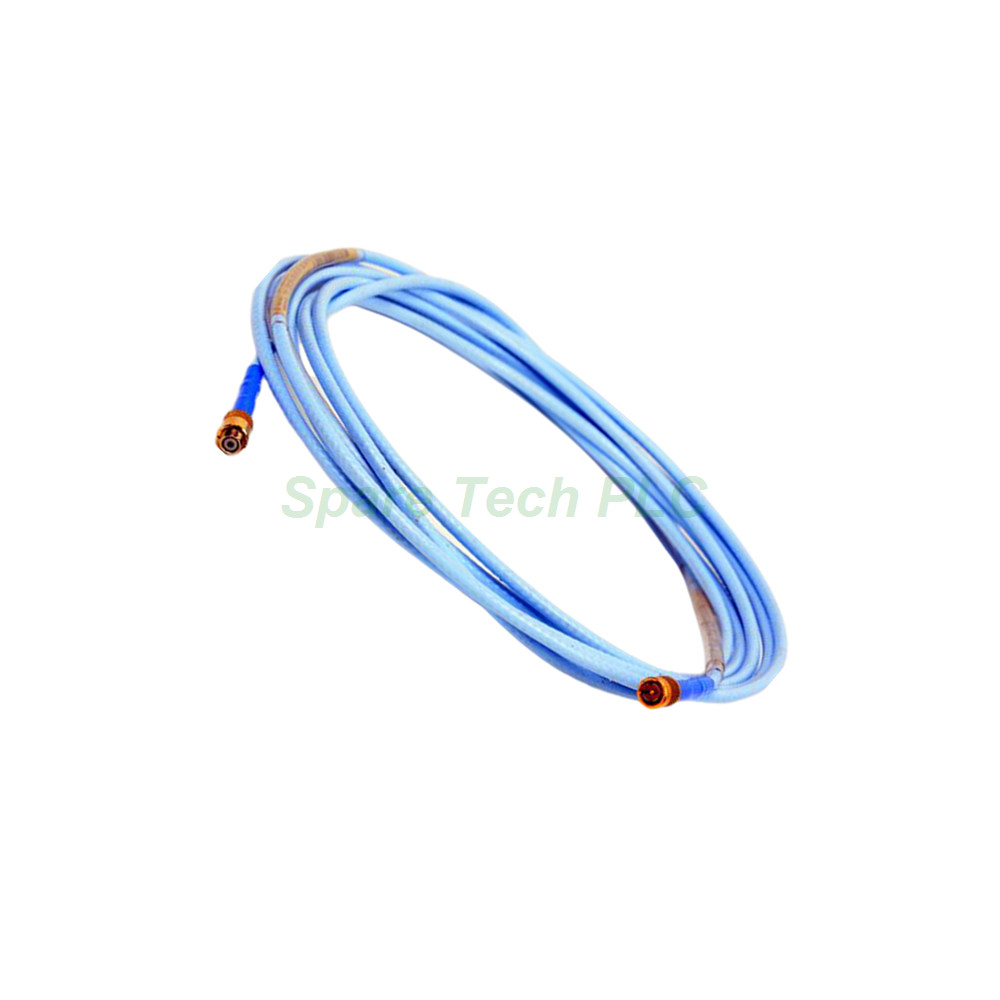

The Bently Nevada 330130-085-10-00 is a specialized extension cable engineered for the 3300 XL 8 mm proximity transducer system. This extension cable incorporates advanced FluidLoc technology to prevent oil and other liquids from leaking out of the machine through the cable's interior. It provides a critical link between the non-contacting probe and the Proximitor sensor. This cable is essential for accurate vibration and position measurements on turbines, compressors, and other rotating machinery where fluid ingress poses a significant concern.

Technical Specifications

The 330130-085-10-00 cable offers precise electrical characteristics and specialized mechanical design. Its specifications ensure system accuracy and long-term reliability in demanding applications.

• Cable Length: 8.5 meters (27.9 feet)

• Cable Type: FluidLoc cable (fluid sealing technology)

• Connector Type: Corrosion-resistant, gold-plated ClickLoc connectors

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

• Center Conductor DC Resistance (RCORE): 1.87 ± 0.28 Ω

• Outer Conductor DC Resistance (RJACKET): 0.56 ± 0.11 Ω

• Probe Compatibility: Accepts 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probes

• Cable Pull Strength: 330 N (75 lbf) with CableLoc design

• Approvals: Not required (standard configuration)

Additionally, this cable includes silicone tape for connection sealing. However, we do not recommend using silicone tape in applications exposed to turbine oil. The FluidLoc option provides a superior sealing solution for such environments.

Mechanical and Environmental Parameters

The Bently Nevada 330130-085-10-00 is built to withstand harsh conditions. Its materials and construction ensure reliable performance over extended periods.

• Weight (Standard): 34 g/m (0.4 oz/ft); total 0.289 kg

• Weight (Armored version): 103 g/m (1.5 oz/ft); total 0.876 kg (if armored option selected)

• Operating Temperature: -51°C to +177°C (-60°F to +350°F)

• Humidity Resistance: Less than 3% change in Average Scale Factor after 56 days at 93% humidity (per IEC 68-2-3)

• Pressure Seal Material: Viton® O-ring (probe tip sealing)

• Maximum Altitude: 2000 meters for specified performance

Furthermore, the patented TipLoc molding method provides a robust bond between the probe tip and body. This design significantly improves durability compared to previous generations. The FluidLoc cable option specifically addresses fluid leakage concerns in critical turbomachinery applications.

Installation and Compatibility Guidelines

Installing the 330130-085-10-00 correctly is crucial for system performance. First, connect the cable securely to both the probe and the Proximitor sensor using the gold-plated ClickLoc connectors. These connectors ensure a corrosion-resistant, reliable electrical connection.

Next, verify that the total system length matches your application requirements. This extension cable is compatible with 3300 XL 8 mm probes and sensors exclusively. For field wiring between the Proximitor sensor and monitor, use 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable. The maximum field wiring length is 305 meters (1,000 feet). However, note that longer lengths may cause signal rolloff at high frequencies.

Finally, consider the power supply requirements. The Proximitor sensor requires -17.5 Vdc to -26 Vdc without barriers. With barriers, it needs -23 Vdc to -26 Vdc. Operation at voltages more positive than -23.5 Vdc can reduce the linear range.

Packaging and Logistics

Your order for the 330130-085-10-00 will include the following items:

• (1) Bently Nevada 330130-085-10-00 FluidLoc Extension Cable (8.5m)

• (1) Roll of silicone tape for connection sealing (included)

Please note that the proximity probe and Proximitor sensor are sold separately. All shipments are handled via trusted global carriers. We offer shipping through Fedex, UPS, DHL to ensure fast and secure delivery worldwide.

Frequently Asked Questions (FAQ)

1. What does the FluidLoc cable option do?
The FluidLoc option on 330130-085-10-00 prevents oil and other liquids from leaking out of the machine through the cable's interior. This feature is critical for turbomachinery applications where fluid ingress can compromise system integrity.

2. What is the difference between the "10" and "13" cable options?
The "10" option, as found on 330130-085-10-00, specifies FluidLoc cable without an armored jacket. The "13" option specifies armored FluidLoc cable, which adds mechanical protection.

3. Can I use this extension cable with a 3300 5 mm probe?
Yes, the Bently Nevada 330130-085-10-00 is compatible with 3300-series 5 mm probes, as well as 3300 8 mm and 3300 XL 8 mm probes.

4. Why does the cable include silicone tape, and when should I avoid using it?
The silicone tape serves as an alternative to connector protectors. However, we do not recommend using silicone tape in applications where the connection point will be exposed to turbine oil, as it may degrade over time.

5. What is the maximum field wiring length between the sensor and the monitor?
The maximum recommended field wiring length is 305 meters (1,000 feet). Using longer lengths may affect the frequency response and cause signal attenuation at higher frequencies.
