Bently Nevada 330130-075-13-05 7.5m Armored FluidLoc Cable

Bently Nevada 330130-075-13-05 Armored Extension Cable for 3300 XL Systems

Product Introduction

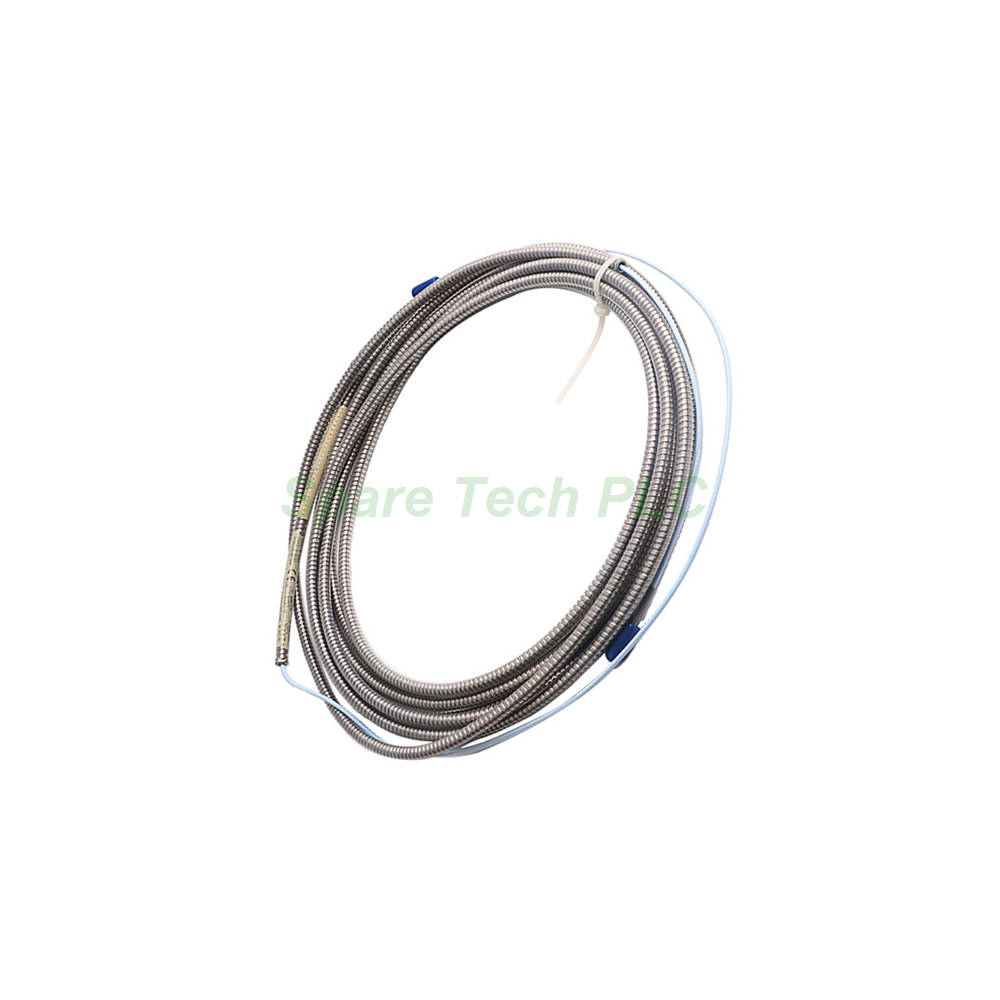

The Bently Nevada 330130-075-13-05 represents the pinnacle of extension cable design for 3300 XL series Proximitor sensors and proximity probes. This 7.5-meter (24.6 feet) cable integrates the advanced FluidLoc technology, which effectively blocks oil and other liquids from migrating through the cable's interior. In addition, this model includes both a rugged armored outer jacket and a connector protector for maximum physical protection. Its gold-plated ClickLoc connectors offer outstanding corrosion resistance and maintain signal integrity over time. Furthermore, the Bently Nevada 330130-075-13-05 carries ATEX, CSA, and IECEx approvals, making it fully suitable for installation in potentially explosive environments. Choose this armored cable to ensure accurate vibration data and exceptional durability for your most critical machinery protection applications.

Technical Specifications

The Bently Nevada 330130-075-13-05 exhibits precise electrical characteristics that guarantee measurement accuracy. For example, its typical capacitance is rated at 69.9 pF/m (21.3 pF/ft). The nominal DC resistance from center conductor to center conductor (RCORE) measures 1.65 ± 0.25 Ω, while the outer conductor resistance (RJACKET) is 0.49 ± 0.10 Ω for this 7.5-meter length. This cable is fully compatible with the 3300 XL Proximitor sensor, which requires a power supply of -17.5 Vdc to -26 Vdc (or -23 Vdc to -26 Vdc with barriers). Additionally, the system offers a supply sensitivity of under 2 mV per volt change and a 50 Ω output resistance. Its linear range spans 2 mm (80 mils) for effective displacement measurement. The armored construction adds significant mechanical protection without compromising these electrical characteristics.

Mechanical and Environmental Durability

The Bently Nevada 330130-075-13-05 is built for the most demanding industrial environments. Its armored outer jacket provides superior resistance to abrasion, impact, and crushing forces. This cable also features a patented CableLoc design that provides a pull strength of 330 N (75 lbf) for secure attachment between the cable and probe tip. Likewise, the TipLoc molding method significantly strengthens the bond between the probe tip and its body. The FluidLoc option is particularly valuable for turbine applications, as it stops oil from leaking out through the cable's interior. Moreover, the connector protector supplied with this model adds an extra layer of defense against contamination. All connectors are gold-plated to resist corrosion and ensure a stable, low-resistance connection. The cable's performance characteristics are verified at temperatures between +18°C and +27°C and at altitudes up to 2000 meters, with less than a 3% change in Average Scale Factor after 56 days of humidity testing per IEC 68-2-3.

Approvals and System Compatibility

The Bently Nevada 330130-075-13-05 meets stringent international safety standards. Specifically, it holds CSA, ATEX, and IECEx approvals, confirming its suitability for use in explosive atmospheres. This armored extension cable works with non-contacting 3300-series 5 mm probes, 3300 8 mm probes, and 3300 XL 8 mm probes. Nevertheless, to achieve the specified system accuracy and interchangeability, Bently Nevada recommends using it exclusively with 3300 XL 8 mm components and calibrating against an AISI 4140 steel target. For field wiring, we recommend using 3-conductor shielded triad cable (16 to 24 AWG). The maximum recommended distance between the Proximitor sensor and the monitor is 305 meters (1,000 feet), with frequency response graphs available for reference when using longer runs.

Installation Guidelines

Correct installation is crucial for maximizing the performance of the Bently Nevada 330130-075-13-05. First, always utilize the gold-plated ClickLoc connectors to ensure a secure and corrosion-resistant connection. This model includes both an armored jacket and a connector protector, offering the highest level of physical protection available. In fact, Bently Nevada advises against using silicone tape in applications where the connection point may be exposed to turbine oil. Therefore, the connector protector is the recommended solution for such harsh conditions. Additionally, verify the power supply voltage is set correctly, particularly when using barriers, to avoid operating at a voltage more positive than -23.5 Vdc, which could reduce the linear range. The associated 3300 XL 8 mm probes feature a Viton® O-ring to seal differential pressure between the probe tip and case.

Packaging List

Your shipment for the Bently Nevada 330130-075-13-05 includes the following items:

• 1 x 3300 XL Armored Extension Cable (7.5 meters, FluidLoc option)

• 1 x Connector protector (pre-installed)

• 1 x Roll of silicone tape (as backup for connector protection)

Frequently Asked Questions (FAQ)

Q1: What is the length of the Bently Nevada 330130-075-13-05 extension cable?
A1: This model provides a length of 7.5 meters, which equals 24.6 feet.

Q2: What makes this cable "armored" and why is it important?
A2: The armored jacket provides superior resistance to abrasion, impact, and crushing forces. This makes it ideal for harsh industrial environments where standard cables might be damaged.

Q3: Is the Bently Nevada 330130-075-13-05 approved for hazardous locations?
A3: Yes. It carries CSA, ATEX, and IECEx approvals, making it suitable for installation in potentially explosive atmospheres.

Q4: What is the difference between the FluidLoc cable and the connector protector on this model?
A4: The FluidLoc design prevents oil from leaking through the cable interior, while the connector protector provides physical shielding for the connection point. This model includes both for maximum protection.

Q5: What shipping methods are available for this product?
A5: All orders for the Bently Nevada 330130-075-13-05 are shipped via FedEx, UPS, or DHL to ensure prompt and reliable delivery worldwide.
