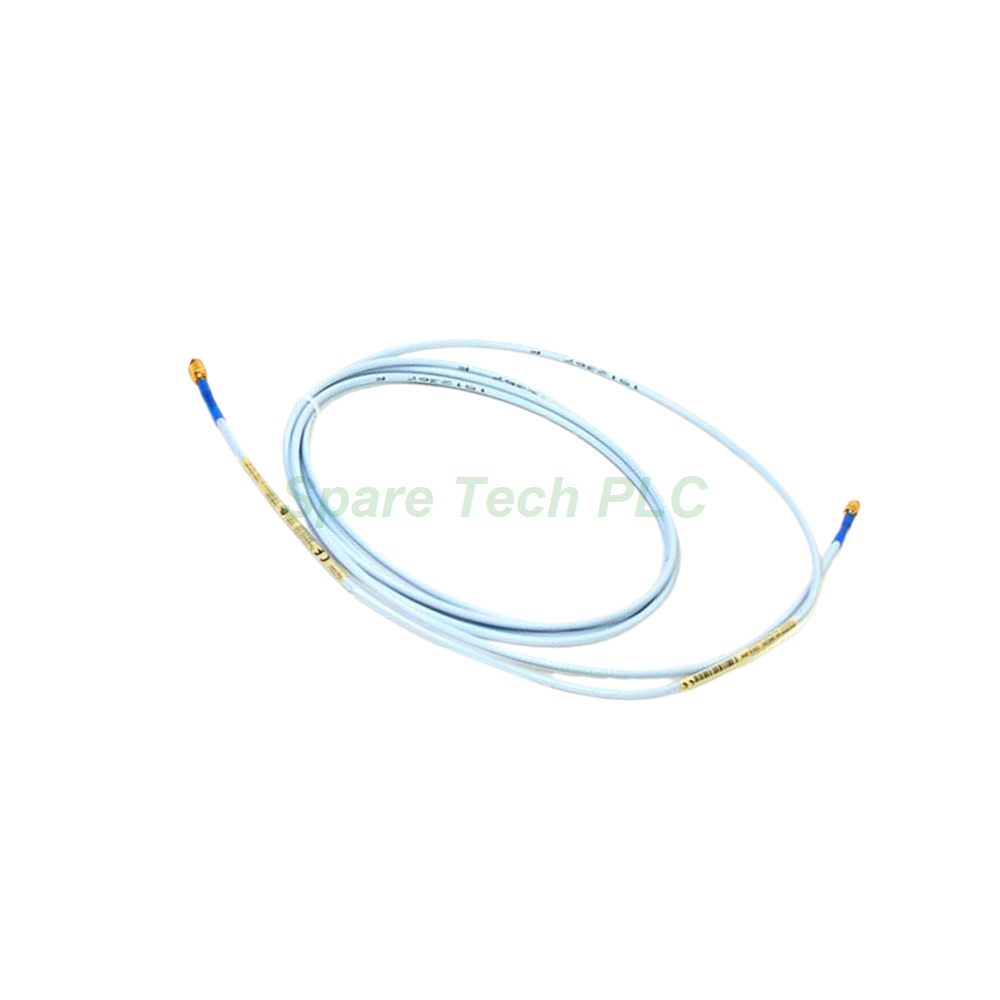

The Bently Nevada 330130-060-10-05 is a high-performance extension cable engineered specifically for use with 3300 XL 8 mm Proximitor sensors and proximity probes. This 6.0-meter (19.7 feet) cable features the innovative FluidLoc option, which provides a robust barrier against oil and liquid ingress. Consequently, it maintains the integrity of your vibration monitoring system even in demanding environments. Furthermore, its gold-plated ClickLoc connectors ensure a corrosion-resistant, secure connection that minimizes signal loss. This model also carries critical ATEX, CSA, and IECEx approvals, making it suitable for hazardous area installations. Choose the Bently Nevada 330130-060-10-05 to achieve accurate, reliable machinery protection data.
The Bently Nevada 330130-060-10-05 extension cable offers precise electrical characteristics that are vital for system accuracy. For instance, its typical capacitance is rated at 69.9 pF/m (21.3 pF/ft). Moreover, the nominal DC resistance from center conductor to center conductor (RCORE) is 1.32 ± 0.21 Ω, while the outer conductor resistance (RJACKET) is 0.39 ± 0.08 Ω for this 6.0-meter length. These parameters ensure the cable works seamlessly with the 3300 XL Proximitor sensor, which requires a power supply of -17.5 Vdc to -26 Vdc (or -23 Vdc to -26 Vdc with barriers). The system also demonstrates a supply sensitivity of less than 2 mV change per volt change, alongside a 50 Ω output resistance. Additionally, the cable supports a wide linear range of 2 mm (80 mils).
Engineered for industrial resilience, the Bently Nevada 330130-060-10-05 features a patented CableLoc design. This provides a pull strength of 330 N (75 lbf) to securely attach the cable and probe tip. Similarly, the TipLoc molding method creates a robust bond between the probe tip and body. The FluidLoc cable option specifically prevents oil and other liquids from leaking out through the cable's interior. Furthermore, the cable's connectors are corrosion-resistant and gold-plated, ensuring longevity in harsh conditions. Its operating temperature range is defined between +18°C and +27°C for specified performance, with the overall system suitable for a maximum altitude of 2000 meters.
Safety and compliance are paramount with the Bently Nevada 330130-060-10-05. Specifically, it holds CSA, ATEX, and IECEx approvals, certifying its use in potentially explosive atmospheres. This extension cable is compatible with non-contacting 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm proximity probes. However, for optimal system accuracy, Bently Nevada recommends using the cable solely with 3300 XL 8 mm components and calibrating against an AISI 4140 steel target. For field wiring, we recommend using 3-conductor shielded triad cable (16 to 24 AWG) for connections up to 305 meters (1,000 feet) from the Proximitor sensor to the monitor.
Proper installation of the Bently Nevada 330130-060-10-05 ensures reliable operation. First, always use the gold-plated ClickLoc connectors for a secure, corrosion-resistant fit. Each cable includes silicone tape as an alternative to connector protectors. However, we do not recommend using this silicone tape in applications where the connection point will be exposed to turbine oil. For such cases, the FluidLoc option on this cable is the preferred solution. Additionally, ensure the power supply is correctly set within the specified range to avoid reduced linear range, particularly when using barriers. The 3300 XL 8 mm probes are designed with a Viton® O-ring to seal differential pressure between the probe tip and case.
Your shipment for the Bently Nevada 330130-060-10-05 includes the following items:
1 x 3300 XL Extension Cable (6.0 meters, FluidLoc option)
1 x Roll of silicone tape (for connector protection, where applicable)
Q1: What is the exact length of the Bently Nevada 330130-060-10-05 cable?
A1: This model provides a length of 6.0 meters, which is equivalent to 19.7 feet.
Q2: What does the "FluidLoc" option on this extension cable do?
A2: The FluidLoc design prevents oil and other liquids from leaking out of the machine through the cable's interior, making it ideal for turbine applications.
Q3: Is the Bently Nevada 330130-060-10-05 suitable for use in hazardous areas?
A3: Yes. This cable carries CSA, ATEX, and IECEx approvals, certifying its suitability for use in potentially explosive atmospheres.
Q4: Can I use this cable with a 3300-series 5 mm probe?
A4: While it accepts 3300-series probes, its performance specifications are guaranteed when used solely with 3300 XL 8 mm components for optimal accuracy.
Q5: What is the shipping method for this product?
A5: All orders for the Bently Nevada 330130-060-10-05 are shipped via FedEx, UPS, or DHL to ensure fast and reliable delivery.
| Brand Name | |
| Model No. | 330130-060-10-05 |
| Product Type | Extension Cable |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
