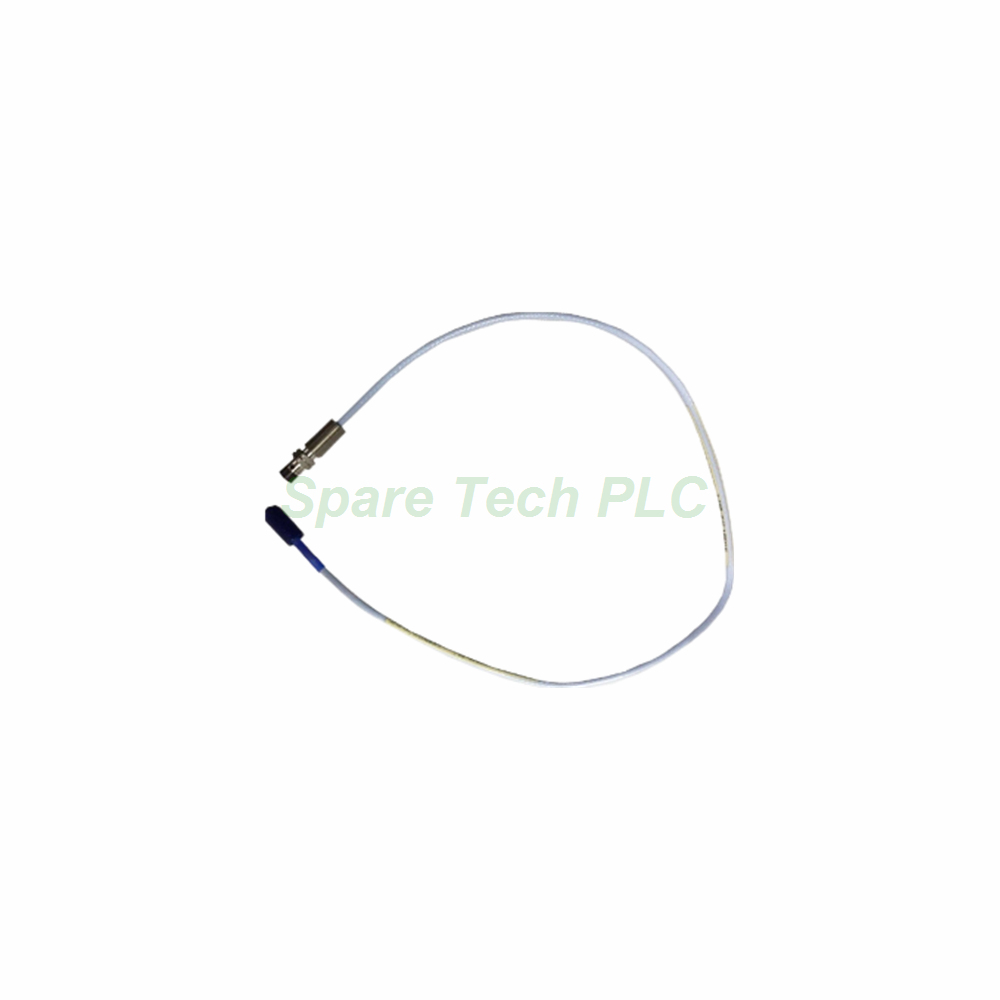

Bently Nevada 330106-05-30-15-02-05 Reverse Mount Probe

Product Introduction

The Bently Nevada 330106-05-30-15-02-05 is a specialized 3300 XL series 8 mm reverse mount probe. Unlike standard forward-mount designs, this reverse mount configuration allows installation from the back side of the machine casing. This makes it particularly useful for tight spaces where conventional probes cannot be accessed directly.

Manufactured in the U.S.A., this probe uses an M10x1 thread and comes without armor. It includes a 1.5-meter standard cable terminated with a miniature ClickLoc coaxial connector. Furthermore, the 05 approval option provides CSA, ATEX, and IECEx certifications, enabling safe operation in explosive atmospheres. For these reasons, this probe is a preferred choice for retrofit projects and compact turbomachinery.

Reverse Mount Configuration

M10x1 Thread Design
This probe features an M10x1 metric thread, which is commonly used in European and Asian machinery. The maximum thread engagement length is 15 mm, providing secure mounting in metric-threaded holes.

Total Length and Connector
The total length option is 15, corresponding to 1.5 meters (4.9 feet). This medium-length cable balances installation flexibility with signal integrity. The connector option 02 provides a miniature ClickLoc coaxial connector for quick and reliable connections with extension cables.

Technical Specifications

Linear Range and Scale Factor
This reverse mount probe delivers the same 2 mm (80 mils) linear range as other 3300 XL probes, starting from approximately 0.25 mm to 2.3 mm (10 to 90 mils). The incremental scale factor (ISF) is 7.87 V/mm (200 mV/mil) ± 5% for standard systems. Additionally, the deviation from best fit straight line (DSL) remains below ±0.025 mm (±1 mil) across 0°C to +45°C.

Electrical Characteristics
The nominal DC resistance (RPROBE) from center to outer conductor is 7.73 ± 0.50 Ω for this 1.5-meter probe. The standard cable uses 75Ω triaxial fluoroethylene propylene (FEP) insulation. For field wiring, we recommend 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable. The maximum field wiring length between the Proximitor sensor and monitor is 305 meters (1,000 feet).

Cable and Connector Materials
The standard cable uses FEP insulation, while an extended temperature range option uses PFA insulation for higher thermal resistance. The connector is gold-plated brass or gold-plated beryllium copper, ensuring low contact resistance and corrosion protection.

Environmental and Mechanical Ratings

Temperature Range
The standard probe operates from -52°C to +177°C. For higher temperatures, the extended range version supports up to +218°C at the tip and +260°C for the cable and connector. However, exposure below –34°C may shorten the pressure seal's service life.

Pressure and Humidity
A Viton® O-ring seals the differential pressure between the tip and the case. Moreover, the probe shows less than 3% change in average scale factor after 56 days at 93% relative humidity (IEC 68-2-3). This ensures reliable performance in humid or pressurized environments.

Tensile Strength
The probe case to probe lead offers a maximum tensile strength of 330 N (75 lbf). Meanwhile, the probe lead to extension cable connectors supports 270 N (60 lbf). This robust design prevents accidental disconnection during maintenance or vibration.

Installation and Mounting Guidelines

Thread Engagement
For the M10x1 thread, the maximum engagement length is 15 mm. First, clean the threaded hole thoroughly. Next, thread the probe carefully by hand until it seats. Finally, torque it to the recommended value (refer to standard 3300 XL torque charts).

Gap Setting
For radial vibration monitoring, set the gap to -9 Vdc, corresponding to approximately 1.27 mm (50 mils). Reverse mount probes require the same gap voltage as forward-mount versions, making system calibration consistent.

Packaging List

• 1 x Bently Nevada 330106-05-30-15-02-05 3300 XL 8 mm Reverse Mount Probe (1.5m cable)

• 1 x Miniature ClickLoc coaxial connector (pre-attached)

• 1 x Installation instruction sheet

Certificates and warranty documents are not included in this package.

Shipping Information

We ship this probe worldwide via FedEx, UPS, or DHL with tracking numbers provided. The product is carefully packed in anti-static and shock-absorbing materials. Please inspect the shipment upon arrival and contact us immediately if any issues are found.

Frequently Asked Questions (FAQ)

1. What is the difference between forward mount and reverse mount probes?
Forward mount probes are installed from the outside of the machine casing, while reverse mount probes are installed from the inside or back side. Reverse mount is useful when external access is limited or when the target is closer to the inner wall.

2. Can I use this probe with standard 3300 XL extension cables?
Yes, the ClickLoc connector is fully compatible with 3300 XL extension cables. Ensure the total system length (probe + extension) matches your Proximitor sensor's calibration.

3. What does the 05 agency approval include?
The 05 option includes CSA (Canada), ATEX (Europe), and IECEx (international) certifications for use in explosive gas and dust atmospheres. Please verify the temperature classification for your specific application.

4. Is armor available for this reverse mount probe?
Yes, you can order this probe with optional flexible stainless steel armor (AISI 302 or 304) with an FEP outer jacket. This provides additional protection against mechanical damage during installation.

5. What is the recommended torque for the M10x1 thread?
While the standard 3/8-24 torque values are 11.2 N•m (100 in•lbf), the M10x1 thread requires different torque settings. Please consult the 3300 XL installation manual for metric thread torque specifications.
