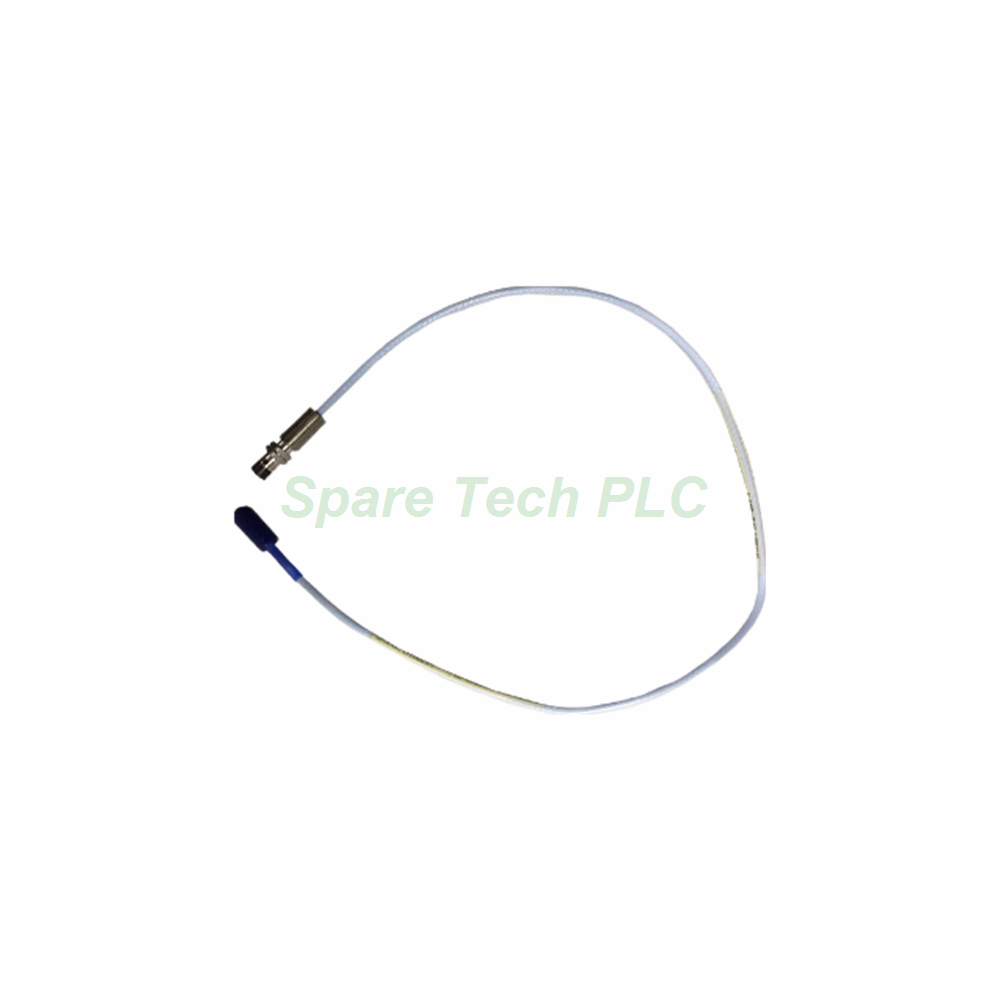

Bently Nevada 330106-05-30-15-02-00 Probe

Bently Nevada 330106-05-30-15-02-00 3300 XL 8 mm Reverse Mount Probes

Product Introduction

This Bently Nevada probe delivers precise displacement and vibration data for rotating machinery. The 330106-05-30-15-02-00 belongs to the proven 3300 XL series. Its reverse mount design suits tight installation spaces. Furthermore, the 8 mm probe tip uses polyphenylene sulfide material. The stainless steel case resists corrosion in harsh plants. The 1.5-meter cable ends with a Miniature ClickLoc connector. Therefore, technicians can install it quickly without special tools. This probe works with 3300 XL extension cables and proximitors. As a result, it forms a complete measurement chain for turbines and compressors.

Technical Specifications

The 330106-05-30-15-02-00 provides a nominal DC resistance of 7.73 Ω ± 0.50 Ω from center conductor to outer conductor. The cable uses 75 Ω triaxial fluoroethylene propylene insulation. Additionally, the total length reaches 1.5 meters (4.9 feet). The connector option is a Miniature ClickLoc coaxial connector (code 02). The probe case thread measures M10 x 1 with a maximum thread engagement of 15 mm. The probe tip material is polyphenylene sulfide (PPS). Meanwhile, the case material is AISI 303 or 304 stainless steel. The probe weighs 323 g/m (11.4 oz).

Mechanical and Environmental Parameters

The standard probe operates from -52°C to +177°C (-62°F to +350°F). However, exposure below -34°C (-30°F) may cause premature pressure seal failure. The probe seals differential pressure with a Viton O ring. Bently Nevada does not pressure test probes before shipment. Humidity testing shows less than 3% change in Average Scale Factor at 93% humidity for 56 days. The maximum tensile strength is 330 N from case to lead. Besides, the lead-to-connector joint holds 270 N. The connector uses gold-plated brass or gold-plated beryllium copper.

Installation Guide

First, verify the M10x1 thread matches the machine housing. Next, mount the probe so the tip sits at the correct gap. The reverse mount design allows access from the rear. Then, tighten the case to a maximum thread engagement of 15 mm. After that, connect the Miniature ClickLoc connector to the extension cable. Finally, route the cable away from hot surfaces and heavy vibration. Use the specified torque to avoid case damage. For instance, check the DC resistance at the connector to confirm integrity. This step helps identify cable damage before startup.

Packaging List

• 1 x Bently Nevada 330106-05-30-15-02-00 Probe

• 1 x Miniature ClickLoc Connector (pre-installed)

• 1 x Protective Caps Set

• 1 x Installation Reference Sheet

FAQ

Q1: What is the total length of this probe?
A: The 330106-05-30-15-02-00 includes a 1.5-meter (4.9-foot) cable.

Q2: Which connector type does this model use?
A: It uses a Miniature ClickLoc coaxial connector, option code 02.

Q3: What is the probe DC resistance?
A: The nominal resistance is 7.73 Ω ± 0.50 Ω.

Q4: What is the maximum operating temperature?
A: The standard probe handles -52°C to +177°C.

Q5: Does the package include a certificate?
A: No, the packaging list contains only the probe, connector, caps, and reference sheet.
