Bently Nevada 31000-28-05-15-030-02-02 Housing

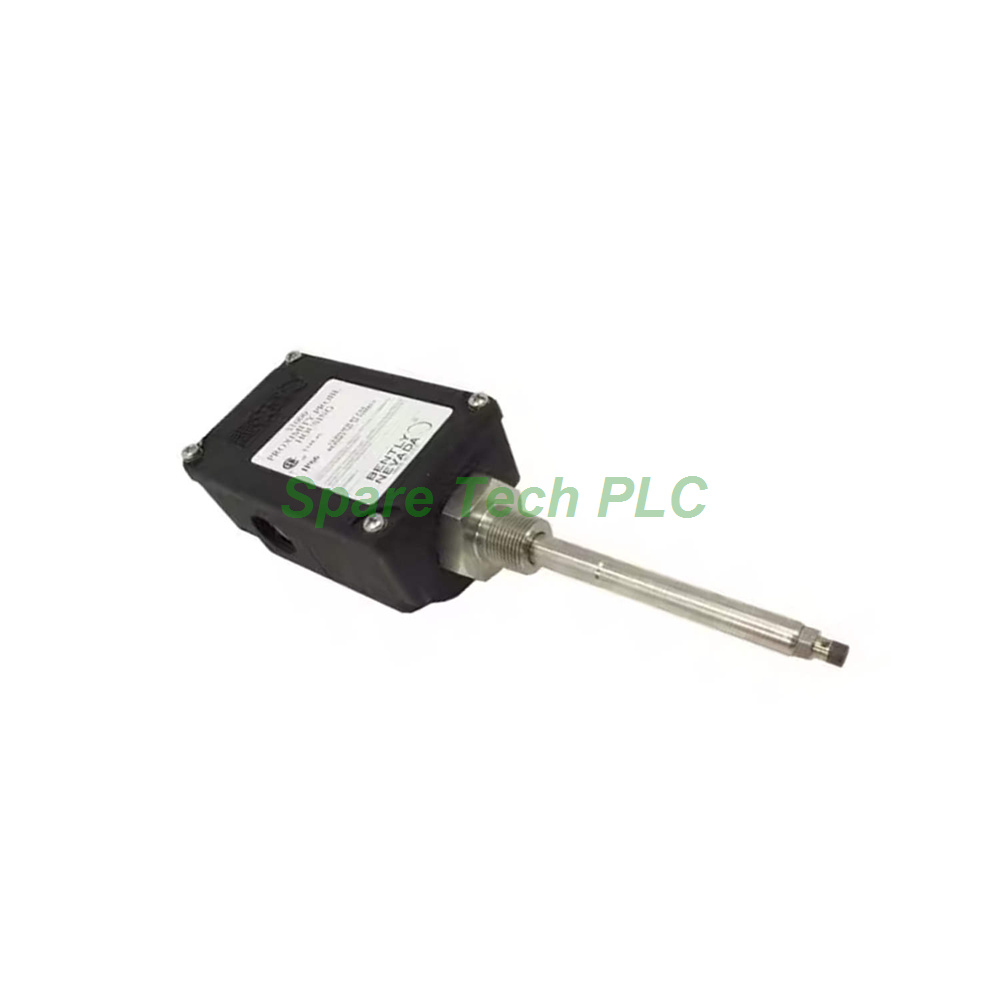

Bently Nevada 31000-28-05-15-030-02-02 Proximity Probe Housing

Product Introduction

The 31000-28-05-15-030-02-02 forms part of the Bently Nevada 31000 series of proximity probe housings. This assembly protects 3300 XL 8 mm probes in harsh plant conditions. Specifically, it seals differential pressure between the probe tip and the housing main body.

Furthermore, this variant includes a 1.5 in standoff adapter and a 3.0 in probe penetration depth. These options suit thick machine casings and recessed mounting points. Additionally, the 0.5 m (20 in) probe cable keeps wiring compact.

The housing carries multiple approvals for global deployment. Its glass-reinforced PPS body contains conductive fibers for electrostatic dissipation. Meanwhile, stainless steel sleeves and a Neoprene O-ring deliver long service life.

Technical Specifications

The 31000-28-05-15-030-02-02 supports 3300 XL 8 mm probes with the multiple-approvals connector option. Its probe cable length measures 0.5 m (20 in). Moreover, the standoff adapter option is 15 = 1.5 in, and the probe penetration option is 030 = 3.0 in.

The fittings option provides two 3/4-14 NPT fittings and one plug. In addition, the mounting thread option is 02 = 3/4-14 NPT, which is required when ordering a standoff adapter option.

Key parameters include:

• Probe Option: 28 = 3300 XL 8 mm probe, multiple approvals

• Cable Length: 05 = 0.5 m (20 in)

• Standoff Adapter: 15 = 1.5 in

• Probe Penetration: 030 = 3.0 in

• Fittings: 02 = Two 3/4-14 NPT fittings, one plug

• Mounting Thread: 02 = 3/4-14 NPT

Mechanical and Environmental Parameters

The housing material is glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers. Besides, the sleeve material and retaining chain use AISI 304 stainless steel. The outer sleeve and exterior screws use AISI 303 stainless steel, and the O-ring material is Neoprene.

Protection ratings include Type 4X certification by CSA and IP66 verification by SC115582-1 (e) 106. Furthermore, CENELEC standard EN50014 covers electrostatic dissipation for hazardous areas.

The temperature rating spans -51°C to +105°C (-60°F to +221°F). The typical weight is 1.2 kg (2.6 lb). The recommended torque for the retaining nut is 29.4 N·m (260 in·lb).

Housing impact strength is certified by BASEEFA for two separate 4 Joule impacts at -39°C and at 115°C. CSA also verified samples to withstand a 7 Joule impact at ambient room temperature. During a strength test, the housing supported 912 N placed about 38 mm from the unsupported end.

Installation Guide

First, confirm that the 1.5 in standoff adapter matches your casing thickness. The 3.0 in penetration depth should reach the probe target correctly. Next, thread the 3/4-14 NPT mounting into the machine wall.

Then, install the 3300 XL 8 mm probe through the housing assembly. The internal Viton O-ring seals the probe case, while the Neoprene O-ring seals the sleeve-to-housing joint. After that, tighten the retaining nut to 29.4 N·m (260 in·lb).

Finally, connect the 0.5 m probe cable to your monitoring system and close unused ports with the supplied plug. However, note that the plastic housing is not designed to resist internal or external pressure. Probes are not pressure tested before shipment, so contact the custom design department if you need a pressure seal test.

Packaging List

• 1 × Bently Nevada 31000-28-05-15-030-02-02 Proximity Probe Housing

• 1 × 1.5 in standoff adapter

• 1 × AISI 304 stainless steel sleeve and retaining chain

• 1 × Neoprene O-ring

• 1 × Plug

• 1 × Installation guide

FAQ

Q1: What probe type does the 31000-28-05-15-030-02-02 support?
A1: This housing supports 3300 XL 8 mm probes with the multiple-approvals connector option.

Q2: Why does this model include a standoff adapter?
A2: The 1.5 in standoff adapter and 3.0 in penetration suit thick casings and recessed targets.

Q3: What is the temperature range of this probe housing?
A3: The housing operates from -51°C to +105°C (-60°F to +221°F) for reliable performance.

Q4: How many fittings does this housing provide?
A4: It includes two 3/4-14 NPT fittings and one plug for flexible conduit routing.

Q5: How is the 31000-28-05-15-030-02-02 shipped?
A5: We ship this product via Fedex, UPS, or DHL with tracking for fast delivery.
