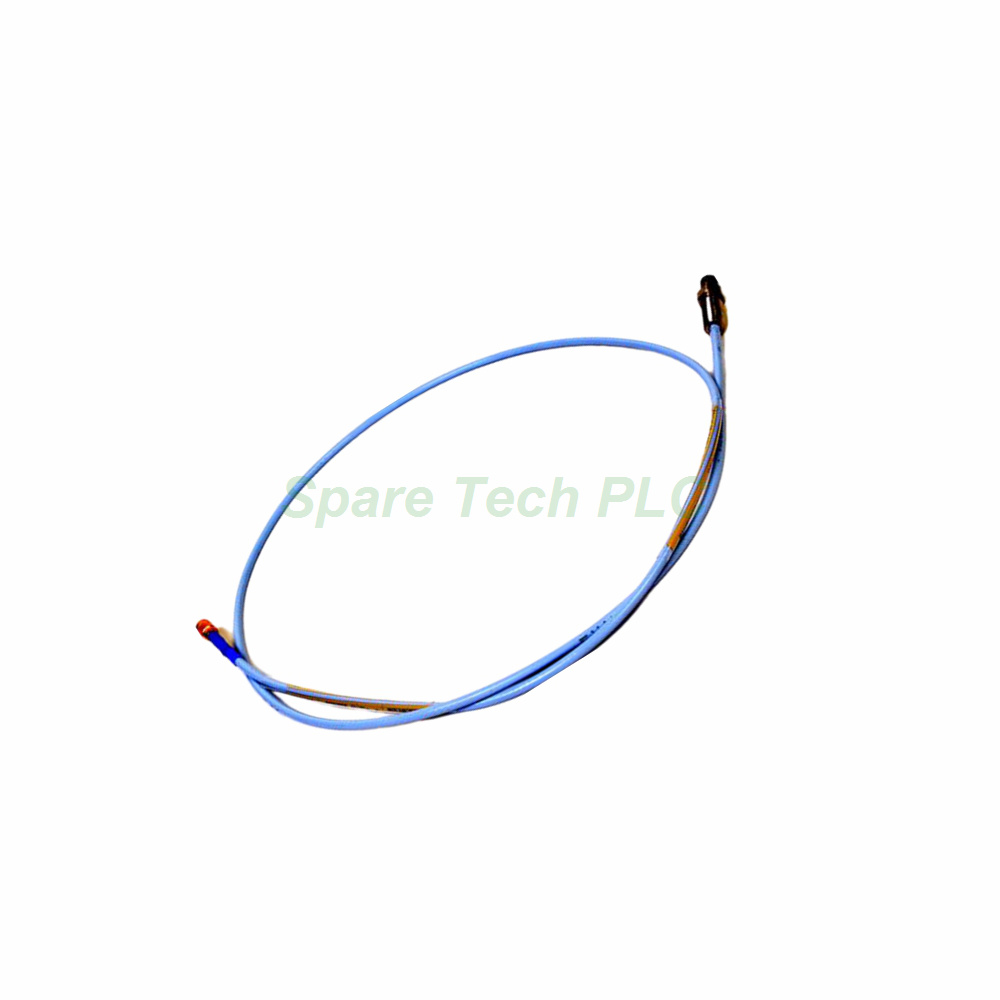

Bently Nevada 3300 XL 8 mm Reverse Mount Probe
Product Introduction
The Bently Nevada 330105-02-12-05-02-CN provides precise vibration and position measurements. This sensor is part of the trusted 3300 XL series. It is a reverse mount design, ideal for installations where space is limited. This model uses a 3/8-24 UNF thread for secure mounting. Its robust construction ensures long-term stability in harsh industrial environments.
Technical Specifications
The Bently Nevada 330105-02-12-05-02-CN offers several key technical features for accurate data acquisition.
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Case Thread: 3/8-24 UNF
Maximum Thread Engagement: 0.563 inches
Connector Option: Miniature ClickLoc coaxial connector (Code 02)
Total Length Option: 0.5 meters (7.45 ± 0.50 meters)
Nominal DC Resistance (RPROBE): 7.45 ± 0.50 Ω
Agency Approval: Country Specific (CN)
Cable Type: 75Ω triaxial, FEP insulated (standard)
Connector Material: Gold-plated brass or beryllium copper
Weight: 323 g/m (11.4 oz)
Mechanical and Environmental Ratings
This model withstands a wide range of operating conditions. Therefore, it suits many different machine monitoring tasks.
Operating Temperature (Standard Probe): -52°C to +177°C (-62°F to +350°F)
Storage Temperature (Standard Probe): -52°C to +177°C
Pressure Capability: Seals differential pressure with a Viton O-ring.
Relative Humidity: Less than 3% change in ASF after 56 days at 93% humidity (IEC 68-2-3).
Tensile Strength: 330 N (75 lbf) from case to lead; 270 N (60 lbf) at connectors.
Furthermore, the probe demonstrates high resistance to magnetic fields. For instance, at a gap of 10, the probe's output voltage is only 0.0004 Mil pp/Gauss. Moreover, it maintains stable performance with minimal interference.
Installation and Mounting Guide
Proper installation of the 3300 XL probe ensures accurate readings. First, verify the thread size as 3/8-24 UNF. Next, ensure the target surface is clean and within the specified gap range. Moreover, never exceed the maximum thread engagement of 0.563 inches. The reverse mount design requires specific clearance behind the probe tip. Finally, connect the Bently Nevada 330105 to the appropriate extension cable using the ClickLoc connector. Always refer to your machine's manual for the exact mounting position.
Packaging List
Shipping Information
All orders are shipped via FedEx, UPS, or DHL. Tracking numbers will be provided upon dispatch.
Frequently Asked Questions
1. What is the thread size of the Bently Nevada 330105-02-12-05-02-CN?
This probe features a 3/8-24 UNF thread for standard mounting applications.
2. What is the total length of this 3300 XL probe?
The total length of the 330105-02-12-05-02-CN is 0.5 meters, with a specified tolerance of ±0.50 meters.
3. What connector type does this model use?
This unit includes a miniature ClickLoc coaxial connector, which ensures a secure and reliable connection.
4. What is the probe tip made of?
The probe tip is constructed from Polyphenylene sulfide (PPS), providing excellent durability and insulation.
5. What is the maximum operating temperature for this sensor?
The standard version of this probe operates from -52°C to +177°C (-62°F to +350°F).
