Bently Nevada 32000-29-05-10-072-07-02 Probe Housing

32000-29-05-10-072-07-02 | Bently Nevada Metric Probe Housing

Product Introduction

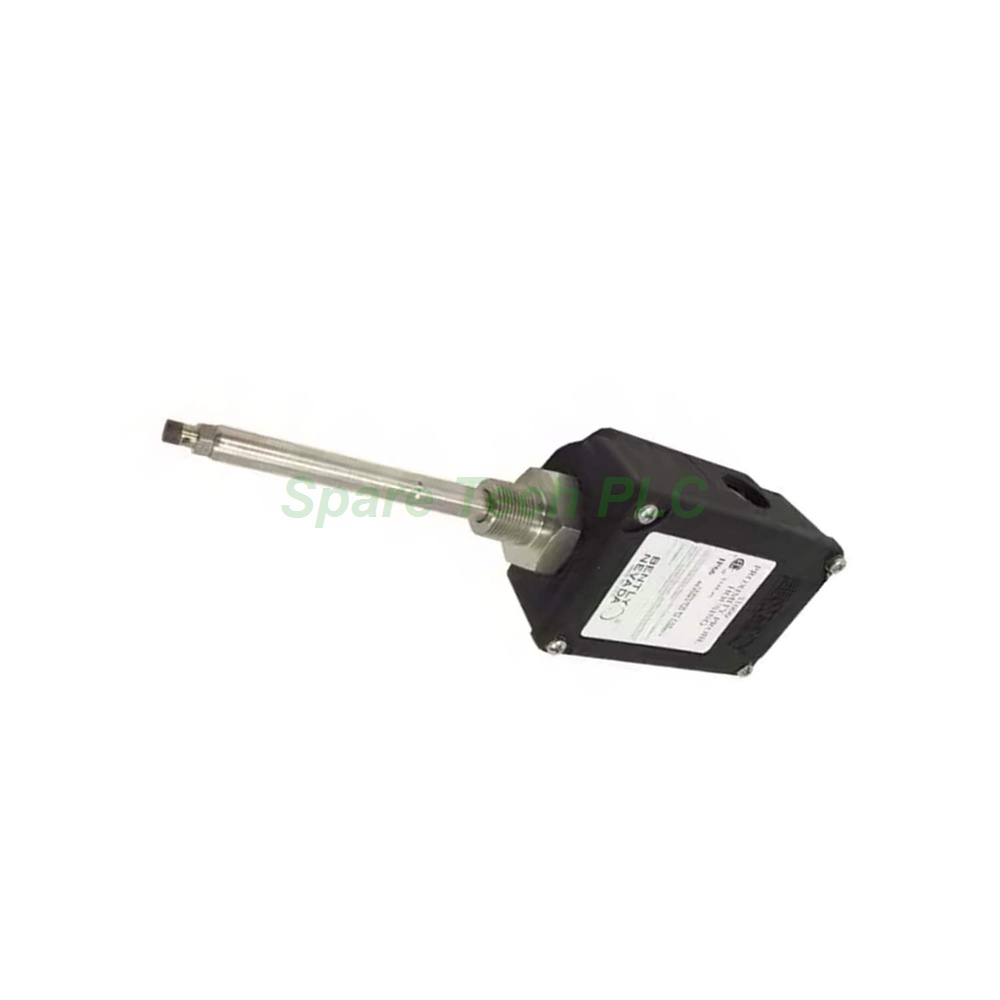

The Bently Nevada 32000-29-05-10-072-07-02 is a precision-crafted metric proximity probe housing assembly built for external mounting applications. This unit accommodates 3300 XL 8 mm proximity probes equipped with a connector protector, which safeguards the connection point from contamination and mechanical stress.

This housing design enables technicians to access the probe and its extension cable without disassembling the machinery. As a result, maintenance tasks such as gap adjustments or probe replacements become significantly faster and more cost-effective. The assembly adheres to the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings, ensuring compatibility with critical rotating machinery.

Technical Specifications

The Bently Nevada 32000-29-05-10-072-07-02 delivers a precise configuration tailored for specific installation requirements. Each digit in the model number defines a critical parameter:

• Probe Option (29): Supports 3300 XL 8 mm probe systems with a connector protector for enhanced reliability.

• Probe Cable Length (05): 0.5 meters (20 inches).

• Standoff Adapter (10): 100 mm offset for proper probe positioning relative to the machine casing.

• Probe Penetration (072): 72 mm insertion depth through the housing.

• Fittings (07): Includes one PG21 x M20 fitting and two plugs for flexible conduit connections.

• Mounting Thread (02): 3/4-14 NPT (required when using the standoff adapter).

Furthermore, the housing provides outstanding environmental protection. Its Type 4X certification from the Canadian Standards Association (CSA) guarantees corrosion resistance and weatherproof performance. The IP66 rating, verified by SC115582-1 (e) 106, ensures complete protection against dust and powerful water jets. Additionally, the housing meets CENELEC standard EN50014 for electrostatic dissipation of plastic materials in hazardous locations.

Mechanical and Environmental Ratings

The 32000-29-05-10-072-07-02 is manufactured from high-performance materials to withstand severe industrial conditions. The housing body uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers, which offers exceptional strength and chemical resistance.

For mechanical durability, the sleeve and retaining chain are constructed from AISI 304 stainless steel, while the outer sleeve and exterior screws use AISI 303 stainless steel. The Neoprene® O-ring provides a reliable seal against moisture and contaminants, maintaining the integrity of the internal components.

Impact resistance is a key feature of this housing. BASEEFA certified it to endure two separate 4 Joule (3.0 ft·lb) impacts at both -39°C (-38°F) and 115°C (239°F). Moreover, CSA verified that housing and cover samples withstand a 7 Joule (5.2 ft·lb) impact at ambient room temperature, ensuring robustness during installation and operation.

The operating temperature range spans from -51°C to +105°C (-60°F to +221°F) , making this unit suitable for a broad spectrum of applications, from cold outdoor environments to high-temperature machinery compartments.

Installation Guidance

Proper installation of the Bently Nevada 32000-29-05-10-072-07-02 requires attention to several key steps. Begin by verifying that the mounting surface has the correct 3/4-14 NPT thread, as this is mandatory when using the 100 mm standoff adapter.

Next, route the probe cable through the housing and secure it using the PG21 x M20 fitting. This fitting accommodates standard conduit sizes and provides a robust strain relief. Adjust the probe to achieve the 72 mm penetration depth, then lock the 100 mm standoff adapter in place to maintain the correct gap.

Finally, connect the system to a compatible Bently Nevada proximitor or monitoring system. Always check the gap voltage before final tightening to ensure the probe operates within its linear range for accurate vibration measurements.

Packaging and Shipping

Each order of the 32000-29-05-10-072-07-02 includes the following components:

• 1 x Metric proximity probe housing assembly (complete with probe option configuration)

• 1 x Connector protector for the 3300 XL 8mm probe

• 1 x Standoff adapter (100 mm)

• 1 x PG21 x M20 fitting and two plugs

• Mounting hardware as specified

All shipments are dispatched via FedEx, UPS, or DHL to ensure fast and reliable delivery worldwide.

Frequently Asked Questions

Q1: What is the purpose of the connector protector in this model?
A1: The connector protector safeguards the probe connection from dust, moisture, and mechanical damage, ensuring reliable signal transmission.

Q2: Can I use this housing without the standoff adapter?
A2: No, the 3/4-14 NPT mounting thread is required when ordering the standoff adapter, as indicated by option code 02.

Q3: What is the difference between the 72mm and 135mm penetration options?
A3: The penetration depth determines how far the probe extends through the housing, which must match the machine casing thickness and installation requirements.

Q4: Is this housing suitable for hazardous area installations?
A4: Yes, it meets CENELEC standard EN50014 for electrostatic dissipation of plastic materials used in hazardous locations.

Q5: How do I adjust the probe gap after installation?
A5: You can access the probe externally through the housing without disassembling the machine, allowing convenient gap adjustments and maintenance.
