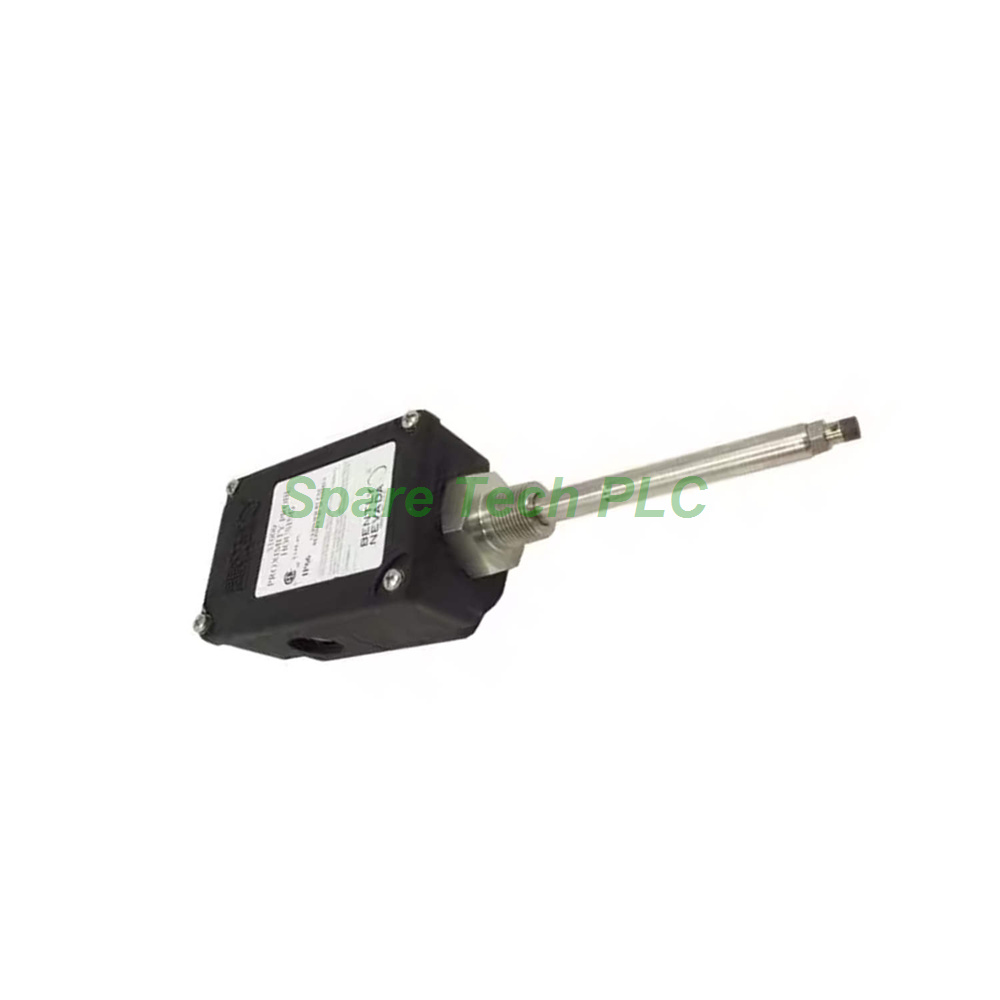

Bently Nevada 31000-28-10-00-146-00-02 3300 XL Probe Housing

Bently Nevada 31000-28-10-00-146-00-02 Proximity Probe Housing

Product Introduction

The Bently Nevada 31000-28-10-00-146-00-02 is a high-performance proximity probe housing assembly from the trusted 31000 series. This model integrates a 3300 XL 8 mm probe with multiple approvals into a durable, glass-reinforced PPS thermoplastic housing. Specifically, it is designed for externally mounted applications where measuring shaft vibration and position is critical. Furthermore, its robust construction and high protection ratings make it an excellent choice for harsh industrial environments.

Technical Specifications

This section details the core technical attributes of the 31000-28-10-00-146-00-02.

• Housing Series: This unit belongs to the 31000 series of proximity probe housings.

• Probe Option: The suffix code 28 indicates that this assembly includes a 3300 XL 8 mm probe with multiple approvals.

• Probe Cable Length: Option 10 signifies a probe cable length of 1.0 meter (39 inches) .

• Standoff Adapter: The standoff adapter option is 00, which means no standoff adapter is included.

• Probe Penetration (D Dimension): The probe penetration length is set to 146, which equals 14.6 inches.

• Fitting Option: The -00 option indicates that this model ships without fittings.

• Mounting Thread: This model uses a 3/4-14 NPT mounting thread, designated by option 02. This is required when no standoff adapter is ordered.

Mechanical and Environmental Parameters

Understanding the physical limits and environmental tolerances of the Bently Nevada 31000-28-10-00-146-00-02 is essential for proper installation.

• Housing Material: The housing is constructed from glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers. This material provides excellent strength and chemical resistance.

• Sleeve and Hardware: The sleeve and retaining chain are made of AISI 304 stainless steel, while the outer sleeve and exterior screws use AISI 303 stainless steel. The O-ring material is Neoprene.

• Protection Ratings: This housing boasts a Type 4X rating certified by CSA and an IP66 rating verified by SC115582-1 (e) 106. Additionally, it meets CENELEC standard EN50014 for electrostatic dissipation in hazardous areas.

• Temperature Rating: The operating temperature range is -51°C to +105°C (-60°F to +221°F) .

• Weight: The assembly typically weighs 1.2 kg (2.6 lb) .

• Housing Strength: The housing can support a load of 912 N (205 lb) placed approximately 38 mm from the unsupported end. Furthermore, it is certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C and at 115°C. CSA also verified its ability to withstand a 7 Joule (5.2 ft·lb) impact at ambient temperature.

• Recommended Torque: The recommended torque for the retaining nut is 29.4 N·m (260 in·lb) .

Installation Guidance

Proper installation ensures the longevity and accuracy of the 31000-28-10-00-146-00-02.

• Mounting: Secure the housing to the machine using the 3/4-14 NPT mounting thread. Ensure the mounting surface is clean and flat.

• Torque: Apply the recommended torque of 29.4 N·m (260 in·lb) to the retaining nut to ensure a proper seal and secure fit.

• Sealing Consideration: The plastic housing is certified to seal against hose-directed water according to NEMA 4X and IP66 standards. However, it is not designed to resist internal or external pressure. Probes are not pressure tested prior to shipment.

• Cable Management: Use appropriate fittings and seals to maintain the IP66 and Type 4X integrity of the housing.

What's in the Box

When you purchase the Bently Nevada 31000-28-10-00-146-00-02, your shipment will include the following items:

• One (1) Bently Nevada 31000 proximity probe housing assembly (Model: 31000-28-10-00-146-00-02).

• The assembly includes the PPS housing body, cover, AISI 304 stainless steel sleeve, retaining chain, Neoprene O-rings, and the 3300 XL 8 mm reverse mount proximity probe.

Frequently Asked Questions (FAQ)

Q1: What type of probe is included with the Bently Nevada 31000-28-10-00-146-00-02?
A: This assembly includes a 3300 XL 8 mm probe with multiple approvals, making it suitable for use in various industrial and hazardous environments.

Q2: What protection ratings does the 31000-28-10-00-146-00-02 housing offer?
A: The housing is rated Type 4X by CSA and IP66, providing excellent protection against dust, water ingress, and corrosion. It is also certified for electrostatic dissipation in hazardous areas.

Q3: Does the 31000-28-10-00-146-00-02 come with a standoff adapter?
A: No, the suffix code 00 for the standoff adapter indicates that this model does not include one. The probe is mounted directly to the housing.

Q4: What is the probe penetration length for the 31000-28-10-00-146-00-02 model?
A: This model has a probe penetration (D dimension) of 14.6 inches, providing a deep insertion depth for various machine configurations.

Q5: What is the recommended torque for installation?
A: The recommended torque for the retaining nut is 29.4 N·m (260 in·lb) . Applying the correct torque is important to ensure a proper seal and prevent damage to the housing.
