Bently Nevada 21000-16-05-00-105-03-02 Probe Housing

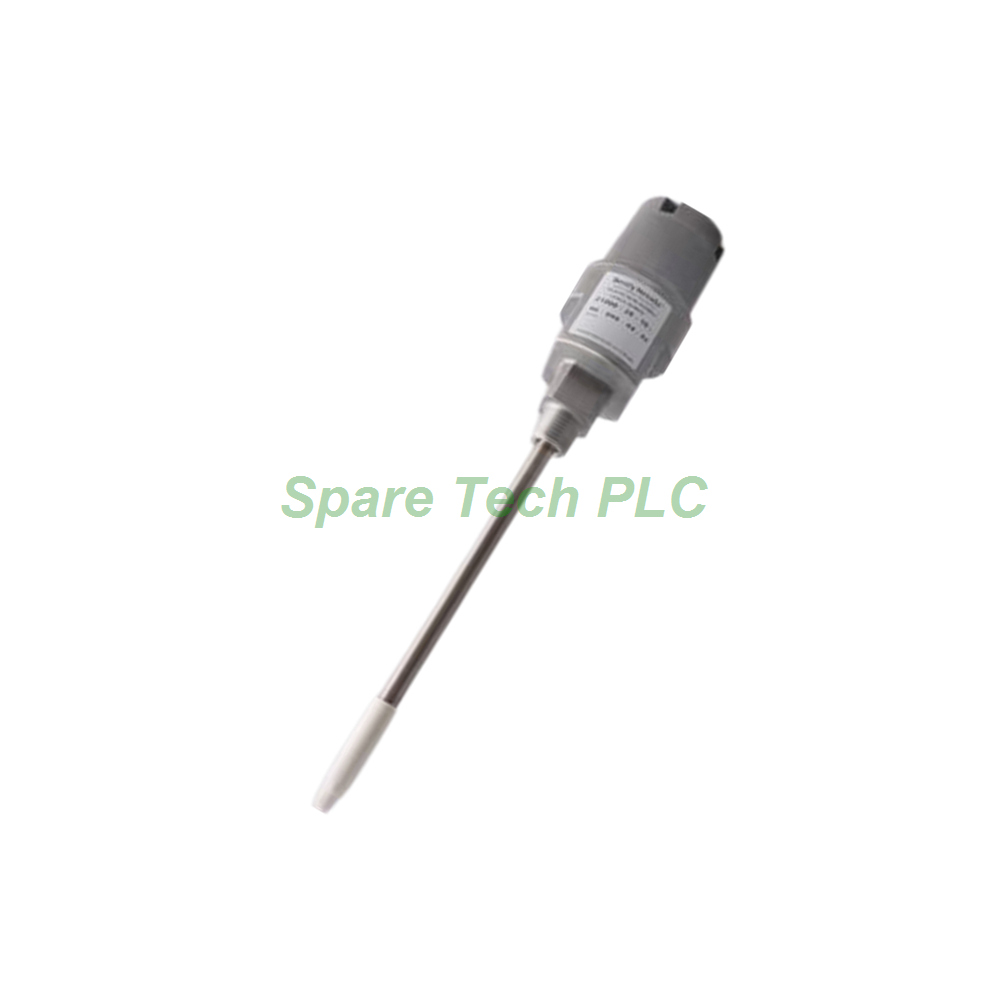

Bently Nevada 21000 Proximity Probe Housing Assembly

Product Introduction

The 21000-16-05-00-105-03-02 belongs to the Bently Nevada 21000 series. This series covers proximity probe housing assemblies for rotating machinery protection. Specifically, the assembly holds a reverse mount proximity probe. It also provides a dome cover, threaded conduit ports, and a probe sleeve. The housing protects the probe in harsh industrial environments.

Furthermore, this model supports the 3300 XL 8 mm probe with a 0.5 m cable. The 3/4-14 NPT mounting thread ensures stable installation. Meanwhile, the aluminum body with a 304 stainless steel sleeve offers durability. The assembly meets API 670 requirements for externally mounted probe housings.

Technical Specifications

The 21000-16-05-00-105-03-02 offers a precise configuration for many monitoring tasks. First, the probe option code 16 means a 3300 XL 8 mm probe with connector. Next, the cable length option 05 provides a 0.5 m (20 in) cable. In addition, the standoff adapter option is 00, meaning no standoff adapter. The probe penetration option D is 105, which equals 10.5 in.

Moreover, the adjustment range of probe penetration option D is 13 mm (± 0.5 in). For penetration lengths between 1.0 and 2.0 inches, counter boring the machine case may be needed. This step reduces probe side view or rear view effects. If the total penetration (C plus D) exceeds 300 mm (12 in), add sleeve support near the probe. This support prevents resonance from occurring.

Mechanical and Environmental Parameters

The housing uses an aluminum body with a 304 stainless steel sleeve. The mounting thread is 3/4-14 NPT. The fittings option -03 includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets. These grommets fit cable sizes from 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches.

Additionally, the maximum (C) + (D) dimension with visible probe is 13.5 in (34.3 cm). For a 0.5 m cable, the probe P/N and S/N are not visible. The typical weight is 1.1 kg (2.4 lb) without fittings. The assembly is rated for hazardous areas with CSA approvals. It meets Class I Divisions 1 and 2 Groups C and D, Class II Divisions 1 and 2 Groups E, F, and G, and Class III. The enclosure type is 4. Temperature ratings include T5 at -50 °C to +40 °C and T4 at -50 °C to +80 °C.

Installation Guide

Proper installation ensures reliable performance. First, verify the machine case has the correct thread for the 3/4-14 NPT mounting. Next, insert the probe sleeve into the housing body. Then, connect the 3300 XL 8 mm probe to the cable. After that, screw the dome cover onto the housing body. Finally, tighten the cable seal grip to secure the cable.

Besides, use the provided reducer if the conduit port requires a 1/2-14 NPT connection. For hazardous areas, follow drawing 140979 for non-incendive circuits. Meanwhile, keep the probe penetration within the specified adjustment range. If the total penetration exceeds 300 mm, add sleeve support. This action prevents resonance and maintains signal accuracy.

Packaging List

The package includes the following items. One 21000-16-05-00-105-03-02 proximity probe housing assembly. One 3300 XL 8 mm probe with connector. One 0.5 m (20 in) probe cable. One dome cover. One probe sleeve. One thread seal. One 3/4-14 NPT plug. One 3/4-14 to 1/2-14 NPT reducer. One cable seal grip with grommets. O-rings as required.

FAQ

What is the main function of this assembly?
The 21000-16-05-00-105-03-02 houses and protects a proximity probe. It ensures accurate measurement of shaft vibration and position.

Which probe does this model include?
This model includes a 3300 XL 8 mm probe with a 0.5 m (20 in) cable. The probe option code is 16.

What is the mounting thread size?
The mounting thread is 3/4-14 NPT. This size fits many standard machine casings.

Can I use this assembly in hazardous areas?
Yes, the housing carries CSA approvals for explosion-proof applications. It meets Class I, II, and III requirements.

How is this product shipped?
We ship this product via Fedex, UPS, or DHL. Each unit is packed in factory original packaging.
