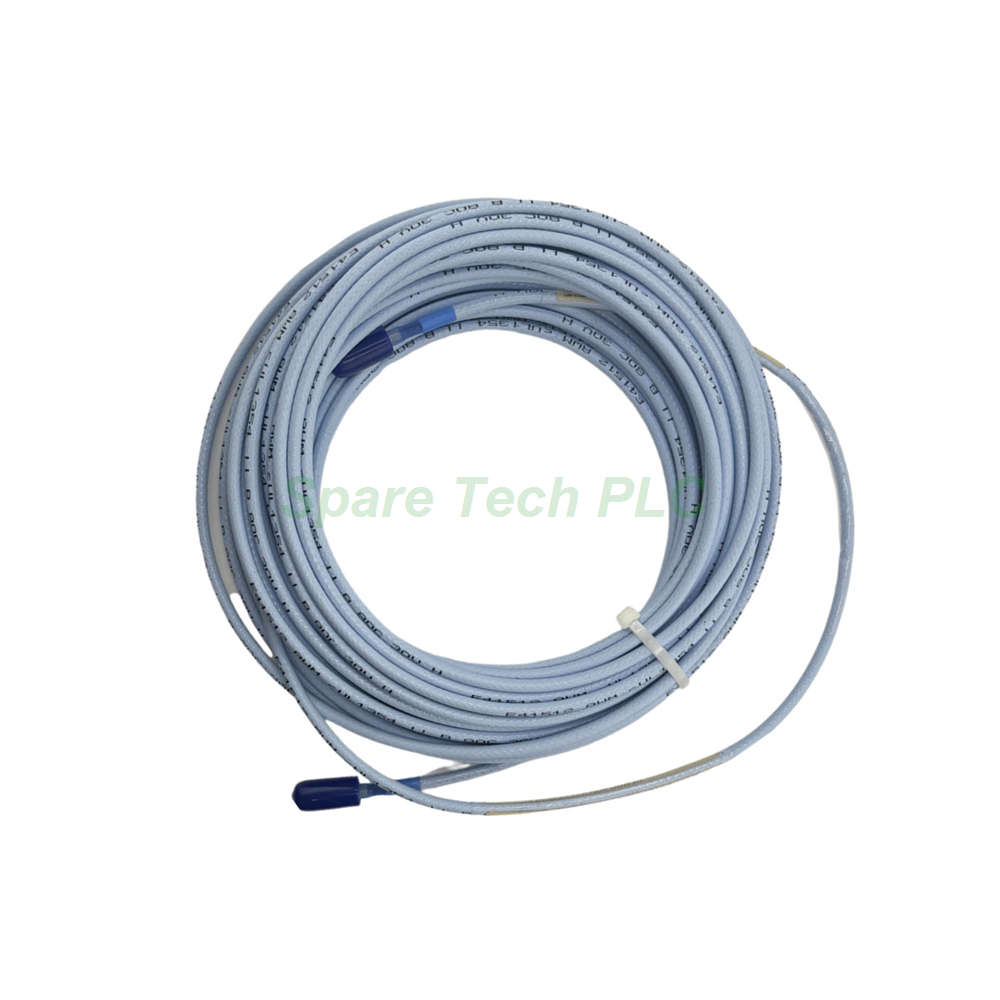

Bently Nevada 142238-120-00-CN Proximity Probe Cable
Reliable Extension for Vibration Monitoring with China Approvals
The Bently Nevada 142238-120-00-CN proximity probe cable ensures accurate signal transmission. This cable measures 12 meters (120 decameters) in total length. It connects a 2-meter 3300 or 3300 XL probe to the 170133-140-XX 14-meter Internal Proximitor Module.
Manufacturers use this cable for turbine, compressor, and pump vibration monitoring. The standard connector option (00) provides a secure fit. Additionally, the “CN” agency approval covers country-specific requirements for China. A quick reference guide and field notification letter are available in the download section. Therefore, this cable suits facilities operating under Chinese regulatory standards.
Key Technical Specifications
The Bently Nevada 142238-120-00-CN operates as a passive extension cable. It does not require external power. The cable’s impedance matches 3300 series proximity probes. This match reduces signal loss over long runs.
Specifically, the total length of 12 meters (120 dm) includes the probe’s own cable. You must pair it with a 2-meter probe and the 170133-140-XX module. The standard cable option (00) uses a durable PVC jacket. This jacket resists oil, water, and mild chemicals.
Furthermore, the CN approval option is country-specific for China. It includes documentation such as the quick reference guide and field notification letter. These documents help you meet local compliance requirements. The operating temperature range remains -20°C to +85°C.
Mechanical and Environmental Parameters
The cable’s outer diameter is 4.5 mm. The conductor uses 24 AWG stranded copper. This design offers flexibility and vibration resistance.
Minimum bend radius: 25 mm
Tensile strength: 100 N maximum
IP rating (mated): IP67
Flammability rating: VW-1
Meanwhile, the connector shell is nickel-plated brass. The contacts are gold-plated for corrosion resistance. This construction ensures reliable performance in harsh industrial settings.
Frequently Asked Questions (FAQ)
Can this 142238-120-00-CN cable work with non-Bently probes?
No. It is designed specifically for 3300 and 3300 XL probes. Other probes may have different impedance values.
What makes the CN approval option different from the standard 05 approval?
The CN option is country-specific for China. It includes a quick reference guide and a field notification letter for local compliance. The 05 option covers multiple international approvals like ATEX and CSA.
What is the total system length when using this cable?
The total equals the 2-meter probe plus this 12-meter cable. That makes 14 meters, matching the 170133-140-XX module perfectly.
Is this cable compatible with both 5 mm and 8 mm 3300 XL probes?
Yes. Both the 5 mm and 8 mm 3300 XL probes with 2-meter leads work without any issues.
