Allen-Bradley 1747-FC Ferrite Collar SLC 500 EMI Suppression

1747-FC Allen‑Bradley Ferrite Collar for EMI/RFI Suppression

Product Introduction

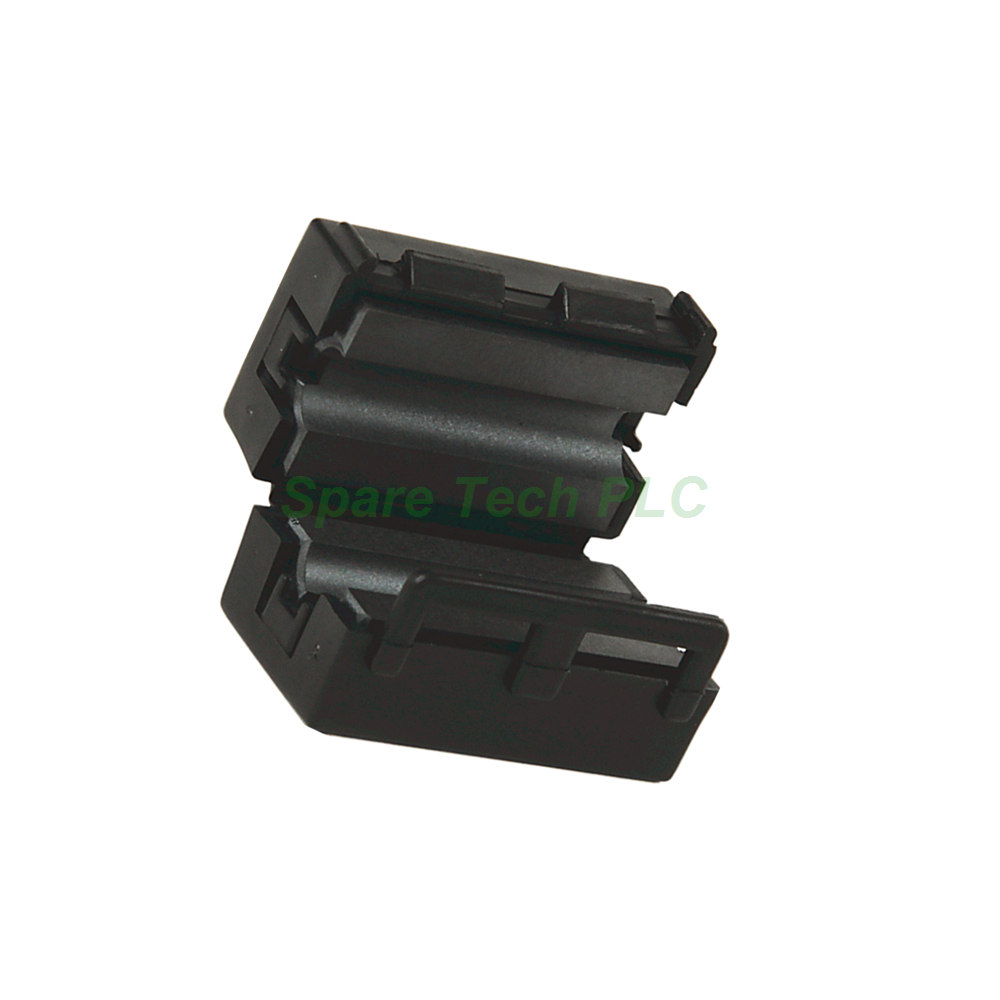

The 1747-FC ferrite collar from Allen‑Bradley provides essential noise suppression for SLC 500 communication cables. This small but critical accessory reduces electromagnetic interference (EMI) and radio frequency interference (RFI) on RS‑232 connections. Electrical noise from motors, drives, and other industrial equipment can corrupt data signals, leading to communication errors or controller faults. The 1747-FC effectively attenuates this unwanted noise, preserving signal integrity.

This collar works with standard RS‑232 cables used in SLC 500 systems. Specifically, it supports controllers such as the 1747‑L541, 1747‑L542, and 1747‑L543. Its snap‑on design makes installation quick and tool‑free. For optimal performance, place it where the cable exits the module. This position maximizes its noise‑filtering effectiveness.

Technical Specifications

The 1747-FC ferrite collar features a straightforward yet effective design. Its material composition and construction ensure reliable noise suppression across a wide frequency range.

Key technical attributes include:

• Manufacturer: Allen‑Bradley

• Series: SLC 500

• Product Type: Ferrite Collar

• Primary Function: EMI/RFI Suppression

• Compatible Cable: RS‑232 Cable

• Compatible Controllers: 1747‑L541, 1747‑L542, 1747‑L543, and other SLC 500 controllers

• Material: Ferrite core with plastic housing

• Placement: Where the cable exits the module

• Compliance: European EMC Directive

• Installation Complexity: Low (snap‑on design)

Furthermore, the plastic housing provides durability while keeping the collar lightweight. Its compact size does not interfere with cable routing or panel layout.

Compliance and Safety Standards

The 1747-FC ferrite collar complies with the European EMC Directive. This compliance confirms its effectiveness in reducing electromagnetic emissions and improving immunity in industrial environments.

Using this collar helps your SLC 500 system meet EMC requirements for CE marking. It also reduces the risk of nuisance trips or communication dropouts caused by external interference. For installations in regulated markets, the 1747-FC provides a simple and cost‑effective solution for EMC compliance.

Installation Guidelines

Installing the 1747-FC ferrite collar requires no special tools or technical expertise. Follow these simple steps for proper installation:

First, identify the RS‑232 cable connected to your SLC processor or communication module. Next, open the collar by pressing the snap‑lock mechanism. Place the collar around the cable at the point where it exits the module. Then, close the collar firmly until you hear a click. This secures it in place.

For best results, position the 1747-FC as close as possible to the module's cable exit point. This location captures the interference before it travels along the cable. Additionally, you can install multiple collars on the same cable for enhanced suppression if needed.

Finally, verify that the collar does not slide along the cable. A snug fit ensures consistent noise attenuation. If you experience communication issues after installation, check the collar's position and reseat it if necessary.

Packaging and Shipping

Your order for the 1747-FC ferrite collar includes the following items in the package:

• One Allen‑Bradley 1747-FC ferrite collar

• Protective anti‑static packaging

We ship all orders through reliable global carriers to ensure safe and timely delivery. Specifically, our shipping partners include:

• FedEx

• UPS

• DHL

Please note that the package does not include RS‑232 cables, mounting hardware, or installation manuals. Additionally, certificates of conformity and warranty documents are not included with this listing. For bulk orders or expedited shipping, please contact our sales team.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the 1747-FC ferrite collar?
A1: The 1747-FC suppresses EMI and RFI noise on RS‑232 cables. This protects SLC 500 controllers from communication errors caused by electrical interference.

Q2: Which controllers are compatible with this ferrite collar?
A2: This collar works with SLC 500 controllers, specifically the 1747‑L541, 1747‑L542, and 1747‑L543. It also fits other SLC models using RS‑232 cables.

Q3: Is the 1747-FC reusable if I move it to another cable?
A3: Yes, you can open the snap‑lock mechanism and reposition the collar on a different RS‑232 cable. Its durable design allows repeated use.

Q4: Do I need any tools to install this ferrite collar?
A4: No, installation requires no tools. Simply snap it around the cable at the module exit point.

Q5: How does the 1747-FC help with EMC compliance?
A5: This collar reduces electromagnetic emissions and improves immunity. It helps your system meet the European EMC Directive requirements.
