Allen-Bradley 1747-C10 SLC 500 Programming Cable 6ft

1747-C10 Communication Cable by Allen-Bradley for SLC 500

Product Introduction

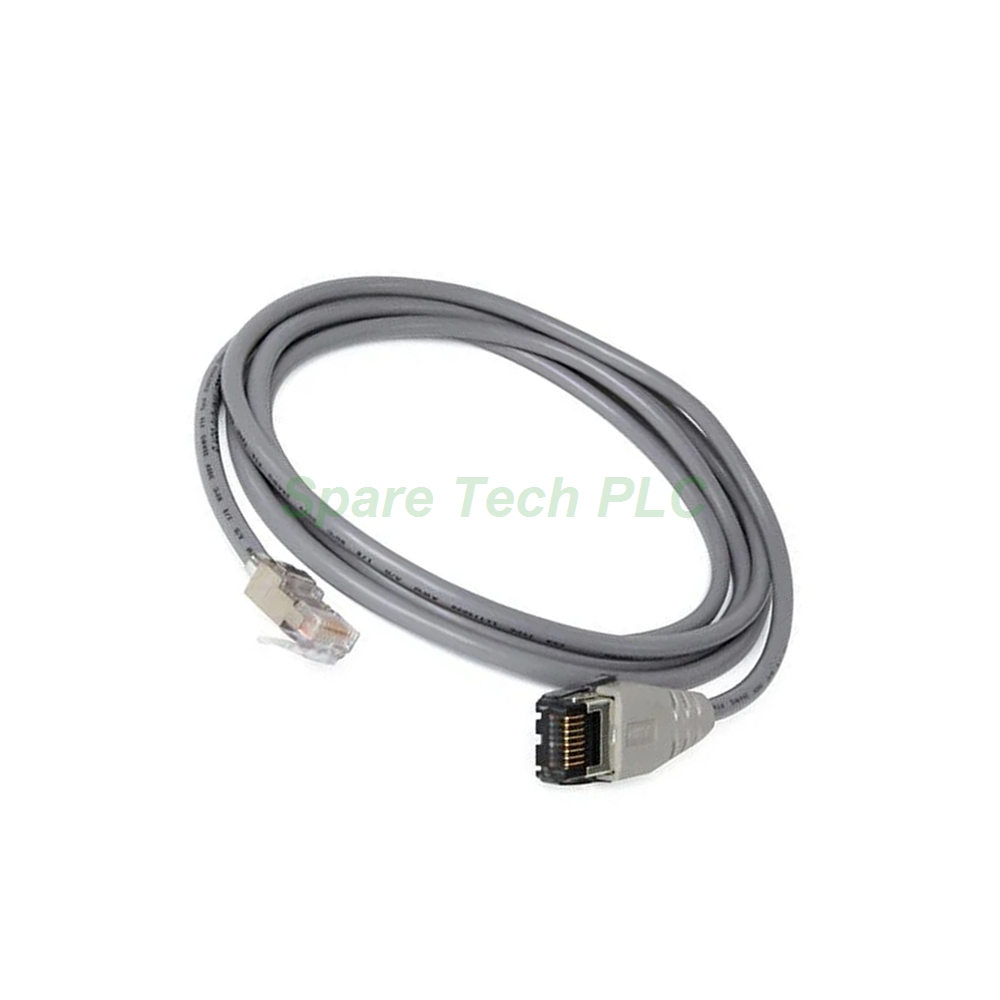

The Allen-Bradley 1747-C10 is a purpose-built programming cable for the SLC 500 controller family. This 6-foot (approximately 1.8 meters) cable establishes a dependable communication pathway between the processor and external programming devices.

Using this cable, technicians can upload programs, monitor real-time data, and perform diagnostic tasks with ease. Its RJ-45 connector ensures a secure and consistent connection, minimizing signal interference during critical programming sessions.

The 1747-C10 serves both as an original equipment cable and as a direct replacement for worn or damaged units. Its compatibility spans across the entire SLC 500 line, making it a versatile accessory for any maintenance toolkit.

Technical Specifications

The 1747-C10 programming cable features robust specifications suitable for industrial environments. Its key parameters are listed below:

• Cable Type: Programming and communication

• Connector Type: RJ-45 (both ends)

• Cable Length: 6 feet (1.8 meters)

• Compatible Controllers: SLC 500 series (all models)

• Supported Peripherals: Programming terminals and communication devices for SLC 500

• Replacement Capability: Yes, direct replacement for existing cables

• Operating Temperature: 32 to 140 °F (0 to 60 °C)

• Storage Temperature: -40 to 185 °F (-40 to 85 °C)

• Relative Humidity: 5 to 95% (non-condensing)

Environmental Durability

The 1747-C10 is engineered to withstand challenging industrial conditions. Its wide operating temperature range ensures reliable performance in most factory environments.

Additionally, the cable operates effectively in humidity levels from 5% to 95% without condensation, making it suitable for applications in humid climates or wash-down areas. When stored, the 1747-C10 tolerates extreme temperatures from -40 °F to 185 °F, preserving its flexibility and electrical integrity over time.

Installation and Usage Tips

Using the 1747-C10 is straightforward. Simply connect the RJ-45 plugs to the appropriate ports on the SLC 500 processor and your programming device.

For optimal performance, follow these recommendations:

• Avoid sharp bends or kinks that may damage internal conductors

• Keep the cable away from high-voltage power lines to prevent electromagnetic interference

• Inspect the RJ-45 connectors periodically for dust or corrosion

• Store the cable in a clean, dry area when not in use

Packaging List

Your shipment includes the following item:

• (1) Allen-Bradley 1747-C10 Programming Cable (6 feet, RJ-45 to RJ-45)

Frequently Asked Questions (FAQ)

1. Which controllers are compatible with the 1747-C10 cable?
The 1747-C10 is compatible with all SLC 500 series controllers that feature an RJ-45 programming port. This includes SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processors.

2. Can I use the 1747-C10 for online monitoring?
Yes, the 1747-C10 supports both programming and online monitoring functions. You can view real-time data, force I/O points, and troubleshoot logic while the controller remains in run mode.

3. Is this cable a direct replacement for the original?
Absolutely. The 1747-C10 is manufactured to the same specifications as the original Allen-Bradley cable, ensuring identical performance and compatibility as a replacement.

4. What is the maximum length of this cable?
The 1747-C10 is exactly 6 feet in length. For longer distances, consider using additional communication adapters or extension cables, though signal integrity may vary.

5. Does the 1747-C10 work with third-party programming software?
Yes, the 1747-C10 works with any software that communicates through the SLC 500 RJ-45 programming port, including Rockwell's RSLogix 500 and compatible third-party applications.
