ABB PM511V16 Processor Module 16MB Advant 450

ABB PM511V16 Processor Module for Advant Controller 450

Product Introduction

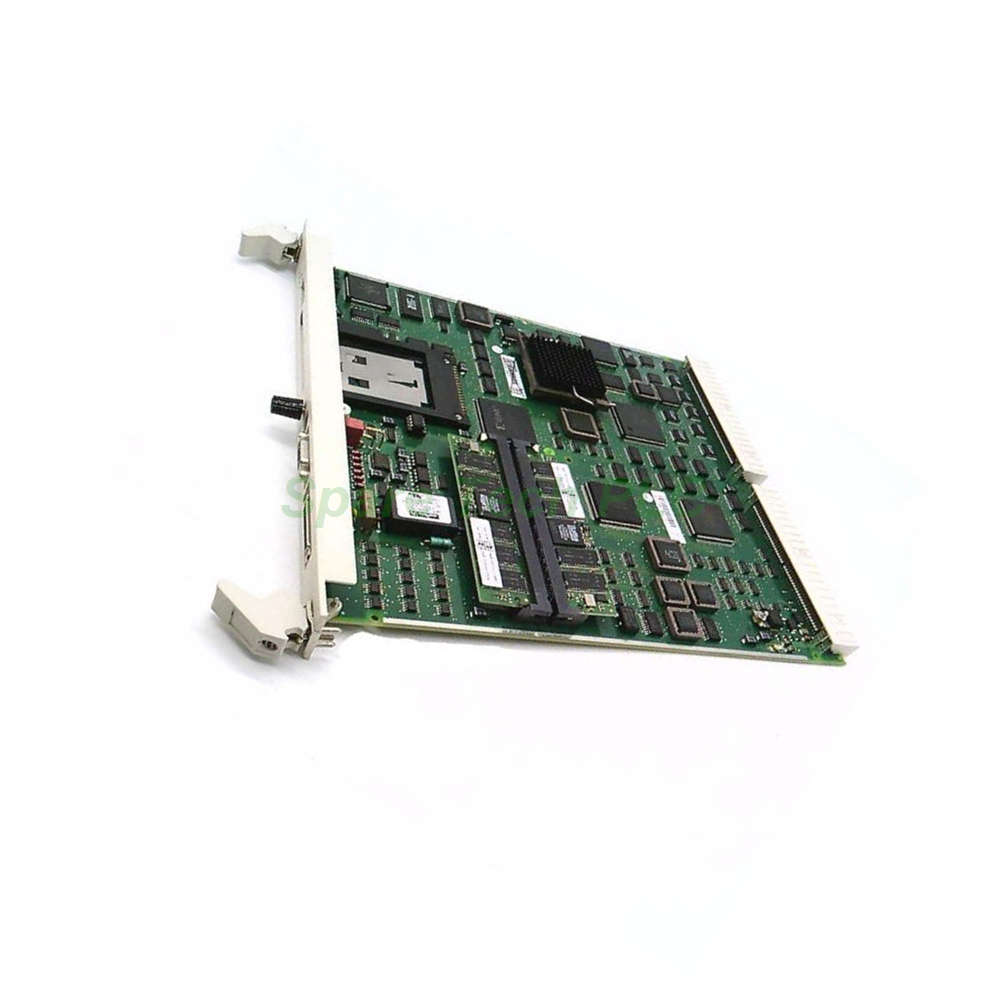

The ABB PM511V16 serves as the central processing unit for the Advant Controller 450 family. This processor module comes with 16 MB of read/write memory (RAM). You can rely on it for executing control logic and managing I/O data. The PM511V16 fits directly into the Advant controller rack. Furthermore, its design prioritizes stable operation in industrial settings. This module carries the ABB type designation PM511V16 and product ID 3BSE011181R1. Consequently, it integrates seamlessly with existing Advant 450 systems.

Technical Specifications of ABB PM511V16

The PM511V16 contains 16 MB of RAM for application and data storage. This memory capacity supports medium-sized control programs effectively. The module operates as a standalone central unit. It does not include any internal batteries. Therefore, you do not need to worry about battery replacement cycles. The PM511V16 uses external power from the Advant controller backplane.

Additionally, this processor module complies with EU Directive 2011/65/EU (RoHS). It falls under WEEE Category 5: Small Equipment with no external dimension exceeding 50 cm. The SCIP number for this product is d2a7c5df-56f7-496c-9d82-ee5fa97fe43d (Sweden). For customs classification, the HS code is 853890. The customs tariff number stands at 85389091.

Physical Dimensions and Weight

The ABB PM511V16 has a net depth of 274.5 mm. Its net height reaches only 27 mm. The net width measures 270 mm. As a result, this module occupies minimal space inside the control cabinet. The product net weight equals 0.8 kg. With packaging, the gross weight comes to approximately 1.0 kg. These compact dimensions make the PM511V16 easy to handle during installation or replacement.

Environmental Compliance and Certifications

The PM511V16 follows strict environmental standards. It meets RoHS requirements, meaning it contains restricted hazardous substances within permitted limits. Moreover, the WEEE category indicates proper end-of-life recycling procedures. No batteries are present inside the module. Thus, you avoid battery-related maintenance tasks. The PM511V16 also carries a SCIP database entry for substance tracking in the EU market.

Frequently Asked Questions (FAQ)

1. Is the PM511V16 compatible with newer ABB control systems?
No, the PM511V16 is specifically designed for the Advant Controller 450 series. It does not work with AC 800M or System 800xA. Please verify your system model before ordering.

2. Does the PM511V16 require an external battery for memory retention?
No, this processor module contains zero batteries. It does not need battery backup. However, volatile memory may lose data if power is removed. Use non-volatile storage for critical programs.

3. What is the maximum program size for the PM511V16?
The module provides 16 MB of total read/write RAM. The exact available program size depends on system overhead and data requirements. Typically, this supports medium complexity control applications.

4. Can I use the PM511V16 as a redundant CPU?
No, the PM511V16 does not support hardware redundancy. It functions as a standalone central unit. For redundant applications, consider ABB's AC 800M series with PM858 or similar models.

5. How do I confirm the PM511V16 is working after installation?
Check the status LEDs on the module front panel. Additionally, use Advant Controller configuration software to verify communication. The system should recognize the PM511V16 automatically when properly seated.
