ABB AI931S 3KDE175511L9310 Analog Input

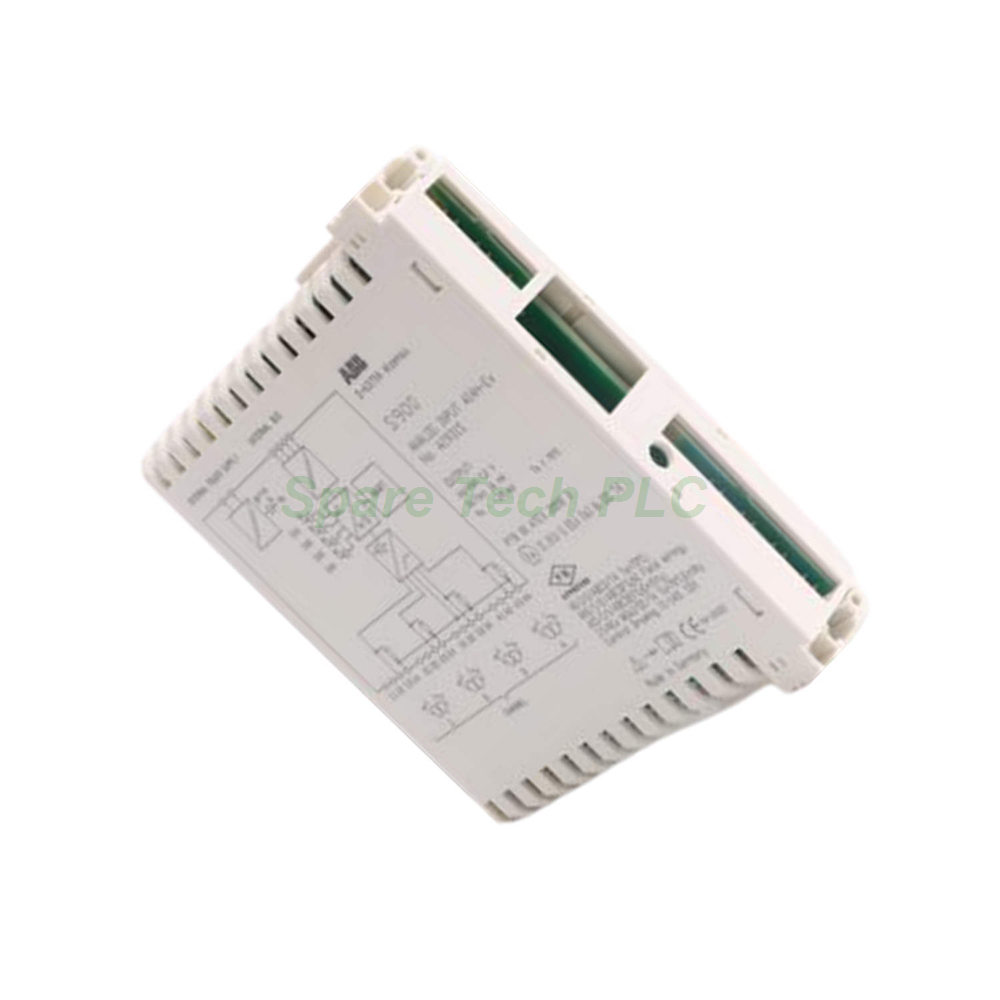

ABB AI931S (3KDE175511L9310) Analog Input Module

Product Introduction

The ABB AI931S (3KDE175511L9310) brings reliable analog input handling to hazardous locations. You can install this S900 I/O module directly in Zone 1 environments. It connects intrinsically safe field devices from Zone 0, Zone 1, or Zone 2. This module features four passive channels for 0/4…20 mA signals.

Furthermore, the 3KDE175511L9310 supports cyclic HART variable transmission. It also detects short circuits and broken wires automatically. Electric isolation exists between input/bus and input/power. A common return path serves all four inputs.

Key Technical Specifications

This analog input module delivers precise current measurement. Below are the core technical details:

• Number of channels: 4

• Signal type: 0/4…20 mA (passive inputs)

• HART support: Yes, cyclic HART frame transmission

• Intrinsic safety: Yes, for Zone 0/1/2 field devices

• Redundancy: Not supported (power and communication redundancy not available)

• Electrical isolation: Input/bus and input/power

• Short and break detection: Included

• Common return: Yes, shared for all 4 channels

S900 System Compatibility

The ABB 3KDE175511L9310 belongs to the S900 I/O system type S. This system works in non-hazardous areas or directly in Zone 1/Zone 2 hazardous locations. It communicates via PROFIBUS DP to the control system level.

For instance, you can install the S900 system directly in the field. This eliminates costly marshalling and reduces wiring needs. The system is rugged, fault-tolerant, and service-friendly. Integrated disconnection lets you replace power supplies without interrupting primary voltage. Additionally, the AI931S module supports hot swap functionality and hot configuration during run time.

Environmental & Certification Data

The module withstands harsh industrial conditions. Check the following environmental parameters:

• Hazardous location: ATEX Zone 1 certified

• Corrosive atmosphere: ISA-S71.04 G3 coating for all components

• Operating temperature: -20°C to +60°C

• Humidity: Max 93% ±3% at 40°C

• CE mark: Yes

• RoHS compliance: Directive 2011/65/EU (EN 50581:2012)

• WEEE compliance: Directive 2012/19/EU

• WEEE category: Small equipment (no external dimension >50 cm)

Mechanical Dimensions & Weight

Physical integration is simple due to compact design. Below are the exact measurements:

• Width: 20 mm (0.79 in.)

• Depth: 104 mm (4.09 in.)

• Height: 104 mm (4.09 in.)

• Weight: 0.13 kg (0.28 lbs)

Installation Guidelines

Follow these steps for proper installation of the ABB AI931S module.

Mounting Location

Install the module in Zone 1 hazardous areas or non-hazardous locations. Ensure the backplane supports S900 mechanicals.

Wiring Passive Inputs

Connect 0/4…20 mA passive field devices to any of the four channels. Use the common return terminal for all inputs. Pay attention to intrinsic safety wiring rules for Zone 0/1/2 devices.

Bus and Power Connection

The module receives power and communication via the S900 backplane. No external power wiring is needed for the module itself. However, ensure the system power supply is properly rated.

Hot Swap Procedure

You can replace the 3KDE175511L9310 during operation. First, release the integrated disconnection mechanism. Then remove the old module and insert the new one. Finally, re-engage the disconnection. No system shutdown is required.

Diagnostic & Configuration

Use FDT/DTM tools for excellent configuration and diagnostics. Extended diagnostics help you identify faults quickly. Auto-diagnostics simplify routine maintenance.

Frequently Asked Questions (FAQ)

1. Does the AI931S support redundant power or communication?
No, this specific module does not offer redundancy. However, the S900 system overall supports power and communication redundancy at the backplane level for other modules.

2. Can I use the ABB 3KDE175511L9310 with HART field devices?
Yes, the module transmits HART frames cyclically via the PROFIBUS DP fieldbus. You can also access cyclic HART variables without extra hardware.

3. What happens if a sensor wire breaks on an active channel?
The module detects the break condition immediately. It then sends a diagnostic alert to the control system. This feature helps you locate wiring failures quickly.

4. Is the AI931S module hot-swappable in a live Zone 1 area?
Yes, the integrated disconnection mechanism allows safe replacement during operation. You do not need to power down the system or the primary voltage supply.

5. What is the return path configuration for the four inputs?
All four analog inputs share a common return terminal. This simplifies field wiring and reduces terminal block complexity. Ensure your field devices comply with this common return architecture.
