330710-004-054-50-02-00 | Bently Nevada 11 mm Probe

Product Introduction

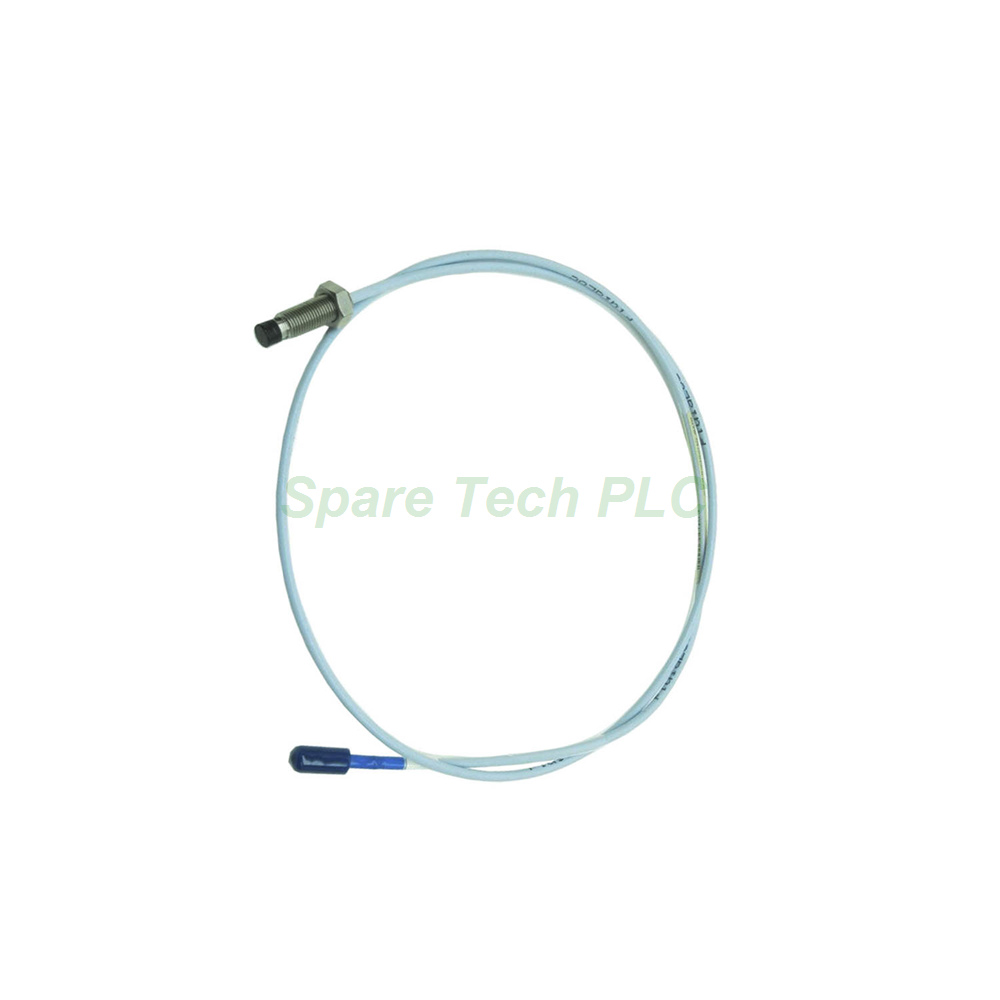

The Bently Nevada 330710-004-054-50-02-00 is a high-performance 11 mm proximity probe. It is designed specifically for the critical measurement of shaft vibration and axial position in rotating machinery. This sensor is a key component of the 3300 XL system, offering advanced eddy current technology. Its robust construction ensures reliable data even in harsh industrial environments. The specific configuration provides a standard cable and connector.

Technical Specifications

The 330710-004-054-50-02-00 is distinguished by its precise configuration. This model utilizes a large 11 mm tip. Consequently, it provides a longer linear range compared to 8 mm systems.

Key Parameters

• Probe Diameter: 11 mm (highlighted in blue)

• Unthreaded Length Option (004): 40 mm (1.57 inches)

• Overall Case Length Option (054): 54 mm (2.13 inches)

• Total Length Option (50): 5.0 metres (16.4 feet) (highlighted in red)

• Connector and Cable Type (02): Miniature coaxial ClickLoc connector, standard cable

• Agency Approval (00): Not required

Additionally, the probe tip is manufactured using polyphenylene sulfide (PPS). The case is constructed from AISI 304 stainless steel for durability. This sensor offers a standard sensitivity of 3.94 V/mm (100 mV/mil) (highlighted in blue) and operates within a frequency range of DC to 10 kHz. It adheres to the API 670 standard for machinery protection.

Environmental and Mechanical Limits

The Bently Nevada 330710 probe operates effectively under extreme conditions. Its operating temperature range is from -51°C to +177°C (-60°F to +350°F) (highlighted in red) for the tip and case. Meanwhile, the cable can withstand temperatures from -51°C to +260°C (-60°F to +500°F). The probe also tolerates a maximum pressure of 20.7 MPa (3000 psi). Furthermore, it has been tested to withstand vibration of 20 g and mechanical shock of 100 g. This robust design ensures long-term stability in demanding environments such as steam turbines, compressors, and pumps.

Installation Guidelines

Proper installation of the 330710-004-054-50-02-00 is essential for accurate measurements. First, ensure the target surface is clean and free of any debris. Next, verify that the probe gap is set correctly according to the system calibration requirements. Specifically, the recommended initial gap for this 11 mm probe is approximately 1.27 mm (50 mils) from the shaft surface. For instance, you should use the provided mounting hardware to secure the probe firmly. Subsequently, connect the ClickLoc connector to the extension cable, ensuring a tight and secure fit. Finally, perform a system check to confirm proper signal output before starting the machinery.

Common Applications

This specific model, the 330710-004-054-50-02-00, finds widespread use across multiple industries. For instance, it is commonly installed in power generation plants for turbine monitoring. Additionally, it plays a vital role in oil and gas facilities for compressor protection. Moreover, the probe is frequently used in paper mills and steel plants for critical pump and fan monitoring. Its long 5.0-metre cable offers great flexibility for installations where the proximity to the monitoring rack is a concern. Therefore, this model is a versatile solution for many predictive maintenance programs.

Why Choose This Bently Nevada Probe

Choosing the Bently Nevada 330710 probe offers several distinct advantages. First, its 11 mm diameter provides superior linear range and gap stability. Second, the probe's construction ensures excellent resistance to oil, water, and other contaminants. Furthermore, the proven 3300 XL series technology guarantees high measurement accuracy and repeatability. In addition, the standard ClickLoc connector simplifies field wiring and reduces installation time. Consequently, this model remains a preferred choice for plant engineers worldwide.

Packaging List

Your shipment of the 330710-004-054-50-02-00 includes the following items:

• One Bently Nevada 3300 XL 11 mm Proximity Probe (complete assembly)

• One mounting nut for panel installation

• One protective shipping cap for the probe tip

• Installation instruction sheet (quick reference guide)

Note: This package does not include calibration certificates or warranty documents.

Shipping Information

We ship all orders via reliable courier services. Specifically, we use FedEx, UPS, and DHL for global deliveries. Therefore, you can expect fast and trackable shipping to most destinations. All packages are securely packed to prevent damage during transit.

Frequently Asked Questions

Q1: What is the main difference between the 330710 model and an 8 mm probe?

A1: The 330710 features an 11 mm tip, which provides a longer linear measurement range and better gap stability than standard 8 mm probes. This makes it more suitable for larger shaft applications.

Q2: Can I use this probe with an existing 3300 XL extension cable?

A2: Yes, the 330710-004-054-50-02-00 uses a standard miniature coaxial ClickLoc connector. Therefore, it is fully compatible with all 3300 XL series extension cables and proximity systems.

Q3: What is the recommended target material for this probe?

A3: This probe is calibrated for use with AISI 4140 steel or equivalent ferrous materials. Using different target materials may require a custom calibration to ensure accuracy.

Q4: How do I verify if the probe is working correctly after installation?

A4: You can check the output voltage with a multimeter while adjusting the gap. A static output voltage change of approximately 3.94 V per mm indicates proper functionality. Additionally, the system indicator light should show a stable reading.

Q5: Is this probe suitable for submersible applications?

A5: The probe body is sealed and can withstand high pressure up to 20.7 MPa. However, it is not designed for continuous submersible operation in conductive liquids. For such cases, please consult your application engineer.
