31000-30-05-40-140-03-02 Bently Nevada Housing

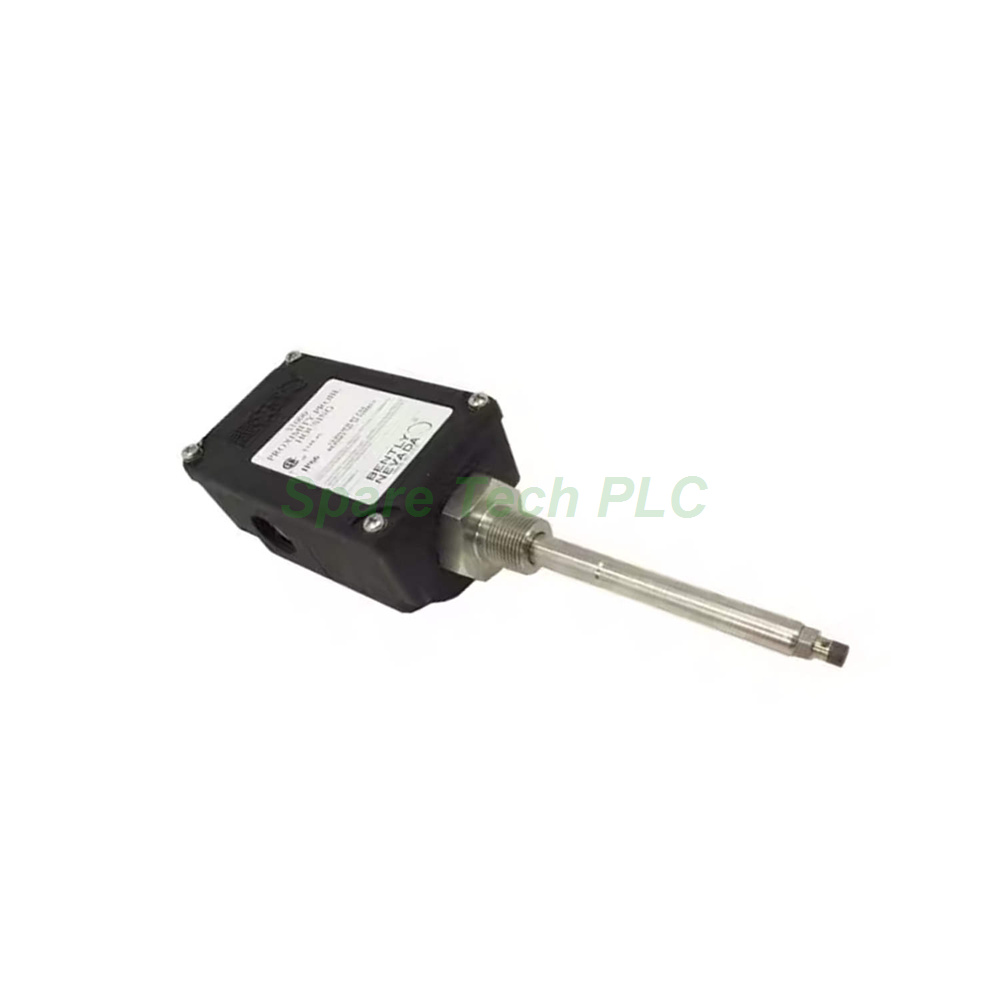

Bently Nevada 31000-30-05-40-140-03-02 Proximity Probe Housing

Product Introduction

The Bently Nevada 31000-30-05-40-140-03-02 represents the most extended reach configuration in the 31000 housing series. This model combines a 4-inch standoff adapter with a 14-inch probe penetration, enabling vibration monitoring in deep recesses or behind obstacles. The probe option includes a connector protector for enhanced reliability, while the comprehensive fitting kit ensures flexible installation. Manufactured in the U.S.A., this housing delivers superior protection in hazardous and harsh environments.

Detailed Technical Specifications

The Bently Nevada 31000 housing series supports the 3300 XL 8 mm probe with multiple approvals. This particular variant, 31000-30-05-40-140-03-02, comes with a 0.5-metre (20-inch) probe cable. The probe option includes a connector protector, which safeguards the connection point from mechanical stress and contamination. The standoff adapter extends to 4 inches, positioning the probe further from the mounting surface.

Most notably, the probe penetration reaches 14 inches, providing exceptional depth for accessing measurement points within large machinery. The mounting thread uses a 3/4-14 NPT connection, and this option is required when ordering the standoff adapter. This robust configuration ensures stable probe positioning even at extended depths.

The fittings option for this model is comprehensive and versatile. It includes one 3/4-14 NPT fitting and two plugs for port sealing. Furthermore, it provides one 3/4-14 to 1/2-14 NPT stainless steel reducer, enabling connection to smaller conduit systems. A cable seal grip is included with three interchangeable grommets for cable sizes ranging from 1/8 to 3/8 inches. This allows the housing to accommodate various cable diameters while maintaining a tight environmental seal.

Protection Ratings and Certifications

The protection ratings meet the highest industry standards for demanding applications. The housing holds a Type 4X rating certified by the Canadian Standards Association (CSA). The IP66 rating has been verified by SC115582-1 (e) 106, guaranteeing complete protection against dust ingress and powerful water jets. Moreover, it meets CENELEC standard EN50014 for electrostatic dissipation, making it safe for use in classified hazardous areas where plastic materials must prevent static discharge.

Material Composition and Mechanical Properties

The housing construction uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibres embedded throughout. This advanced material offers excellent chemical resistance, dimensional stability, and inherent static dissipation properties. The sleeve and retaining chain are fabricated from AISI 304 stainless steel for superior strength and corrosion resistance. Meanwhile, the outer sleeve and exterior screws use AISI 303 stainless steel, which provides excellent machinability and surface finish. The O-ring is manufactured from Neoprene® to ensure a durable, long-lasting seal against moisture, dust, and chemical contaminants.

Environmental and Impact Ratings

The Bently Nevada 31000-30-05-40-140-03-02 operates across an extreme temperature range of -51°C to +105°C (-60°F to +221°F). This broad range makes it suitable for both freezing outdoor locations and high-heat process areas near turbines or compressors. Impact strength has been rigorously validated through independent testing. BASEEFA certified the housing to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C and at 115°C. In addition, CSA verified that samples of the housing and cover withstand a 7 Joule (5.2 ft·lb) impact at ambient room temperature.

Mechanical strength is equally robust for this extended configuration. The outer sleeve supports 912 N (205 lb) when mounted on a test stand, with the housing positioned approximately 38 mm from the unsupported end. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). The total weight of this unit is 1.2 kg (2.6 lb), which remains manageable despite the extended standoff and penetration depth.

Installation Guidance

Proper installation of the Bently Nevada 31000-30-05-40-140-03-02 requires attention to several critical steps, especially given its extended configuration. First, select the appropriate grommet from the three provided sizes based on your cable diameter. The grommet options cover 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches. This ensures a snug fit within the cable seal grip, preventing moisture ingress and maintaining the IP66 rating.

Next, clean the mounting surface thoroughly before attaching the housing using the 3/4-14 NPT thread. The 4-inch standoff adapter requires careful alignment to ensure the probe remains perpendicular to the measurement surface. Apply the recommended torque of 29.4 N·m to the retaining nut for optimal sealing. For conduit connections, use the supplied stainless steel reducer if adapting from 3/4-14 NPT to 1/2-14 NPT. This feature simplifies integration with existing piping systems.

Finally, verify the 14-inch probe penetration depth before final tightening. This extended depth may require additional care during insertion to avoid contact with internal components. The connector protector should be checked for proper engagement to shield the connection point from mechanical stress.

Packaging List

This shipment for the Bently Nevada 31000-30-05-40-140-03-02 includes the following items:

• 1 x Proximity probe housing assembly with 4-inch standoff adapter

• 1 x 0.5-metre probe cable (pre-attached)

• 1 x Connector protector (pre-installed)

• 1 x 3/4-14 NPT fitting

• 2 x Plugs for unused ports

• 1 x 3/4-14 to 1/2-14 NPT stainless steel reducer

• 1 x Cable seal grip with three grommets (1/8-3/16", 1/4-5/16", 5/16-3/8")

• 1 x Installation instruction sheet

Shipping Information

All orders are dispatched worldwide via FedEx, UPS, or DHL. Tracking numbers are provided upon shipment. Delivery typically takes 3-7 business days depending on the destination region.

Frequently Asked Questions (FAQ)

Q1: What makes the 31000-30-05-40-140-03-02 unique compared to other Bently Nevada housings?

This model features an exceptional 4-inch standoff adapter combined with 14-inch probe penetration, making it ideal for deep recess measurements. It also includes a connector protector for enhanced reliability and a comprehensive fitting kit with cable seal grip.

Q2: Why is the 3/4-14 NPT mounting thread required for this housing?

The 3/4-14 NPT mounting thread is required when ordering the standoff adapter option to ensure proper engagement and sealing. This standard thread size provides a secure connection that maintains alignment for the extended 4-inch standoff.

Q3: Can I use this housing with a probe other than the 3300 XL 8 mm?

No, this housing is specifically designed for the 3300 XL 8 mm probe. Using other probes may result in improper fitment and compromised measurement accuracy. The connector protector is also tailored to this probe type.

Q4: How do I select the correct grommet for the cable seal grip?

Measure your cable diameter and select the corresponding grommet from the three provided sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, or 5/16 to 3/8 inches. Proper grommet selection is essential for maintaining the IP66 environmental seal.

Q5: What precautions should I take when installing the 14-inch probe penetration?

The extended 14-inch penetration requires careful insertion to avoid contacting internal components. Ensure the probe path is clear before installation, and verify the penetration depth after final tightening. The connector protector should also be checked for proper engagement.
