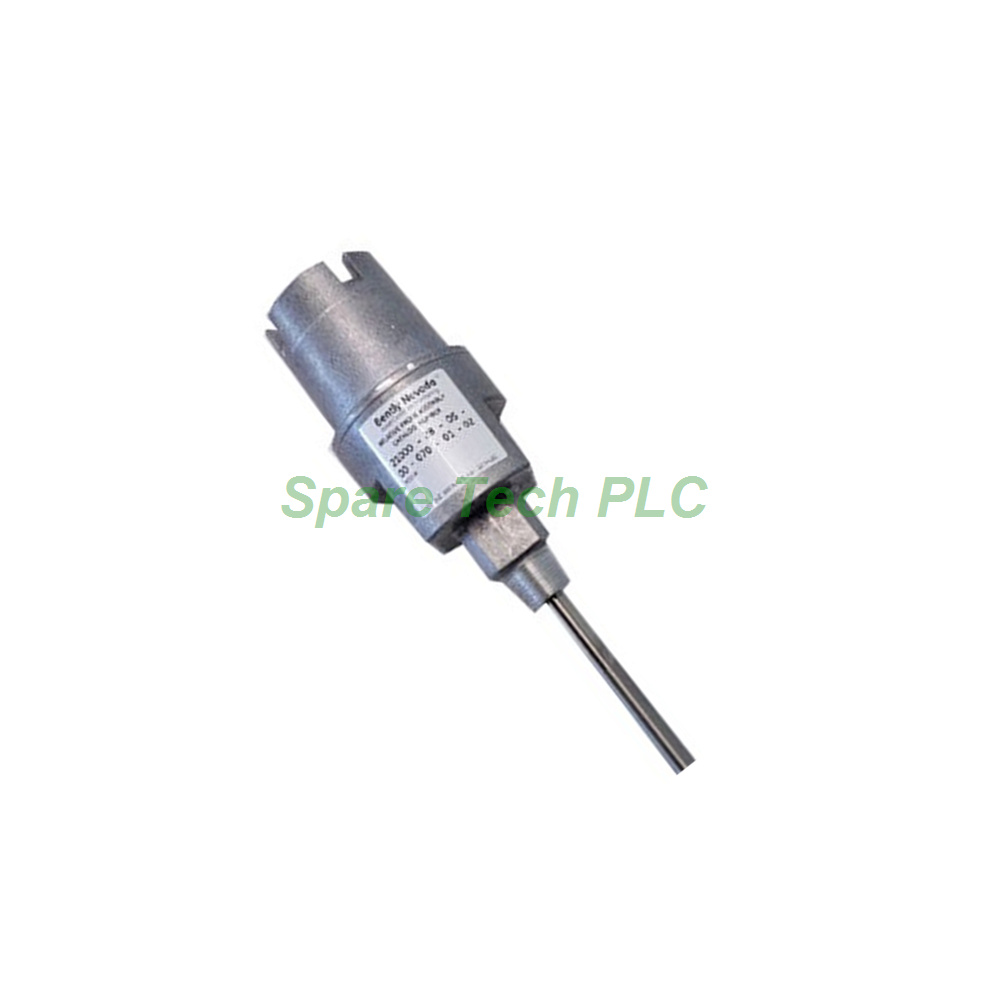

Bently Nevada 24701-34-05-00-031-04-02 Proximity Probe Housing Assembly

Product Introduction

The Bently Nevada 24701-34-05-00-031-04-02 arrives as a factory-assembled unit that protects and houses a reverse-mount proximity probe. This assembly simplifies installation and maintenance for critical turbomachinery. Specifically, this model supports the 3300 XL 8 mm probe system. The housing features a 303 stainless steel body with a 304 stainless steel sleeve, which ensures excellent corrosion resistance. Additionally, selectable hazardous area approvals make this unit versatile for various plant environments.

Technical Specifications

The 24701 series offers many configurable options to address specific application needs. Suffix code 34 identifies the probe option for this particular model. Specifically, it specifies a 3300 XL 8 mm probe that comes with a connector protector. Furthermore, this code includes hazardous area approvals for enhanced safety compliance.

The probe cable length uses suffix code 05, which indicates a 0.5-meter (20-inch) cable. This compact length works ideally for installations where the signal conditioner sits close to the probe. Code 00 shows the absence of a standoff adapter, which provides a direct mounting solution.

For the 24701-34-05-00-031-04-02, code 031 sets the probe penetration depth at 3.1 inches. This precise dimension plays a crucial role in correct probe positioning. Code 04 denotes the fittings option, which includes one 3/4-14 NPT plug. Moreover, code 02 indicates the mounting thread option, also featuring a 3/4-14 NPT thread standard. The maximum combined dimension (C) + (D) for this assembly measures 13.5 inches (34.3 cm).

Mechanical and Environmental Features

The housing construction uses a robust 303 stainless steel body combined with a 304 stainless steel sleeve. This material choice provides high strength and resistance to oxidation. Therefore, this Bently Nevada 24701 housing performs well in harsh industrial conditions. Without fittings, the assembly typically weighs about 1.8 kg (4.1 lb). With packaging, the gross weight reaches approximately 2.22 kg.

This design incorporates several key components. A dome cover screws securely into the body. Threaded ports facilitate conduit connections. Additionally, the assembly includes a probe sleeve of the specified length, O-rings, and a thread seal. An optional standoff adapter remains available, though this configuration does not include it.

Installation Guidelines

Installing the 24701-34-05-00-031-04-02 requires careful attention to the specified dimensions. First, clean the mounting surface and properly prepare the 3/4-14 NPT threaded hole. Use the included NPT plug to seal any unused ports. This practice helps maintain the housing's environmental integrity.

Next, insert the probe to achieve the correct penetration depth. The 3.1 in setting comes factory-specified for this model. The total distance from the mounting surface to the probe tip significantly affects measurement accuracy. Remember, the maximum (C)+(D) dimension measures 13.5 inches. Always verify this measurement during installation to avoid probe damage. For specific wiring, consult the manual regarding hazardous area compliance where applicable.

Packaging and Delivery

Your purchase ships as a new, original unit in factory packaging. The package contains the following items:

• 1 x 24701 Proximity Probe Housing Assembly (complete)

• 1 x 3/4-14 NPT plug (fitted as standard)

• All required O-rings and mounting hardware

• Necessary installation documentation

We ship the product new and guarantee its authenticity. The packaging prevents damage during transit. We ship worldwide using trusted couriers. Our standard shipping partners include FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

1. What is the primary application for this housing assembly?
This assembly specifically mounts a 3300 XL 8mm probe on industrial machinery like compressors and turbines. Its primary role involves providing a secure and protective enclosure for the probe.

2. Does the 24701-34-05-00-031-04-02 suit hazardous area installations?
Yes. Suffix code 34 designates that this model includes selectable hazardous area approvals. However, always verify the specific certification for your area before installation.

3. What materials compose this housing?
The housing body uses 303 stainless steel, while the internal sleeve uses 304 stainless steel. This combination offers excellent durability and corrosion resistance.

4. How long is the probe cable for this model?
Suffix code 05 specifies a probe cable length of 0.5 meters (20 inches) . This cable comes as a pre-determined, non-extendable part of the assembly.

5. How do I determine the correct penetration depth during installation?
The preset depth for this model is 3.1 in. Carefully measure the (C)+(D) dimension, which has a maximum limit of 13.5 in, to ensure accurate probe positioning.
