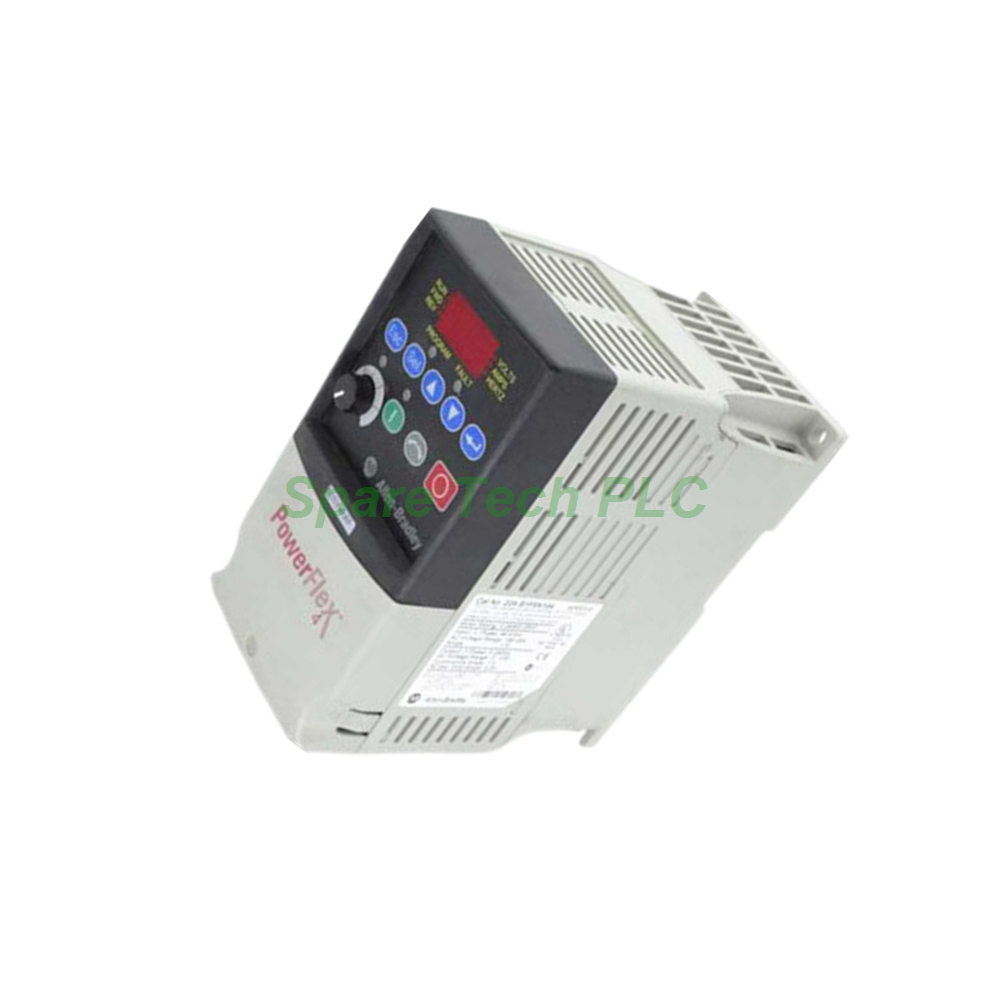

22A-D1P4N104 Allen-Bradley PowerFlex 4 Drive

Allen-Bradley 22A-D1P4N104 AC Drive 0.5 HP

Product Introduction

The 22A-D1P4N104 belongs to the Allen-Bradley PowerFlex 4 series. Manufacturers use this drive for simple motor speed control. It accepts 480VAC 3-phase power. The output current is 1.4 Amps. Output power reaches 0.37 kW or 0.5 HP. This drive comes in Frame Size A. Its enclosure is IP20 and NEMA/UL Type Open. You get a fixed digital keypad with an LED display. Moreover, it includes an RS485 communication port. There is no CE compliant filter inside this model.

Technical Specifications

• Input voltage: 380–480VAC, 3-phase

• Output voltage: 0–480VAC

• Output current: 1.4 Amps (key feature)

• Output power: 0.37 kW / 0.5 HP (key feature)

• Control methods: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), StepLogic

Mechanical and Environmental

• Enclosure rating: IP20 / NEMA UL Type Open

• Frame size: A

• Installation: Panel mount or DIN rail

• Weight: 0.94 kg (2.06 lbs)

• Brake type: Drive brake included

• Display type: LED

• Keypad type: Fixed digital keypad

Communication and Filtering

This Allen-Bradley drive has a built-in RS485 port. It also supports Ethernet/IP communication. There is no CE compliant filter on this model. Therefore, it suits applications without strict EMC requirements.

Installation Guidelines

Follow these steps to install the 22A-D1P4N104 safely.

Step 1 – Mounting
Mount the drive on a flat, vertical panel. Use the four mounting holes on Frame A. Alternatively, clip it onto a DIN rail. Keep at least 50 mm of free space above and below for cooling.

Step 2 – Wiring
Connect 480VAC 3-phase input to terminals L1, L2, L3. Connect the motor to U, V, W. Use shielded cables for control wiring. Ground the drive properly.

Step 3 – Communication
Plug your RS485 network into the dedicated port. Set the node address using parameters. The LED display shows the status.

Step 4 – Startup
Apply power. Use the fixed keypad to set motor parameters. Run a test at low speed. Check for smooth operation.

Packaging List

• One 22A-D1P4N104 PowerFlex 4 AC drive (Allen-Bradley)

• One fixed digital keypad (pre-installed)

• One LED display module (pre-installed)

• One quick start guide (paper copy)

• No mounting screws or cables included

• No certificate or warranty document in the box

Shipping Information

We ship all orders via FedEx, UPS, or DHL. The drive leaves our warehouse within 24 hours after payment confirmation. A tracking number will be sent by email.

Frequently Asked Questions (FAQ)

1. Can I use the 22A-D1P4N104 with single-phase 480V input?
No. This Allen-Bradley drive requires 3-phase 480VAC input. Single-phase operation is not allowed.

2. Does this drive include a built-in brake resistor?
It includes a drive brake transistor, but not an external brake resistor. You can add one separately if needed.

3. What is the difference between PowerFlex 4 and PowerFlex 40?
The PowerFlex 4 series is simpler and smaller. The 22A-D1P4N104 is listed under PowerFlex 40 in some documents, but it belongs to the PowerFlex 4 family. Both share similar programming.

4. Can I control this drive remotely via RS485?
Yes. The built-in RS485 port supports Modbus or Allen-Bradley proprietary protocols. You can start, stop, and change speed remotely.

5. Is the LED display readable in low light?
Yes. The LED display is bright and clearly visible even in dark panel environments. It shows frequency, current, or fault codes.
