20B-VECTB-C0 Vector Control Cassette Allen-Bradley

20B-VECTB-C0 Vector Control Cassette for PowerFlex 700 Drives

Product Introduction

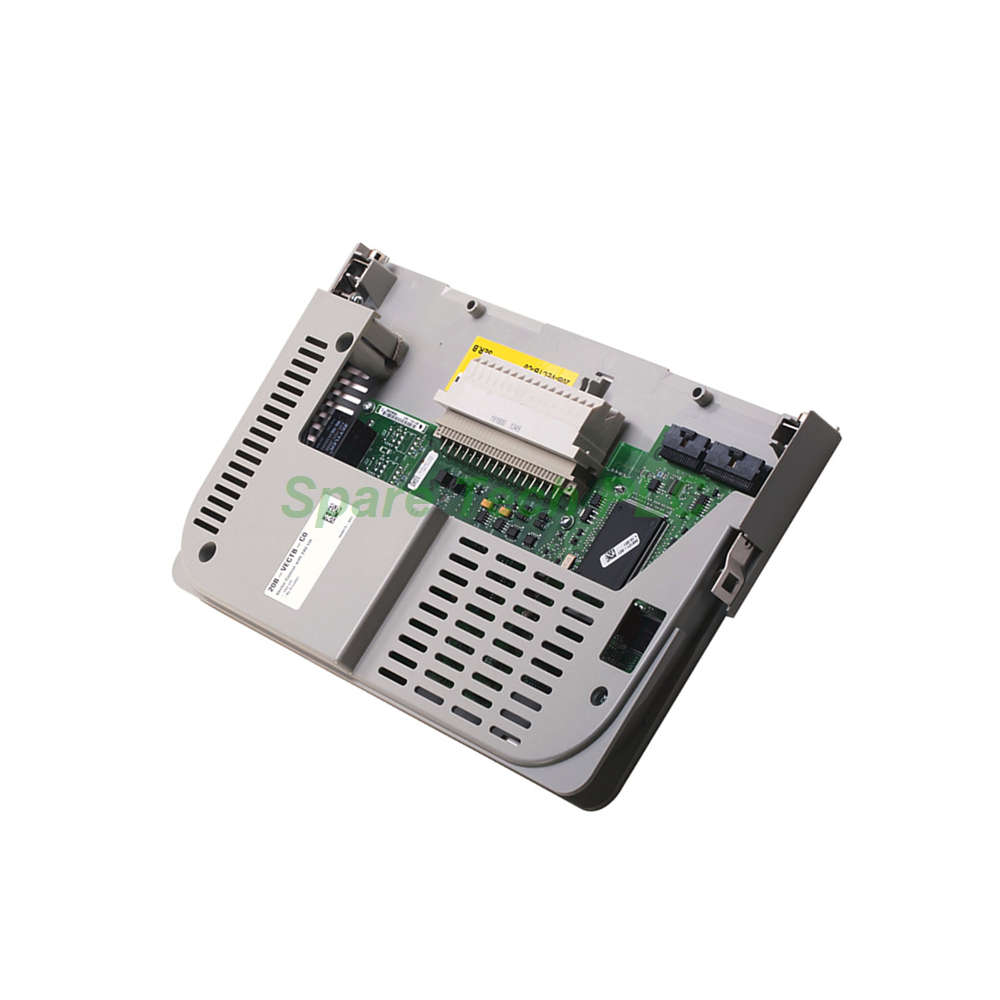

The 20B-VECTB-C0 is a dedicated vector control cassette from Allen‑Bradley. It belongs to the PowerFlex 700 product line and installs inside the drive as a critical control component. This cassette enables high‑performance vector control for demanding motor applications. Additionally, it provides a DPI communication port for seamless network integration. Its compact internal design saves panel space while delivering precise speed and torque control.

Key Technical Specifications

This vector control cassette operates as an internal control board. It requires a 24V DC supply voltage with a typical tolerance of ±10%. Therefore, the acceptable range is roughly 21.6V DC to 26.4V DC. The 20B-VECTB-C0 uses vector control technology, which delivers excellent low‑speed torque and speed regulation.

Important electrical and environmental parameters:

• Supply voltage: 24V DC

• Voltage tolerance: ±10% typical

• Operating temperature: 0°C to 40°C

• Humidity tolerance: 5% to 95% non‑condensing

• Storage temperature: -40°C to 70°C

The cassette mounts entirely inside the PowerFlex 700 drive enclosure. Consequently, its protection level depends on the drive's overall IP rating. You cannot hot‑swap this module. Always power down the drive before installation or removal.

Communication and Integration

The 20B-VECTB-C0 includes a DPI (Drive Peripheral Interface) port. DPI allows direct connection to human‑interface modules, communication adapters, and programming tools. For instance, you can connect a 22-HIM series operator panel to this port for local control and monitoring. Furthermore, DPI supports parameter upload/download and fault logging.

Compatibility notes:

• Designed exclusively for PowerFlex 700 drives

• Not compatible with PowerFlex 400, 525, or 750 series

• Works with both AC and DC input versions of PowerFlex 700

Vector Control Benefits

Vector control technology sets this cassette apart from simple V/Hz control. It separately manages magnetizing current and torque‑producing current. Therefore, the 20B-VECTB-C0 delivers superior performance in applications that require:

• High starting torque at near‑zero speed

• Precise speed regulation under varying loads

• Fast torque response for cyclic operations

• Smooth operation across a wide speed range

For example, you will find this cassette used in cranes, hoists, extruders, winders, and test stands. These applications demand the dynamic performance that only vector control can provide.

Installation Guidelines

First, disconnect all power from the PowerFlex 700 drive and wait five minutes for DC bus capacitors to discharge. Next, open the drive front cover to access the control cassette slot. Then, slide the 20B-VECTB-C0 carefully into the dedicated slot until it locks in place. Finally, close the cover and restore power.

Remember that this cassette is not hot‑swappable. Installing or removing it with power applied can damage both the cassette and the drive. Always follow the safety instructions in the PowerFlex 700 user manual.

Typical Applications

The 20B-VECTB-C0 suits high‑performance motor control tasks across many industries. Specifically, it works well for:

• Conveyor systems with dynamic load changes

• Hoists and cranes requiring controlled acceleration

• Extruders needing constant torque at low speeds

• Winders and unwinders with tension control

• Test benches for variable speed profiling

Because of its vector control algorithm, this cassette handles both constant torque and variable torque loads effectively. You can also use it for servo‑like positioning when combined with an encoder feedback option.

Environmental and Handling Considerations

Operate the 20B-VECTB-C0 only within its specified temperature range of 0°C to 40°C. Exceeding this limit may cause erratic behavior or permanent damage. Store the cassette in a dry environment between -40°C and 70°C. Humidity up to 95% non‑condensing is acceptable during operation, but avoid direct water exposure.

Handle the PCB by its edges to prevent static discharge damage. Use an anti‑static wrist strap during installation. Store the cassette in its original anti‑static bag until ready for use.

Packaging List

• 20B-VECTB-C0 vector control cassette

• Anti‑static protective bag

• Installation instruction leaflet

Note: No certificates or warranty documents are included in the package.

Shipping Information

All orders ship via FedEx, UPS, or DHL. Tracking numbers are provided within 24 hours after dispatch. International delivery typically takes 3–7 business days.

Frequently Asked Questions (FAQ)

1. Is the 20B-VECTB-C0 compatible with all PowerFlex 700 frames?
Yes, this cassette works with all frame sizes of the PowerFlex 700 series. However, always verify that your drive's firmware revision supports vector control features.

2. Can I use the 20B-VECTB-C0 in a PowerFlex 700H or 700S drive?
No, the 20B-VECTB-C0 is designed only for the standard PowerFlex 700 series. The 700H and 700S use different control cassettes. Check your drive manual before ordering.

3. What happens if I install this cassette with power applied?
The cassette is not hot‑swappable. Installing it under power may damage the board, the drive, or both. Always disconnect and discharge the drive completely before installation.

4. Does the 20B-VECTB-C0 include an encoder interface?
No, this cassette provides vector control using internal current feedback. For closed‑loop vector control with an encoder, you need an additional feedback option card.

5. How do I know if my PowerFlex 700 already has vector control capability?
Check the control cassette label inside your drive. If it shows 20B-VECTB-C0, vector control is present. If it shows a different part number, you may have V/Hz or standard control only.
