The Bently Nevada 3500/15-07-07-00 is a low voltage DC power supply for 3500 monitoring systems. Both top and bottom slots use the same low voltage DC type. Input range is 20-30 Vdc with 11.0 A maximum output. This module supports redundant configurations for critical machinery protection.

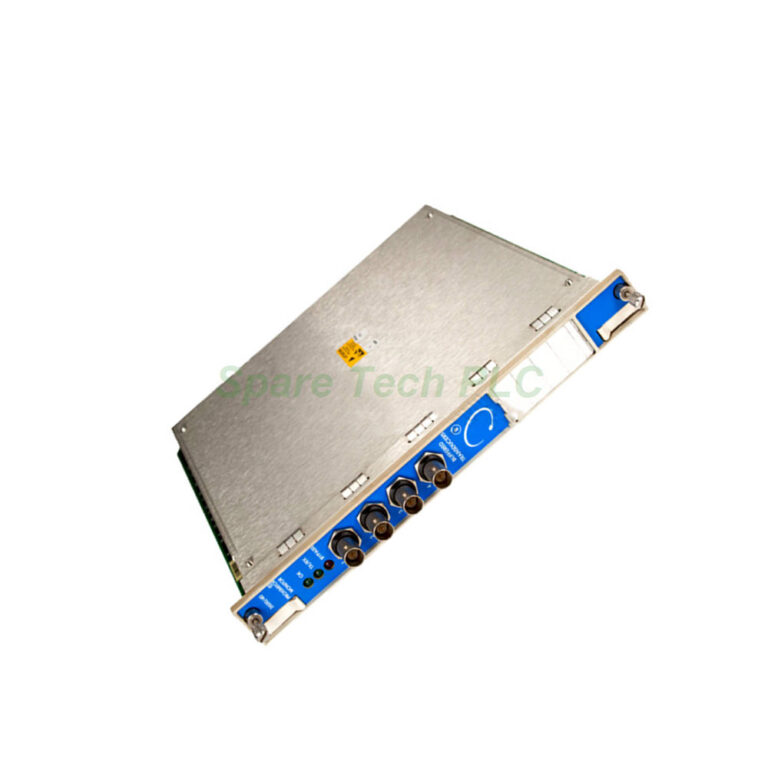

The Bently Nevada 3500/15-05-05-00 is a universal AC power supply for 3500 rack systems. It accepts 85-264 Vac rms input at 47-63 Hz. Both top and bottom slots use the same universal AC type. This module supports redundant operation for critical machinery monitoring.
The Bently Nevada 3500/50M-01-00 286566-02 is a two-channel tachometer module. It accepts proximity probe or magnetic pickup signals. This module provides speed measurement, RPM accuracy, and recorder outputs for turbine and compressor monitoring.
The Bently Nevada 3500/92-04-01-00 136188-02 is an Ethernet and RS485 Modbus I/O module. It collects data from other 3500 rack modules via a high-speed internal network. This module supports Modbus/TCP and Modbus RTU protocols.
The Bently Nevada 3500/53-03-00 is a three-channel electronic overspeed detection system. It accepts proximity probe or magnetic pickup inputs. This module provides relay outputs for critical turbine and compressor overspeed protection.
The Bently Nevada 176449-07 is a 3500/77M Pressure Monitor for reciprocating compressors. It accepts 1 to 4 pressure transducer channels. This monitor measures discharge pressure, suction pressure, and rod reversal. Ideal for critical machinery protection.
The Bently Nevada 3500/60-01-01 is a Temperature Monitor for the 3500 Series. It accepts up to six RTD or thermocouple signals. The I/O Module Type 01 provides non-isolated internal terminations. Agency Approval Option 01 adds CSA/NRTL/C certification for Class 1, Div 2 areas. Power consumption is 7 watts nominal.
The Bently Nevada 3500/61-01-01 is a Temperature Monitor with recorder outputs. It accepts up to six RTD or thermocouple signals. The I/O module type is 01 for RTD/TC non-isolated with internal terminations. Agency approval option 01 provides CSA/NRTL/C certification for Class 1, Div 2 areas.
The Bently Nevada 3500/22M-01-01-00 is a Transient Data Interface (TDI) module with I/O. It features a standard TDI type (01) and a 10Base-T/100Base-TX Ethernet I/O module (01). This module enables communication with 3500 configuration software and System 1 software. It includes front panel USB-B and relay outputs.
The Bently Nevada 3500/42-02-00 Proximitor Seismic Monitor accepts up to four transducer signals. It supports proximity, velocity, and acceleration inputs. This monitor provides buffered outputs and recorder signals. Ideal for radial vibration, thrust, and eccentricity measurements.
The Bently Nevada 3500/94M-03-00-01 is a VGA display module for industrial monitoring systems. It features a 10-inch panel mount display. This module supports hazardous locations with CSA/NRTL/C approval. It operates from -20°C to 65°C. Use it with the 3500/22 TDI module for full functionality.
The Bently Nevada 3500/25-01-01-02 is an Enhanced Keyphasor Module for 3500 racks. It accepts two transducer signals from proximity probes or magnetic pickups. ATEX/IECEx/CSA approval makes it suitable for Zone 2 hazardous areas.
