Why the IC200MDL741 Matters for Your Control System
When a discrete output module fails, production stops. That is why maintenance engineers need components they can trust. The GE Fanuc IC200MDL741 delivers dependable performance for demanding industrial environments. It belongs to the Versamax series, a name known for modular flexibility and robust design.
This module provides 16 discrete outputs in a single group. It operates on a 24 Volts DC nominal output voltage, with a range of 18 to 30 Volts DC. This flexibility helps accommodate varying field conditions without extra components.
Key Technical Specifications of the IC200MDL741
Understanding the specifications helps you plan your installation and avoid costly mistakes. Here are the critical parameters for the IC200MDL741:
- Brand: GE Fanuc
- Series: Versamax
- Part Number: IC200MDL741
- Product Type: Discrete Output Module
- Module ID: FFFF8080
- Number of Points: 16 Outputs
- Number of Groups: 1
- Output Voltage: 18 to 30 VDC, 24 VDC nominal
- Group to Group Isolation: None
- Point to Point Isolation: None
- LED Indicators: One LED per point, plus "OK" and "FLD PWR" LEDs
- Backplane Current Consumption: 5 Volts, 75 milliamps
- Protection: Short circuit, overcurrent, free-wheeling diodes
- External Power Supply: 18 to 30 VDC, 24 VDC nominal
The module uses positive logic and sourcing outputs. It switches the load to the positive side of the external DC supply. This design simplifies wiring for many field devices.
Built for Reliability and Easy Maintenance
From a maintenance perspective, the IC200MDL741 offers several advantages. The LED indicators show the on/off status and overload status for each point. This feature speeds up troubleshooting and reduces downtime.
The module includes electronic overcurrent protection and short circuit protection. These safeguards help prevent damage to the module and connected equipment. Free-wheeling diodes protect against inductive load spikes, which is critical for solenoid and relay loads.
Installation is straightforward. The module supports hot insertion, allowing you to replace it without powering down the system. It can be mounted in any orientation on a DIN rail that is electrically grounded for EMC protection. This flexibility simplifies panel layout and maintenance access.
Real-World Applications and Business Value

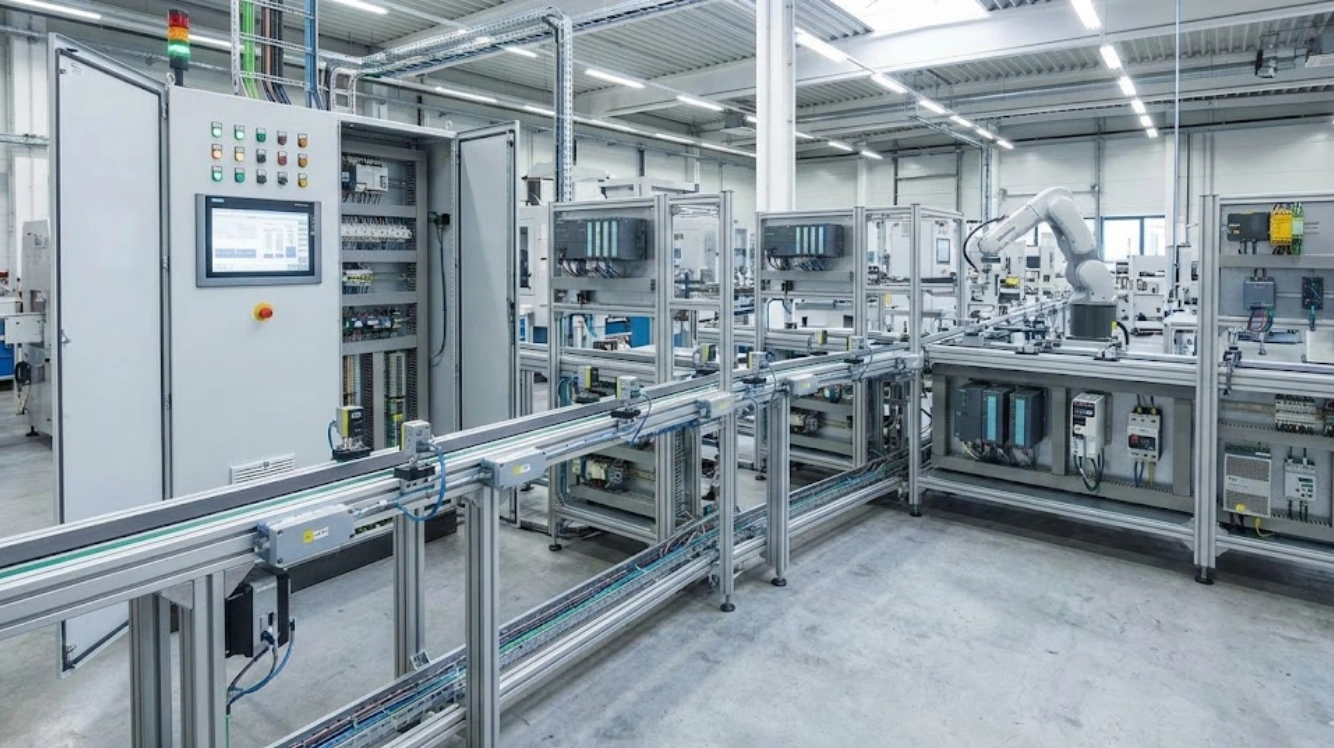

In a typical packaging line, the IC200MDL741 controls actuators and conveyor motors. Its 16 outputs handle multiple devices in one group, reducing the number of modules needed. The 18 to 30 VDC range ensures reliable switching even with voltage fluctuations.
For a maintenance engineer, this module reduces total cost of ownership. The robust protection features minimize unplanned downtime. The clear LED diagnostics cut troubleshooting time. The modular Versamax design allows easy expansion as your application grows.
Consider a scenario where a machine has frequent output failures due to short circuits. Replacing the module with the IC200MDL741 adds protection that prevents damage. This leads to fewer replacements and lower spare parts inventory.
Integration and Compatibility
The IC200MDL741 is part of the Versamax series, designed for scalable I/O solutions. It can be used to create a standalone I/O station or expand a PLC application. The open architecture supports a wide variety of communication options, though specific protocols are not listed in the data.
For field devices that require additional power, the module accepts an external power supply from 18 to 30 VDC. Connect the DC+ and DC- terminals to points A17 and A18 on the I/O module. This external supply ensures adequate current for your loads.
Frequently Asked Questions
What is the output voltage range of the IC200MDL741?
The output voltage is 18 to 30 VDC, with a nominal rating of 24 VDC. This range allows operation with varying supply voltages.
How many outputs does the IC200MDL741 have?
It has 16 discrete outputs in a single group. Each output has its own LED indicator for status and overload detection.
Does the IC200MDL741 provide short circuit protection?
Yes, the module includes short circuit and overcurrent protection. It also has free-wheeling diodes to protect against inductive load spikes.
Can I use an external power supply with the IC200MDL741?
Yes, the module supports an external power supply from 18 to 30 VDC. Connect the DC+ and DC- terminals to points A17 and A18.
Is the IC200MDL741 hot-swappable?
The module supports hot insertion, allowing replacement without powering down the system. This feature simplifies maintenance and reduces downtime.
