The SCB110-S0 from Yokogawa serves as a specialized diagnostic tool for digital input circuits in industrial safety systems. Unlike standard I/O modules, this adapter focuses on wiring integrity verification. Specifically, it enables defective short-circuit detection while the system accepts ON signals. The SCB110-S0 belongs to the SCB110 series and carries the standard type suffix code "-S" with a fixed "0" designation. Engineers deploy this adapter during commissioning, maintenance, and troubleshooting to distinguish field wiring faults from genuine equipment states.
The core function of the SCB110-S0 centers on detecting abnormally low-resistance conditions in digital input loops. It identifies crushed cables, bridged terminals, and insulation failures that could cause false ON indications. Additionally, the adapter complies with ISA Standard G3, ensuring resistance to corrosive gases such as hydrogen sulfide and sulfur dioxide. This environmental protection makes the SCB110-S0 suitable for harsh industrial settings including chemical plants and offshore platforms.
Key Diagnostic and Environmental Parameters:
Function: Defective short-circuit detection during ON-signal acceptance.
Environmental Rating: ISA Standard G3 corrosion resistance.
Detection Principle: Impedance-based fault monitoring.
Operating Mode: Passive, continuous diagnostic supervision.
Suffix Codes: -S = Standard type; 0 = Always 0.
Weight: Approximately 0.1 kg.
The adapter features a compact design for integration into existing wiring arrangements. It installs between field wiring terminals and digital input modules without requiring external power. Moreover, the passive monitoring design ensures the adapter does not interfere with normal process signals. The ISA G3 rating provides long-term reliability in environments containing corrosive elements, protecting internal circuitry from degradation.
Physical Characteristics:
Installation: In-line with field wiring or terminal block mounting.
Power Requirement: None (passive device).
Environmental Compliance: ISA Standard G3.
Operating Temperature: Suitable for standard industrial control cabinets.
Proper integration ensures accurate diagnostics without disrupting loop operation. First, verify that the target system supports the SCB110 adapter by consulting the relevant Yokogawa manual. Next, connect the adapter in series with the field device's contact output. Pay close attention to wire polarity during installation, as incorrect connections may affect diagnostic accuracy.
The SCB110-S0 typically supports multiple channels per set, with some sources indicating eight wires per set for eight input channels. Furthermore, hot swapping is not supported; therefore, always power down the circuit before installation or replacement. Finally, document the affected channels and wiring findings after completing the check procedure.

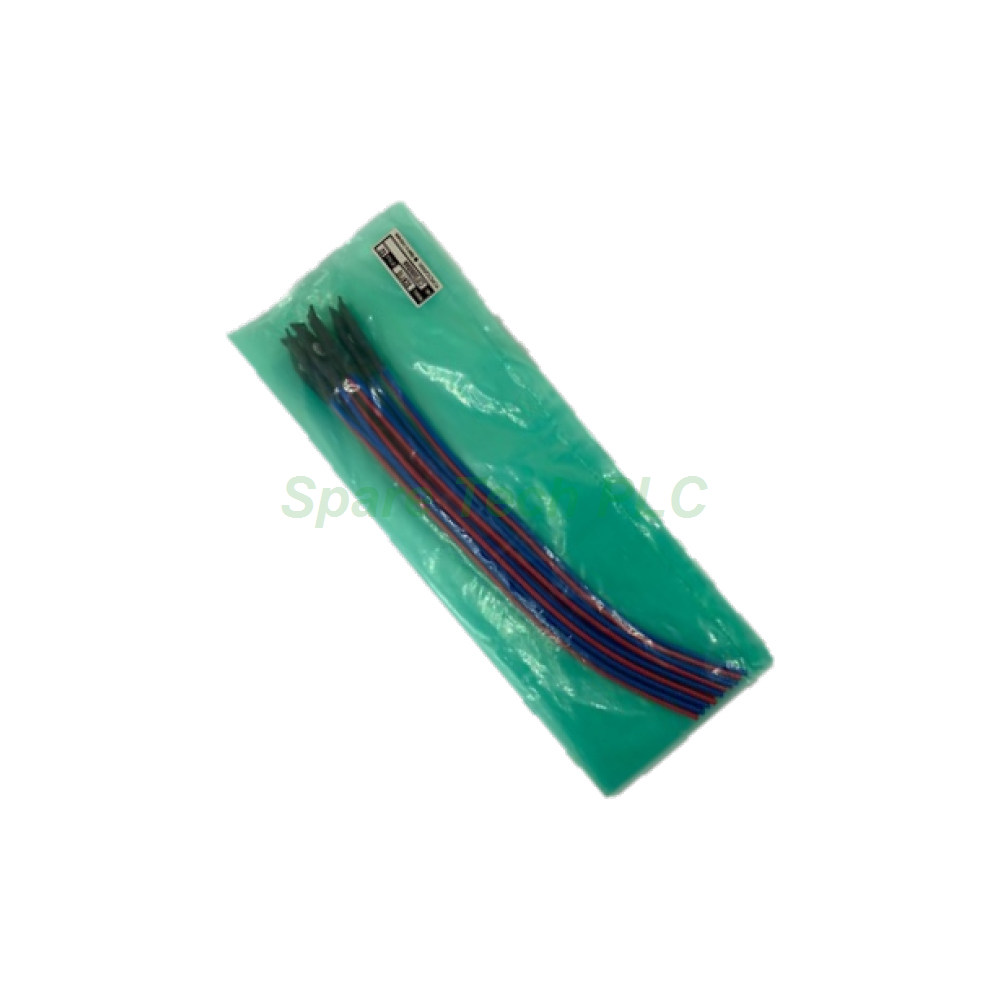

1 × Yokogawa SCB110-S0 Wiring Check Adapter (set)
1 × Wiring Reference Documentation
Q1: What is the primary function of the SCB110-S0?
A: The SCB110-S0 detects short-circuit faults in digital input wiring while signals remain in the ON state. It helps engineers identify wiring defects before they compromise safety interlock reliability.
Q2: How does this adapter differ from the SCB100?
A: The SCB100 series focuses on open-circuit detection for broken wires. In contrast, the SCB110-S0 targets short-circuit conditions such as bridged terminals or damaged insulation. Many safety systems deploy both adapters for complete loop supervision.
Q3: Does the SCB110-S0 require external power?
A: No, the adapter operates passively within the digital input signal loop. It draws no external power and introduces no active signal interference during normal operation.
Q4: What does the ISA Standard G3 rating mean for this product?
A: The G3 rating indicates compliance with ISA S71.04 for corrosive gas resistance. Consequently, the SCB110-S0 withstands exposure to hydrogen sulfide, sulfur dioxide, and other corrosive elements in harsh industrial environments.
Q5: Can the SCB110-S0 be used with any Yokogawa digital input module?
A: Compatibility depends on the specific system configuration. The adapter is commonly associated with the SDV144 input module in ProSafe-RS systems. Always verify system-level compatibility in the applicable Yokogawa manual before installation.
| Brand Name | |
| Model No. | SCB110-S0 |
| Product Type | Wiring Check Adapter |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
