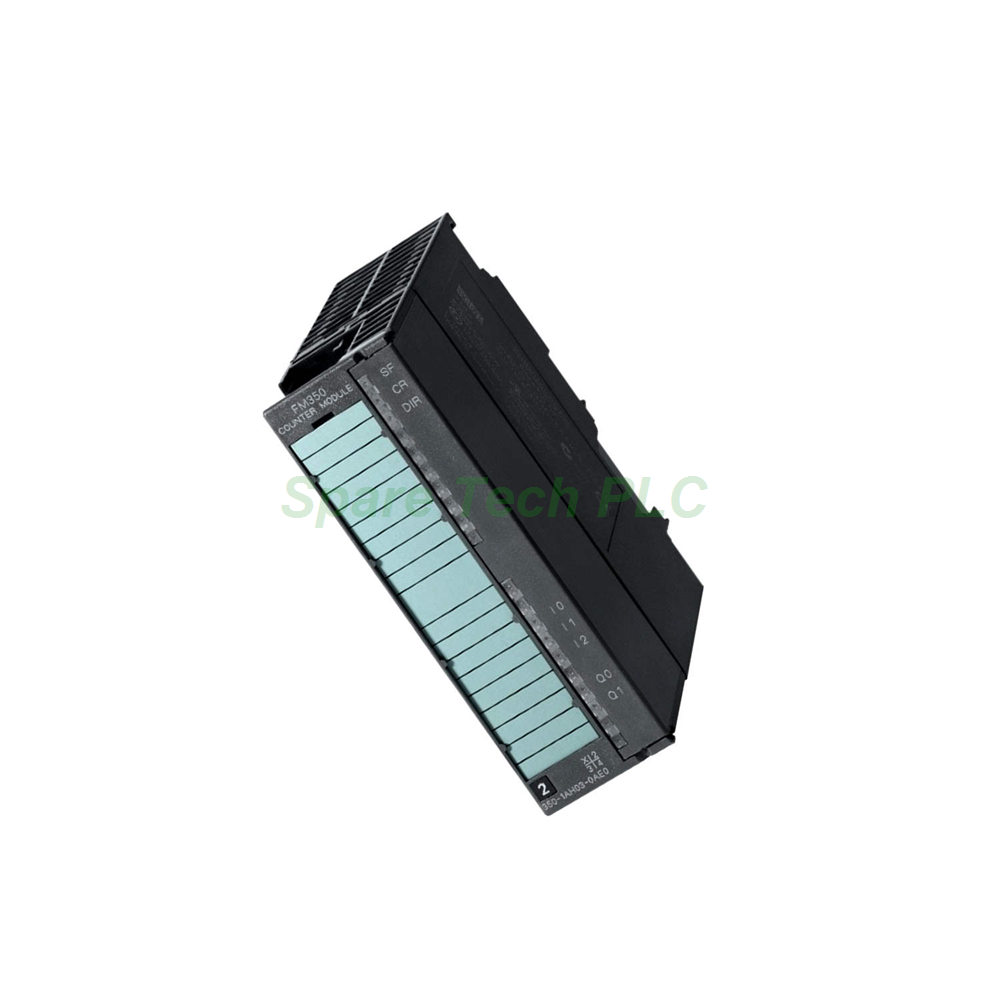

Siemens 6ES7350-1AH02-0AE0 FM350-1 Counter Module

6ES7350-1AH02-0AE0 Siemens FM 350-1 Counter Module (Discontinued)

Important Lifecycle Information for 6ES7350-1AH02-0AE0

Successor Information

• Successor model: 6ES7350-1AH03-0AE0

• Successor description: FM 350-1 with isochronous mode and measurement mode

• Same core features: 500 kHz, 1 channel, 5V/24V incremental encoders

• Additional features on successor: Isochronous mode, measurement functions

Compliance Note

• RoHS compliant: No (this product does not meet RoHS requirements)

Technical Specifications of 6ES7350-1AH02-0AE0

Counter Functions

• Maximum counting frequency: 500 kHz

• Number of channels: 1

• Encoder compatibility: 5V and 24V incremental encoders

Electrical Data

• Supply voltage: Via S7-300 backplane bus

Physical Dimensions

• Packaging dimensions (W x L x H): 13.20 x 15.20 x 5.00 cm

• Net weight: 0.259 kg

• Gross weight: approx. 0.26 kg

Commodity and Origin

• Commodity code: 85389091

• Country of origin: Germany

• EAN: 4025515066415

Successor Comparison: 6ES7350-1AH02-0AE0 vs 6ES7350-1AH03-0AE0

Similar Features

• Both modules offer 500 kHz maximum counting frequency

• Both support 5V and 24V incremental encoders

• Each provides a single counting channel

• Both include a configuration package on CD

What the Successor Adds

• Isochronous mode for synchronized processing

• Measurement mode for additional application flexibility

• Updated design with continued Siemens support

Why Choose the Successor
First, the successor 6ES7350-1AH03-0AE0 remains in active production. Second, it receives full technical support from Siemens. Moreover, it offers enhanced functionality at a similar price point. Therefore, we strongly recommend using the successor for all new projects.

Frequently Asked Questions (FAQ)

What is the main difference between 6ES7350-1AH02-0AE0 and its successor?
The successor 6ES7350-1AH03-0AE0 adds isochronous mode and measurement mode. Both modules share the same core specifications of 500 kHz and one channel for incremental encoders.

Does the 6ES7350-1AH02-0AE0 support both 5V and 24V encoders?
Yes, it does. You can connect either 5V or 24V incremental encoders directly to this FM 350-1 module without additional converters.

Is this counter module RoHS compliant?
No, the 6ES7350-1AH02-0AE0 is not RoHS compliant. If you need RoHS compliance, please check the successor model's latest specifications.

What is the maximum counting frequency for this module?
The 6ES7350-1AH02-0AE0 supports counting functions up to 500 kHz. This makes it suitable for high-speed positioning and length measurement applications.
