Keyence LV-S41 Laser Sensor Head for LV-N Series Amplifiers

Product Introduction

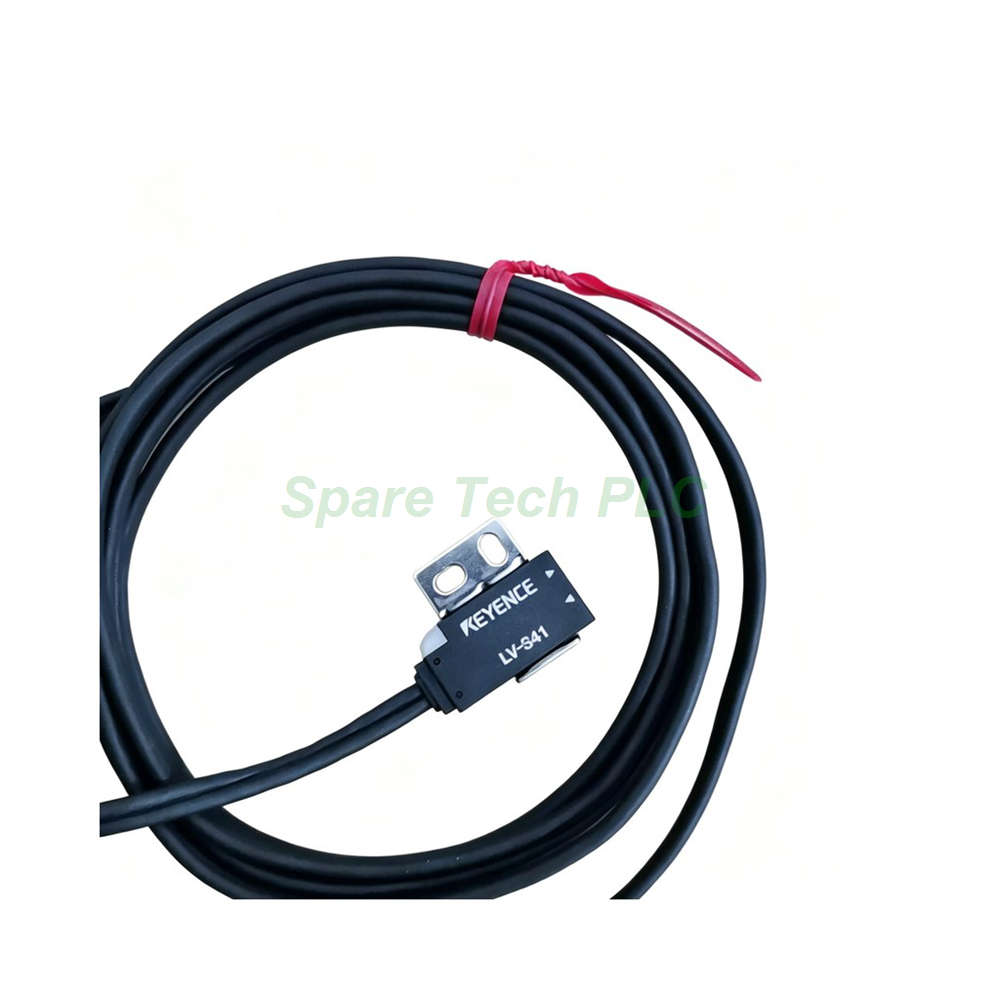

The LV-S41 belongs to Keyence's LV-S series of ultra-small digital laser sensor heads. This diffuse-reflective, spot-type model delivers reliable detection of small targets across a 600 mm maximum range when paired with an LV-N series amplifier. Its visible red semiconductor laser operates at 655 nm and meets Class 1 safety standards under FDA CDRH and IEC 60825-1 regulations. Because the sensor head receives power and signal processing through the amplifier, it requires no separate power supply or output circuitry of its own. This design simplifies wiring and reduces the footprint at the sensing point.

Technical Specifications

The LV-S41 uses a visible red semiconductor laser with a wavelength of 655 nm. Detection distance varies by amplifier mode: 600 mm in MEGA mode, 500 mm in ULTRA, 300 mm in TURBO, and 150 mm in HSP mode. The laser classification is Class 1 according to FDA CDRH Part 1040.10 and IEC 60825-1, meaning it is safe under normal operating conditions without additional protective measures. The sensor head features a glass-reinforced plastic housing that balances durability with low weight. Since the LV-S41 is a sensor head only, it contains no built-in communication ports or output transistors. All signal output and communication functions are handled by the connected LV-N amplifier unit.

Mechanical and Environmental Parameters

The sensor head operates within an ambient temperature range of -10 to +50 °C with no freezing permitted. Its compact glass-reinforced plastic enclosure keeps the unit at approximately 70 g, minimizing mechanical load on mounting brackets and moving fixtures. Specific dimensions and ingress protection ratings are not published for this model. The LV-S41 connects to the amplifier through a dedicated cable, so users should verify cable length and routing space during installation planning. For environments with fine particles or coolant mist, users should confirm suitability with Keyence technical documentation, as the sensor head does not carry a published IP rating.

Installation Guide

First, mount the LV-S41 using the appropriate bracket for your application. The ultra-small form factor allows placement in tight spaces where standard sensor heads cannot fit. Next, connect the sensor head to an LV-N series amplifier using the dedicated cable. Ensure the connector is fully seated and the locking mechanism engages. After powering the amplifier, configure the detection mode and threshold according to your target and sensing distance requirements. Specifically, choose MEGA mode for maximum range or HSP mode for close-range, high-precision work. During commissioning, verify that the laser spot aligns with the target and that ambient light does not interfere with detection. Finally, tighten all mounting hardware and perform a test cycle to confirm consistent output signals.

Packaging List

• LV-S41 sensor head × 1

• Dedicated connection cable × 1

• Mounting bracket (standard) × 1

• Installation screws × 1 set

• Product manual × 1

FAQ

Q1: Does the LV-S41 work without an LV-N amplifier?
No. The LV-S41 is a sensor head only. It requires an LV-N series amplifier to supply power and process the detection signal.

Q2: What is the maximum detection distance?
In MEGA mode, the LV-S41 reaches up to 600 mm. Shorter modes like ULTRA, TURBO, and HSP reduce range but improve response time and precision.

Q3: Is this sensor suitable for detecting small parts?
Yes. The spot-type diffuse-reflective design and 655 nm visible laser make the LV-S41 well suited for small-target detection in assembly and positioning tasks.

Q4: What laser class is this product?
The LV-S41 is a Class 1 laser product under FDA CDRH Part 1040.10 and IEC 60825-1. It is safe for normal operation without special eye protection.

Q5: How fast can you ship this item?
We ship via Fedex, UPS, and DHL. In-stock orders typically dispatch within 1–3 business days after payment confirmation.
