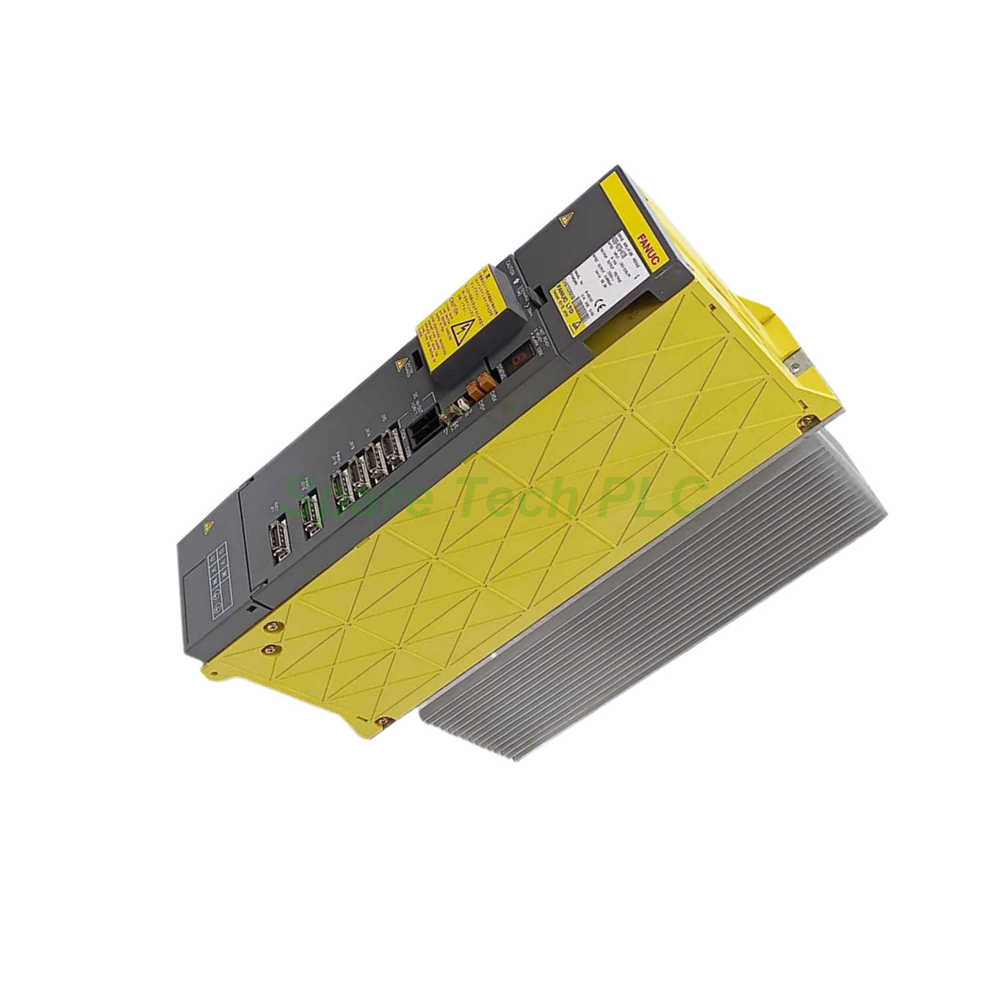

FANUC A06B-6079-H106 Servo Amplifier 52.2A

A06B-6079-H106 FANUC High-Current Servo Amplifier

Product Introduction

The FANUC A06B-6079-H106 servo amplifier delivers substantial power for heavy-duty CNC axes and spindle applications. With a rated current of 52.2 A, this drive handles large motors that require high torque during roughing cuts or rapid acceleration. Specifically, this model converts 283–325 VDC input into precise three-phase AC output, ensuring smooth motion even under fluctuating loads.

This servo drive employs a PWM (Pulse Width Modulation) interface, which allows fine-grained control over motor current and velocity. The PWM switching frequency remains optimized for low acoustic noise and high efficiency. Consequently, the A06B-6079-H106 achieves responsive performance in milling, turning, and grinding machines where surface finish quality depends on minimal torque ripple.

Furthermore, the unit operates within an ambient temperature range of 0°C to 55°C, matching standard industrial conditions. Its air-cooled design uses a built-in fan to dissipate heat effectively, maintaining internal temperatures well below critical limits. Weighing only 6.80 kg, this servo amplifier remains compact enough for crowded cabinets, yet its construction withstands the vibration typical of heavy machining.

Protection features include overload, overcurrent, and overvoltage safeguards. These circuits continuously monitor input voltage, output current, and thermal conditions. If any parameter exceeds safe thresholds, the FANUC A06B-6079-H106 shuts down gracefully, preventing damage to both the drive and the connected motor. This reliability makes it a preferred choice for 24/7 production environments.

Technical Specifications (Electrical)

• Manufacturer: FANUC

• Part Number: A06B-6079-H106

• Input Voltage: 283–325 VDC

• Frequency (AC supply): 50/60 Hz (via external power supply)

• Rated Current: 52.2 A

• Control Type: PWM interface

• Cooling Method: Air cooled (forced fan)

• Protection: Overload, overcurrent, overvoltage

• Application: CNC systems (spindle and feed axes)

This module pairs seamlessly with FANUC's power supply units that provide the required DC bus voltage. Additionally, the servo drive supports both incremental and absolute encoder feedback, enabling precise position loops. For multi-axis systems, multiple A06B-6079-H106 units can share a common DC bus, simplifying power distribution and reducing overall component count.

Mechanical & Environmental Parameters

• Weight: 6.80 kg (15.00 lbs)

• Operating Temperature: 0°C to 55°C

• Storage Temperature: –20°C to 60°C (typical)

• Humidity: ≤90% RH (non‑condensing)

• Vibration: ≤0.5G (operational)

• Mounting: Vertical or wall‑mounted

The vertical mounting orientation promotes natural convection alongside forced-air cooling. Meanwhile, the compact footprint—approximately 260 mm wide by 170 mm deep—fits into standard 19‑inch racks with optional brackets. Regular maintenance includes cleaning the fan intake every three months to prevent dust accumulation, which can reduce airflow and shorten component life.

Installation Guidelines

Begin by securing the FANUC A06B-6079-H106 to a flat, grounded backplate using M5 screws through its four mounting holes. Ensure the unit stands vertically with at least 120 mm of open space above and below the fan vents. Restricted airflow will cause overheating, especially when operating near the 55°C ambient limit.

For electrical hookup, follow these steps:

1. Connect the DC input cables from the power supply to terminals P (+) and N (–).

2. Wire the motor's U, V, and W phases to the corresponding output terminals.

3. Attach the encoder feedback cable to the CN2 port, securing the locking screws.

4. Connect the ground terminal to the cabinet earth bar using a separate, low‑impedance wire.

5. Torque power terminals to 1.5 N·m and signal connectors to 0.4 N·m.

Additionally, shield all feedback cables and route them away from high‑power lines. A minimum separation of 150 mm between power and signal cables helps maintain signal integrity. For installations with motor leads exceeding 15 meters, install output reactors to suppress voltage reflections.

Packaging & Shipping Information

Each servo amplifier ships in a reinforced carton with ESD‑safe foam padding. The package includes:

• A06B-6079-H106 amplifier unit (1 pc)

• Mounting screw set (4 pcs)

• Terminal cover (pre‑attached)

• Quick‑reference wiring sheet

• Moisture‑absorbing sachet

Note: Motor cables, encoder extension leads, and external fuses are not supplied.
All orders are dispatched via FedEx, UPS, or DHL with end‑to‑end tracking. Worldwide delivery typically takes 3–8 business days, subject to customs clearance in the destination country.

Frequently Asked Questions (FAQ)

Q1: Can the A06B-6079-H106 drive a spindle motor directly?
Yes, this servo drive is well‑suited for spindle applications. Its 52.2 A rating supports medium‑to‑large spindle motors. However, verify your motor's continuous current does not exceed this limit.

Q2: What input voltage tolerance does this module have?
The A06B-6079-H106 accepts 283–325 VDC. Operating outside this range triggers the overvoltage or undervoltage protection. Always measure the DC bus before connecting the unit.

Q3: Is the fan replaceable in the field?
Yes, the cooling fan is a field‑replaceable part. FANUC offers a spare fan kit. Replace it if you hear unusual noise or if the unit frequently triggers thermal alarms despite clean vents.

Q4: How do I set the PWM switching frequency?
PWM frequency is fixed by the drive's internal firmware. You cannot adjust it manually. However, the FANUC amplifier automatically optimizes switching patterns based on motor parameters stored in the CNC controller.

Q5: Can I parallel two A06B-6079-H106 units for higher current?
No, paralleling is not supported. For currents beyond 52.2 A, select a larger FANUC model or use a dedicated spindle drive. Paralleling may cause current imbalance and premature failure.
