Delta VFD45AMS43ANSAA MS300 30 HP AC Drive

VFD45AMS43ANSAA Delta 460V 3-Phase Vector Control Drive

Product Introduction

The Delta VFD45AMS43ANSAA represents the advanced MS300 series of compact vector control drives. Specifically, this model delivers 30 HP (22 kW) of motor power and operates on a 460V three-phase input. Meanwhile, it offers dual rating modes: 45 Amps for heavy-duty applications and 49 Amps for normal-duty operation.

Engineered for demanding industrial environments, this drive supports both induction motors (IM) and permanent magnet motors (PM). Consequently, it provides high starting torque and fast response to load impacts. Furthermore, the VFD45AMS43ANSAA includes a built-in brake chopper, enhancing its braking capability for rapid deceleration.

The MS300 series prioritizes space efficiency with a compact F1 frame design. In addition, it allows side-by-side installation without derating, saving valuable panel space. Moreover, this model features a removable 5-digit LED keypad for remote operation, adding flexibility to system layouts.

Technical Specifications

• Manufacturer : Delta Electronics

• Input Voltage : 460 VAC, 3-phase (range: 380 to 480 VAC)

• Motor Power : 22 kW (30 HP)

• Heavy Duty Current : 45 Amps (150% for 60 seconds; 200% for 3 seconds)

• Normal Duty Current : 49 Amps (120% for 60 seconds; 150% for 3 seconds)

• Frequency Range : 0 to 599 Hz

• Frame Size : F1

• Enclosure Rating : IP20

• EMC Filter : Optional (not included)

• Cooling Method : Fan cooling

• Dimensions (H x W x D) : 11.81 x 6.89 x 7.56 inches (300 x 175 x 192 mm)

• Net Weight : 6.4 kg (14 lbs)

This drive supports multiple motor control modes, including V/F, sensorless vector, and closed-loop vector control. Additionally, it features built-in PLC functionality for executing simple logic programs. The VFD45AMS43ANSAA also includes a standard built-in RS-485 port with Modbus protocol for easy integration.

Communication and Connectivity

The VFD45AMS43ANSAA offers outstanding communication flexibility through its modular design. For instance, the built-in RS-485 interface supports Modbus for basic networking. Meanwhile, optional communication cards expand connectivity to various industrial networks, including:

• CANopen

• PROFIBUS DP

• DeviceNet

• MODBUS TCP

• EtherNet/IP

• EtherCAT

• PROFINET

Therefore, this drive integrates seamlessly into both legacy and modern automation systems. Furthermore, the removable keypad allows for convenient parameter copying and remote operation.

Mechanical and Environmental Parameters

• Operating Temperature : -10°C to 50°C (derating required above 40°C)

• Storage Temperature : -20°C to 60°C

• Humidity : Below 90% RH (non-condensing)

• Altitude : Up to 1000 meters without derating

• Vibration : 1.0 G (9.8 m/s²) maximum

The Delta VFD45AMS43ANSAA features a robust IP20 enclosure, suitable for panel mounting in controlled environments. Besides, its compact F1 frame allows for side-by-side mounting, maximizing panel density. Meanwhile, the drive includes Deceleration Energy Backup (DEB) functionality to prevent DC bus undervoltage during sudden power dips.

Installation and Mounting Guide

Proper installation of the VFD45AMS43ANSAA ensures optimal performance and longevity. Follow these guidelines for best results:

1. Mounting Orientation : Install the drive vertically on a flat, non-flammable surface. Use all four mounting holes for secure attachment.

2. Clearance Requirements : Maintain at least 100 mm above and below for airflow. Additionally, side clearance can be minimal due to the side-by-side design.

3. Environmental Conditions : Avoid locations with excessive dust, moisture, or corrosive gases. Otherwise, the drive's service life may be compromised.

4. Cable Routing : Use shielded cables for control wiring. Meanwhile, separate power input and motor output cables to reduce EMI effects.

5. Grounding : Connect the ground terminal securely to the system earth ground. Furthermore, use a low-impedance ground path for safety.

Always disconnect input power before starting installation. Moreover, verify that the motor nameplate matches the drive's rated voltage and current.

Packaging and Shipping Information

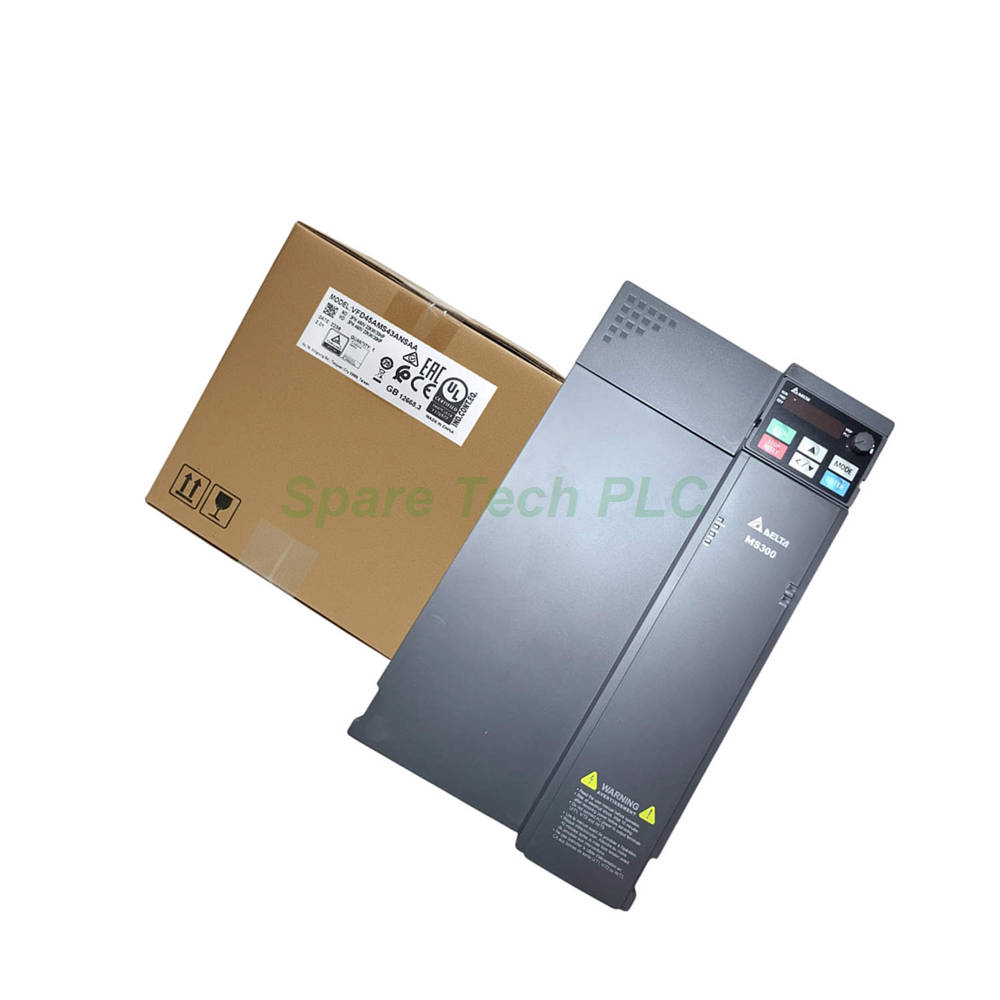

Your package for the Delta VFD45AMS43ANSAA includes:

• 1 x Delta VFD45AMS43ANSAA AC drive unit

• 1 x Quick start guide (printed)

• 1 x Mounting screws set

• 1 x Keypad dust cover (pre-installed)

Each unit is carefully packaged in a reinforced carton with anti-static protection. Finally, we ship globally via FedEx, UPS, or DHL for reliable and trackable delivery.

Frequently Asked Questions (FAQ)

Q1: What is the difference between heavy duty and normal duty ratings?
A1: Heavy duty provides 45A with 150% overload for 60 seconds. Meanwhile, normal duty offers 49A with 120% overload for 60 seconds, suitable for variable torque loads.

Q2: Does this drive support permanent magnet motors?
A2: Yes, the VFD45AMS43ANSAA supports both induction motors (IM) and permanent magnet motors (PM) with vector control.

Q3: Is the EMC filter included with this model?
A3: No, the EMC filter is optional and sold separately. However, the drive is designed to accommodate it easily.

Q4: Can I install this drive side-by-side with other units?
A4: Absolutely. The compact F1 frame design allows side-by-side installation without any derating requirements.

Q5: What communication protocols are built-in?
A5: RS-485 with Modbus comes standard. Additionally, you can add optional cards for CANopen, PROFIBUS DP, EtherNet/IP, PROFINET, and more.
