Control Unit | 6SL3243-0BB30-1FA0 Siemens

Product Introduction

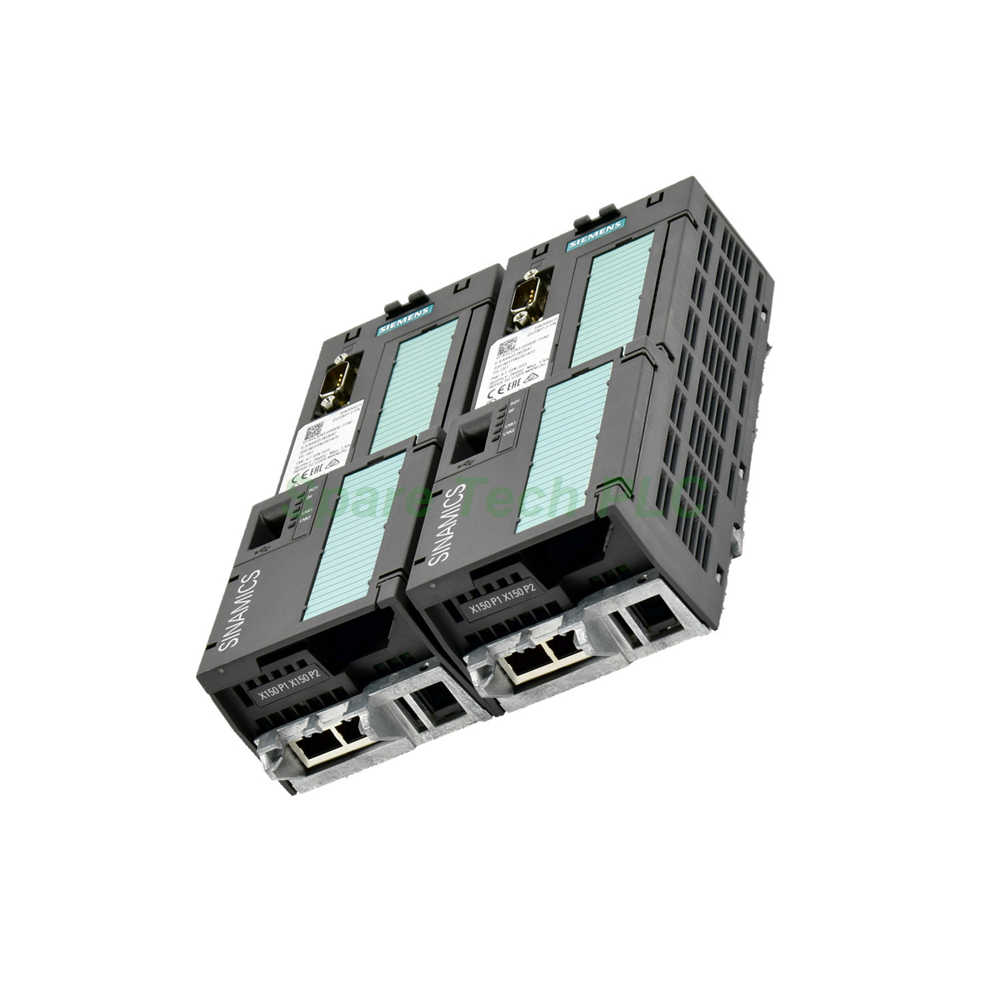

The 6SL3243-0BB30-1FA0 CU230P-2 PN is a versatile control unit from Siemens for the SINAMICS drive family. This module connects directly to compatible Power Modules, forming a complete drive system for variable-speed motor control. Furthermore, it supports dual communication protocols: PROFINET and EtherNet/IP, enabling seamless integration into both Siemens and third-party automation networks. Additionally, the unit offers multiple closed-loop control techniques, including sensorless vector control, V/f linear/square-law, and encoderless torque control. Consequently, it accommodates a broad spectrum of applications, from standard pumps and fans to more demanding conveyor and material handling systems. Its compact design and wide operating temperature range make it suitable for cabinet installation in diverse industrial environments.

Technical Specifications

Power Supply and Consumption

The 6SL3243-0BB30-1FA0 requires a DC 24 V supply, which can be drawn either from the connected Power Module or from an external source. The permissible external voltage range spans from DC 20 V to 29 V, offering flexibility in system design. Maximum current consumption is 0.50 A, while power loss is rated at 5.50 W. These low figures contribute to energy efficiency and reduced cooling requirements within the control cabinet. Moreover, the unit incorporates protection against voltage dips and transients, ensuring stable operation even under fluctuating supply conditions.

Communication Interfaces

This control unit features a dual-port PROFINET interface with integrated switch, supporting line or star network topologies. It also speaks EtherNet/IP, making it compatible with Rockwell Automation and other CIP-based systems. The communication processor handles real-time (RT) and isochronous real-time (IRT) classes, enabling synchronized motion control applications. Additionally, the integrated web server allows remote diagnostics and parameter access via a standard web browser, simplifying maintenance procedures.

Inputs and Outputs

Digital Inputs and Outputs

The 6SL3243-0BB30-1FA0 provides six standard digital inputs with switching thresholds of 11 V (0→1) and 5 V (1→0). These inputs accept signals from standard 24 V sensors and switches. For outputs, the unit includes two relay changers (changeover contacts) and one relay make contact. The relay changers handle inductive loads up to DC 250 V, 2 A, or resistive loads up to DC 30 V, 0.5 A. The make contact supports resistive loads of DC 30 V, 0.5 A. These relay outputs are ideal for controlling contactors, indicators, or small actuators directly from the drive.

Analog Inputs and Outputs

Furthermore, the CU230P-2 PN offers two differential analog inputs, suitable for connecting external sensors such as pressure transducers or thermocouples. It also provides two non-isolated analog outputs for transmitting process variables to external instruments or PLCs. The analog inputs and outputs support standard 0-10V or 4-20mA signals, configurable via software parameters. This rich I/O set reduces the need for external I/O modules, saving space and cost.

Closed-Loop Control Techniques

V/f Control Modes

The 6SL3243-0BB30-1FA0 supports multiple V/f control strategies. The linear V/f mode suits constant torque applications like conveyors. The square-law V/f mode is optimized for variable torque loads such as fans and pumps. Additionally, the V/f with flux current control (FCC) improves dynamic response and low-speed torque. The V/f ECO modes further enhance energy efficiency by reducing voltage during partial load conditions.

Vector and Torque Control

For more demanding applications, the unit provides sensorless vector control, which estimates motor speed and flux without a physical encoder. This technique delivers excellent torque accuracy and dynamic performance over a wide speed range. Moreover, the encoderless torque control capability allows direct torque regulation without feedback devices, simplifying installation and reducing system cost. However, this unit does not support vector control with an encoder nor torque control with an encoder, as those functions require the CU240E or higher variants.

Environmental and Mechanical Specifications

Ambient Conditions

The 6SL3243-0BB30-1FA0 operates reliably within an ambient temperature range of -10°C to +60°C. During storage, it withstands temperatures from -40°C to +70°C. Relative humidity during operation can reach up to 95% (non-condensing), making it suitable for humid environments like textile mills or food processing plants. Additionally, the unit complies with SEMI F47 standards for voltage sag immunity, ensuring stable performance in semiconductor and other sensitive manufacturing facilities.

Mechanical Dimensions and Weight

This control unit measures 73.0 mm in width, 199.0 mm in height, and 65.5 mm in depth. Its compact footprint allows efficient use of cabinet space, especially in multi-axis configurations. The net weight is 0.61 kg (1.34 lb), which minimizes stress on DIN rails and mounting hardware. The enclosure meets IP20 protection (UL open type), suitable for installation in clean, dry indoor environments with adequate clearances.

Installation and Wiring Guidelines

Mounting Instructions

Mount the 6SL3243-0BB30-1FA0 onto a standard 35 mm DIN rail inside a control cabinet. Ensure sufficient clearance above and below for airflow and cable routing. Maintain a minimum of 50 mm free space on all sides to prevent overheating. Use the integrated snap-on mechanism for quick and secure attachment. For enhanced vibration resistance, consider using the optional locking clips.

Wiring Recommendations

For signal connections, use conductors with cross-sections from 0.15 mm² to 1.50 mm² (AWG 24 to AWG 16). Strip the insulation to 8-10 mm and terminate with ferrules for reliable connections. Route power cables separately from signal cables to avoid electromagnetic interference. Ground the shield of analog and communication cables at both ends, preferably using the provided grounding terminals. Finally, torque all terminal screws to 0.5-0.6 Nm according to the product manual.

Frequently Asked Questions (FAQ)

1. Can the CU230P-2 PN control a permanent magnet synchronous motor (PMSM)?
Yes, this control unit supports permanent magnet motors when configured with sensorless vector control. However, encoderless torque control may not achieve full rated torque at zero speed. For critical applications, consider adding a feedback encoder and switching to a higher-performance control unit.

2. How many drives can I network via PROFINET with this unit?
The CU230P-2 PN can operate as a standalone drive or as part of a large PROFINET network with up to 256 devices. The integrated switch allows daisy-chaining multiple drives without external switches, simplifying cabling for line topologies.

3. What happens during a communication loss?
You can configure a fail-safe response via the parameter set. Options include stopping the motor with a ramp, applying a dynamic brake, or maintaining the last setpoint. The unit also generates an alarm that can be read via the operator panel or web server.

4. Does this unit support safety functions like STO (Safe Torque Off)?
No, the CU230P-2 PN does not include integrated safety functions. For safety-related applications requiring STO or SS1, consider the CU240E-2 PN-F or other F-type control units with built-in functional safety features.

5. Can I upgrade the firmware of this control unit?
Yes, firmware updates are available through Siemens Support Portal. You can transfer new firmware via the PROFINET interface using the STARTER or TIA Portal software. Ensure the Power Module is powered on during the update process and do not interrupt power until completion.
