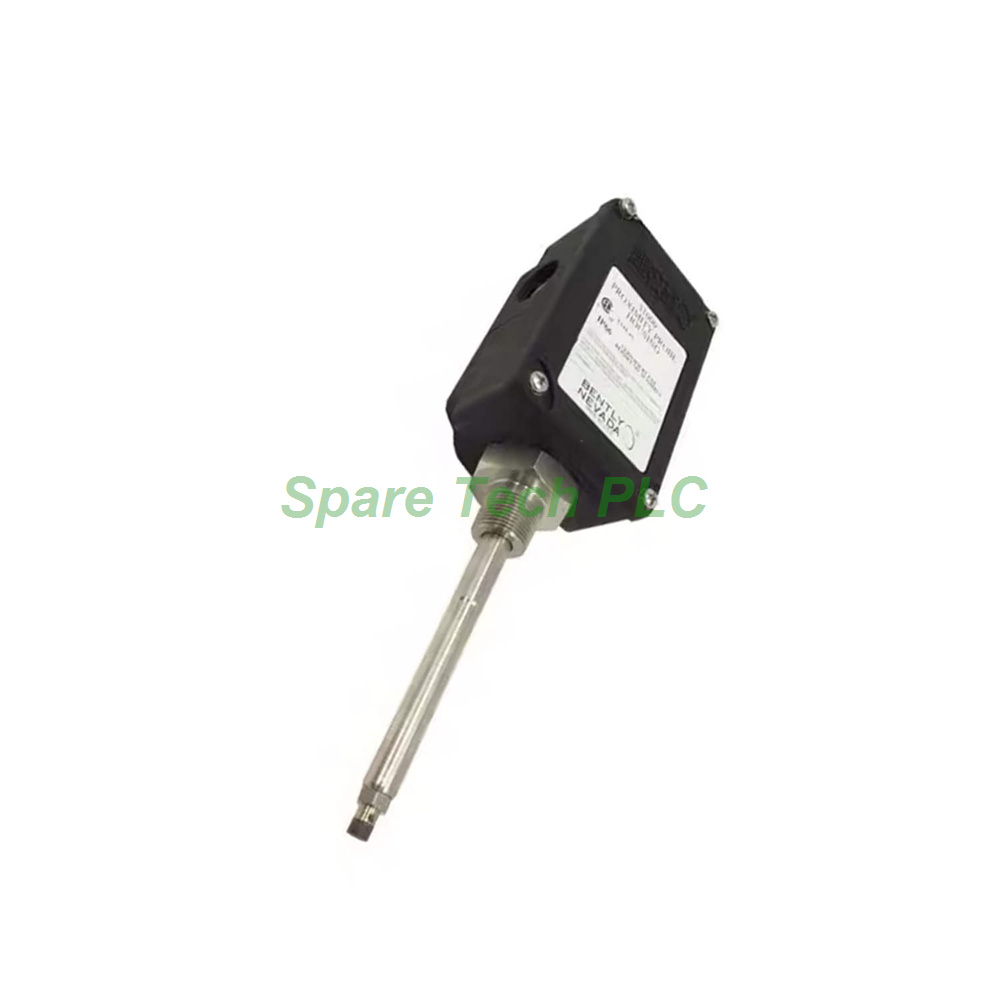

Bently Nevada 32000-28-10-00-085-03-02 Probe Housing

32000 Metric Proximity Probe Housing by Bently Nevada

Product Introduction

The Bently Nevada 32000-28-10-00-085-03-02 offers a robust solution for mounting proximity probes in critical machinery. This sensor housing specifically supports the 3300 XL 8 mm probe, making it a vital component for vibration and position monitoring systems. Manufactured in the U.S.A., this unit provides dependable protection for your sensing equipment.

First, its housing is constructed from glass-reinforced PPS thermoplastic with conductive fibers. This material choice ensures excellent durability and electrostatic dissipation. Additionally, the design incorporates AISI 304 stainless steel for the sleeve and retaining chain, while AISI 303 stainless steel is used for the outer sleeve and screws. Consequently, this combination of materials provides superior resistance to corrosion and physical stress.

Furthermore, this model includes a 1.0 m (39 in) probe cable. It comes with two plugs and one M20 fitting. The package also contains a cable seal grip with grommets designed specifically for armored probe cables. Therefore, you receive everything needed for a secure and protected cable entry.

Technical Specifications

This housing variant, 32000-28-10-00-085-03-02, comes with several key configurable options. It features a probe penetration of 85 mm. The mounting thread is 3/4-14 NPT, which is essential when using a standoff adapter. However, this unit is ordered with the 00 option, meaning it does not include a standoff adapter.

The protection ratings are exceptional. It holds a Type 4X certification from the Canadian Standards Association (CSA). Moreover, its IP66 rating has been verified, ensuring complete protection against dust and powerful water jets. It also complies with the CENELEC standard EN50014 for electrostatic dissipation of plastic materials in hazardous locations. Its impact strength is noteworthy, as BASEEFA has certified it to withstand two separate 4 Joule impacts at extreme temperatures ranging from -39°C to 115°C. Furthermore, CSA verified it can withstand a 7 Joule impact at room temperature.

Mechanical & Environmental Ratings

The operating temperature range for this Bently Nevada housing is broad. It performs reliably from -51°C to +105°C. This wide range allows for installation in both extremely cold and hot environments commonly found in heavy industry. The O-ring material is Neoprene®, which contributes to the unit's environmental sealing capabilities.

When installed correctly, this housing maintains its protective integrity. Its robust construction ensures that the internal probe remains safe from external elements. Therefore, it suits applications in sectors such as oil and gas, power generation, and paper manufacturing. For instance, it is ideal for use on turbines, compressors, and pumps.

Installation Guidelines

Preparing for installation involves several straightforward steps. First, ensure the mounting surface is clean and free of debris. Next, apply sealant to the threads of the 3/4-14 NPT fitting to guarantee a leak-proof seal. Then, carefully insert the 3300 XL 8 mm probe into the housing.

After inserting the probe, secure the cable using the provided cable seal grip. This grip is designed to accommodate armored cables, providing strain relief and a secure connection. Finally, connect the probe cable to your monitoring system. It is crucial to use the included plugs to seal any unused ports, thereby maintaining the IP66 protection rating.

Packaging List

• Bently Nevada 32000-28-10-00-085-03-02 Proximity Probe Housing (1 unit)

• Cable seal grip with grommets (1 unit)

• M20 fitting (1 unit)

• Plugs for unused ports (2 units)

Frequently Asked Questions (FAQ)

Q1: What type of probe is compatible with this housing?
A1: This housing is specifically designed for the 3300 XL 8 mm probe from Bently Nevada.

Q2: What are the key protection ratings for the 32000-28-10-00-085-03-02?
A2: It features Type 4X and IP66 ratings, offering excellent protection against dust, water, and corrosion.

Q3: Can this housing be used in a hazardous area?
A3: Yes, it meets the CENELEC standard EN50014 for electrostatic dissipation of plastic materials in hazardous locations.

Q4: What is the temperature range for this product?
A4: It operates effectively within a wide range of -51°C to +105°C.

Q5: What accessories are included with the housing?
A5: The package includes two plugs, one M20 fitting, and one cable seal grip with grommets for armored cables.
