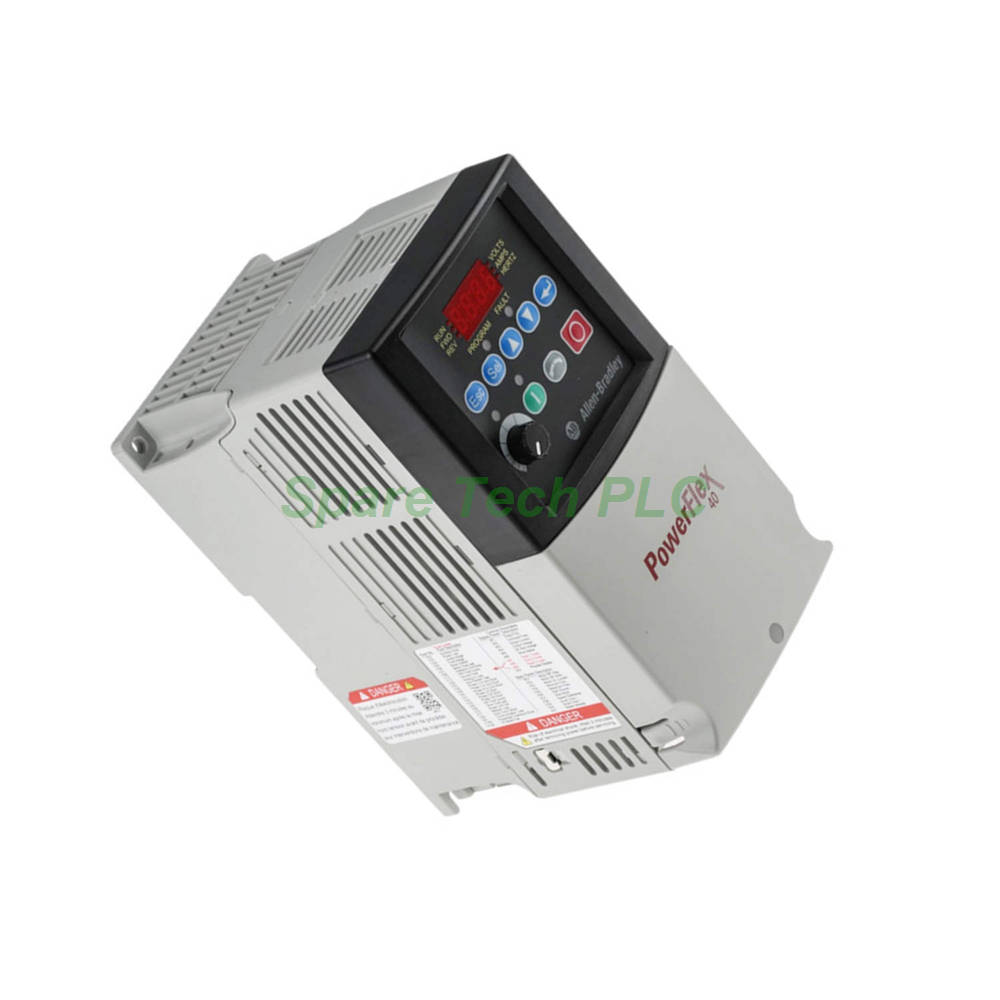

Allen-Bradley 22B-D2P3N104 PowerFlex 40 VFD

Allen-Bradley 22B-D2P3N104 PowerFlex 40 Drive

Product Introduction

The Allen-Bradley 22B-D2P3N104 belongs to the trusted PowerFlex 40 family. Manufacturers use this drive for precise motor speed control. It works with 3-phase induction motors up to 0.75 kW (1.0 HP). This model draws 2.3A continuous output current. Its input range covers 380-480VAC at 50/60Hz. You also get a built-in RS485 communication port. This makes integration with Logix PAC platforms simple. The drive includes a removable MOV for ungrounded systems. Additionally, it provides Class 10 motor overload protection.

Key Technical Specifications of 22B-D2P3N104

The 22B-D2P3N104 operates with an input voltage of 342-528VAC, 3-phase. Its input frequency range is 48-63Hz. Input current reaches 3.2A maximum. The output voltage goes from 0-460VAC, 3-phase. Output frequency adjusts from 0-400Hz. Continuous output current is rated at 2.3A. Motor power output equals 0.75 kW (1.0 HP).

For protection, this drive includes multiple features. It has ground fault protection during start and run. Overcurrent protection triggers at 300% for instantaneous faults. A hardware current limit activates at 200%. Overload protection provides 150% for 60 seconds. It also supplies 200% for 3 seconds.

Control and I/O Features

This VFD offers flexible control options. It uses sensorless vector control for precise speed regulation. Starting torque is high even at low speeds. The built-in PID loop handles process feedbacks like pressure or flow. You can set this loop for basic trim or exclusive control.

The I/O configuration includes:

• 3 fixed discrete inputs for START/STOP/REV

• 4 fully programmable discrete inputs

• 4 fully programmable discrete outputs

• 2 unipolar analog inputs (0…10V or 4…20 mA)

• 1 N.O./N.C. dry contact output

• 2 digital/optocoupler outputs

Furthermore, the RS485 port supports full integration. Drive parameters link directly to controller memory. You can modify them through user logic. Different triggers can dynamically change the drive configuration.

Mechanical and Environmental Ratings

The 22B-D2P3N104 comes in a B frame size. Its enclosure rating is IP20 / NEMA UL Type Open. This makes it suitable for panel mounting. You can also install it on a DIN rail. Installation is quick and straightforward. The operating temperature range is 0°C to 50°C. Storage temperature goes from -40°C to 85°C. Relative humidity should stay below 95% non-condensing. Altitude is limited to 1000 meters without derating.

Installation and Mounting Guide

You can mount this drive using two methods. First, use the panel mount method with screws. Second, clip it directly onto a standard DIN rail. Always ensure proper ventilation around the unit. Keep at least 50mm of free space on all sides. Do not install it near heat sources or flammable materials. Use copper wires only for power connections. Tighten the terminals to the specified torque. A disconnect switch must be installed upstream. This ensures safe maintenance access.

Packaging List

• Allen-Bradley 22B-D2P3N104 PowerFlex 40 VFD (1 unit)

• LED keypad (integrated on the drive)

• User manual quick start guide (paper copy)

• Removable MOV jumper (pre-installed)

• DIN rail mounting clips (attached)

Note: Cables, line reactors, and communication option modules are sold separately.

Shipping Information

We ship all orders with global couriers. You will receive tracking within 24 hours. Our standard carriers are FedEx, UPS, and DHL. Delivery typically takes 3-7 business days. Export packaging ensures your drive arrives safely.

Frequently Asked Questions (FAQ)

1. What motor size works with the 22B-D2P3N104?
This drive supports a 3-phase motor rated at 0.75 kW (1.0 HP) with 2.3A full load current. Do not exceed these values.

2. Can I use this drive on a single-phase supply?
No. The 22B-D2P3N104 requires a 3-phase input of 380-480VAC. Single-phase operation will cause a phase loss fault.

3. Does the drive include a built-in keypad for programming?
Yes. It comes with an LED keypad for local programming. You can also control it remotely through the RS485 port.

4. How do I reset a ground fault error on this VFD?
First, disconnect input power and wait 5 minutes. Then check motor cables for damage. Clear the fault through parameter 240. Cycle power if the fault persists.

5. Is the 22B-D2P3N104 suitable for pump control applications?
Absolutely. Its built-in PID loop handles flow and pressure feedback perfectly. This makes it ideal for pumps, fans, and conveyors.
