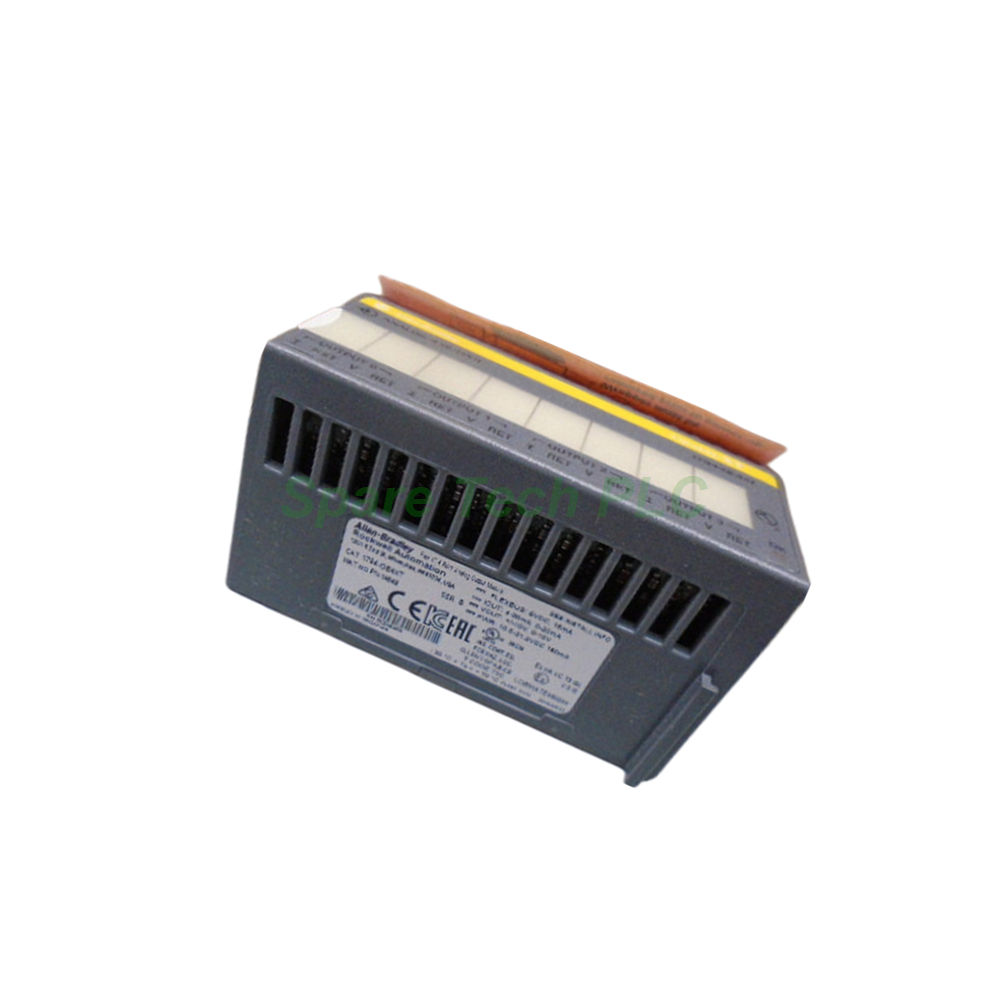

Allen-Bradley 1794-OE4XT Flex I/O Analog Output Module

Allen-Bradley 1794-OE4XT Analog Output Module

Product Introduction

The 1794-OE4XT module belongs to the renowned Flex I/O platform from Allen Bradley. This analog output device provides critical signal conversion for modern automated processes. It is specifically built to handle extreme conditions while delivering accurate voltage and current signals to field actuators. Users often choose this model for its robust design and simple integration with Logix controllers. Furthermore, the 1794-OE4XT offers four independent output channels for versatile system design.

Technical Specifications and Parameters

The 1794-OE4XT excels in delivering high-integrity analog outputs. First, its output voltage range supports a full dual-polarity span from (red)-10V to +10V(red) DC, which accommodates both positive and negative control signals. Additionally, the module provides a current output range from (red)0 to 20 mA(red), accommodating most standard industrial sensors and valves. For resistive loads, it handles (red)15 to 750 ohms(red) efficiently when powered at 24V DC, ensuring broad compatibility.

Specifically, the module requires an external power supply with a nominal rating of 24V DC. However, its input voltage range is quite flexible, accepting between (red)19.2V DC and 31.2V DC(red). This tolerance helps maintain stable operation even during minor power dips. Moreover, the outputs are configured as single-ended and non-isolated, simplifying wiring for many applications. Meanwhile, the module supports a high resolution, providing smooth and precise control signals that improve process accuracy.

Mechanical and Environmental Ratings

A key advantage of the 1794-OE4XT is its extended temperature capability. It operates continuously in ambient temperatures from (red)-25°C to +70°C(red), which suits harsh outdoor or high-heat factory environments. Storage temperatures are even broader, ranging from (red)-40°C to +85°C(red). Besides temperature, it handles relative humidity from (red)5% to 95%(red) (non-condensing), making it resistant to moisture. For vibration, it withstands 5g at 10-500Hz, and it tolerates 30g of shock. Therefore, this module is physically durable for long-term use in demanding settings.

Installation and Integration Guide

Installing the 1794-OE4XT is straightforward due to the Flex I/O system's modular design. First, the module mounts directly onto a 1794 terminal base unit, which houses the field wiring connections. Users should ensure the backplane connector is properly aligned to avoid pin damage. Next, connect the external 24V DC power supply to the designated terminals on the base. Finally, wire the analog outputs to your actuators using shielded cables to minimize electrical noise. Remember to configure the module's parameters within your Rockwell Automation software to match your specific output requirements.

Packaging and Delivery Information

Every unit ships in a protective anti-static package to prevent damage during transit. The box includes the 1794-OE4XT analog module itself, along with the necessary mounting screws. Additionally, you will find a quick-start guide that outlines basic setup steps. Please note that the terminal base unit and power supply are sold separately. We ship all orders using premium courier services like FedEx, UPS, or DHL to ensure fast and safe delivery.

Frequently Asked Questions (FAQ)

1. What types of loads can the 1794-OE4XT drive?
   The 1794-OE4XT supports resistive loads from 15 to 750 ohms at 24V DC. This range allows it to drive most analog actuators, such as valves and variable speed drives.

2. Can I use this module in a very hot environment?
   Absolutely. The 1794-OE4XT is rated for extended temperatures up to 70°C. Moreover, its robust design ensures reliable operation even in high-heat industrial zones.

3. Is the 1794-OE4XT isolated from the backplane?
   No, the outputs are non-isolated and configured as single-ended. Consequently, users should ensure proper grounding to avoid ground loop issues.

4. What software do I need to configure this module?
   You need Rockwell Automation's RSLogix 5000 or Studio 5000 software. This tool lets you set output ranges and scaling parameters for the 1794-OE4XT.

5. What is the warranty for this product?
   We include a standard 2-Year DO Supply warranty with every purchase. This covers any manufacturing defects under normal operating conditions.
