Allen-Bradley 1768-KY1 Replacement Key CompactLogix

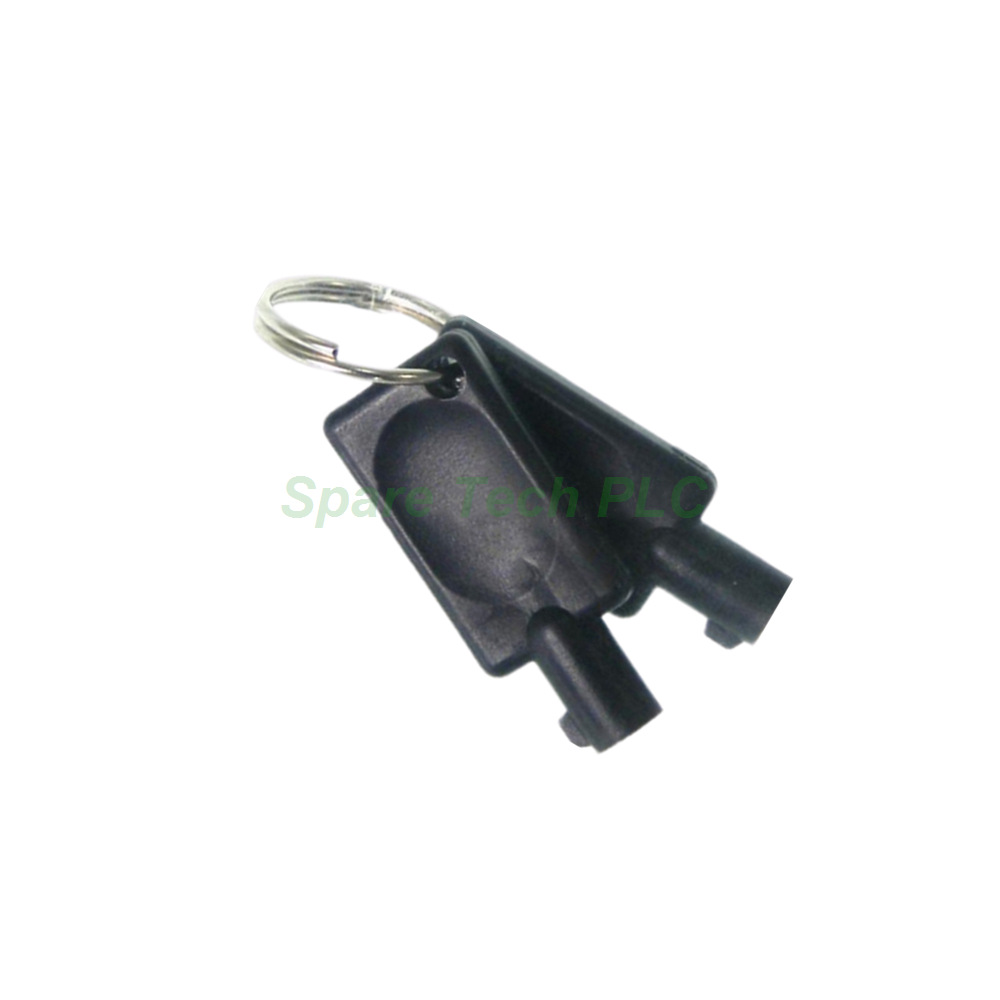

1768-KY1 Allen-Bradley CompactLogix Mode Switch Key

Product Introduction

The 1768-KY1 replacement key belongs to the Allen-Bradley product family. It serves as a direct spare for the front-panel mode selector on Bulletin 1768 CompactLogix controllers. Specifically, this key fits the 1768-L43 and 1768-L45 controller series.

Operators use this physical key to change controller operating modes quickly. Over time, the original key may become damaged or unresponsive. Instead of replacing the entire controller, you simply order the 1768-KY1 as a cost-effective spare.

This component carries the Allen-Bradley catalog number 1768-KY1 and supports both Series A and B revisions. Its compact design measures 8 x 8 x 5 inches and weighs only 2 pounds.

Importantly, the 1768-KY1 is not a universal accessory. You must only install it in compatible CompactLogix controllers. Using it outside the recommended series may cause mode-switching errors or operational faults.

Technical Specifications

The 1768-KY1 offers straightforward physical functionality. It replicates the original key's shape, size, and tactile feel.

Key parameters include:

• Manufacturer: Allen-Bradley

• Part Number: 1768-KY1

• Product Line: CompactLogix

• Module Type: Replacement Key

• Compatibility: 1768-L43 and 1768-L45 controllers only

• Series: A and B

• Shipping Weight: 2 lbs (0.9 kg)

• Shipping Dimensions: 8 x 8 x 5 inches

Additionally, this key uses durable materials to withstand frequent use. Its insertion and rotation mechanism matches the original controller socket precisely. Therefore, you can expect the same smooth operation as the factory-installed key.

Mechanical and Environmental Parameters

The 1768-KY1 operates under standard industrial conditions. It does not contain electronic components, so it has no specific temperature or humidity limits beyond the controller's own ratings.

Nevertheless, you should store the spare key in a clean, dry environment. Avoid exposure to corrosive chemicals or excessive dust.

When installed, the key becomes part of the front-panel interface. It rotates between preset positions that correspond to different controller modes. These modes are pre-configured during system setup.

Installation Guidelines

Installing the 1768-KY1 requires basic mechanical skills. However, the manufacturer strongly recommends that only trained professionals perform this task.

First, power down the CompactLogix controller completely. Next, remove the worn or broken key from its front-panel slot. Then, insert the new 1768-KY1 and rotate it gently to verify smooth movement.

Finally, power up the controller and test each mode position. Confirm that the controller responds correctly to each key setting.

Incorrect installation could lead to mismatched output power or unexpected motor behavior. For this reason, always follow the controller's user manual when replacing the 1768-KY1.

Why Choose the Genuine 1768-KY1?

Aftermarket or counterfeit keys may seem cheaper, but they often lack precise dimensions. A poorly fitting key can get stuck or fail to engage the internal switch properly.

The genuine 1768-KY1 guarantees correct fit and reliable operation. It eliminates guesswork and reduces downtime during replacement.

Moreover, using authentic Allen-Bradley parts preserves your system warranty and maintains compliance with safety standards.

Packaging and Shipping

Each 1768-KY1 ships in protective packaging to prevent damage during transit. The package includes the replacement key only.

We do not include installation tools, certificates, or warranty documents inside the box. For technical documentation, please refer to the official product resources.

We ship all orders via FedEx, UPS, or DHL. Choose your preferred carrier at checkout. Delivery times vary by destination, but most orders arrive within 3–7 business days.

Frequently Asked Questions

1. Is the 1768-KY1 compatible with CompactLogix 1768-L43 controllers?
Yes, the 1768-KY1 is fully compatible with both the 1768-L43 and 1768-L45 controller series.

2. Can I use the 1768-KY1 on a different CompactLogix model?
No, this key only fits Bulletin 1768 controllers, specifically the 1768-L43 and 1768-L45. Do not use it with other models.

3. Does the 1768-KY1 include installation instructions?
The package contains the key only. However, installation is straightforward. We still recommend having a trained technician perform the replacement.

4. How long does shipping take for the 1768-KY1?
Most orders ship within 24 hours. Delivery typically takes 3–7 business days via FedEx, UPS, or DHL.

5. What happens if I install the 1768-KY1 incorrectly?
Improper installation may cause mode-switching errors. This can lead to incorrect controller outputs. Always verify proper fit and test all positions after installation.
