AI930S ABB Analog Input 3KDE175511L9300

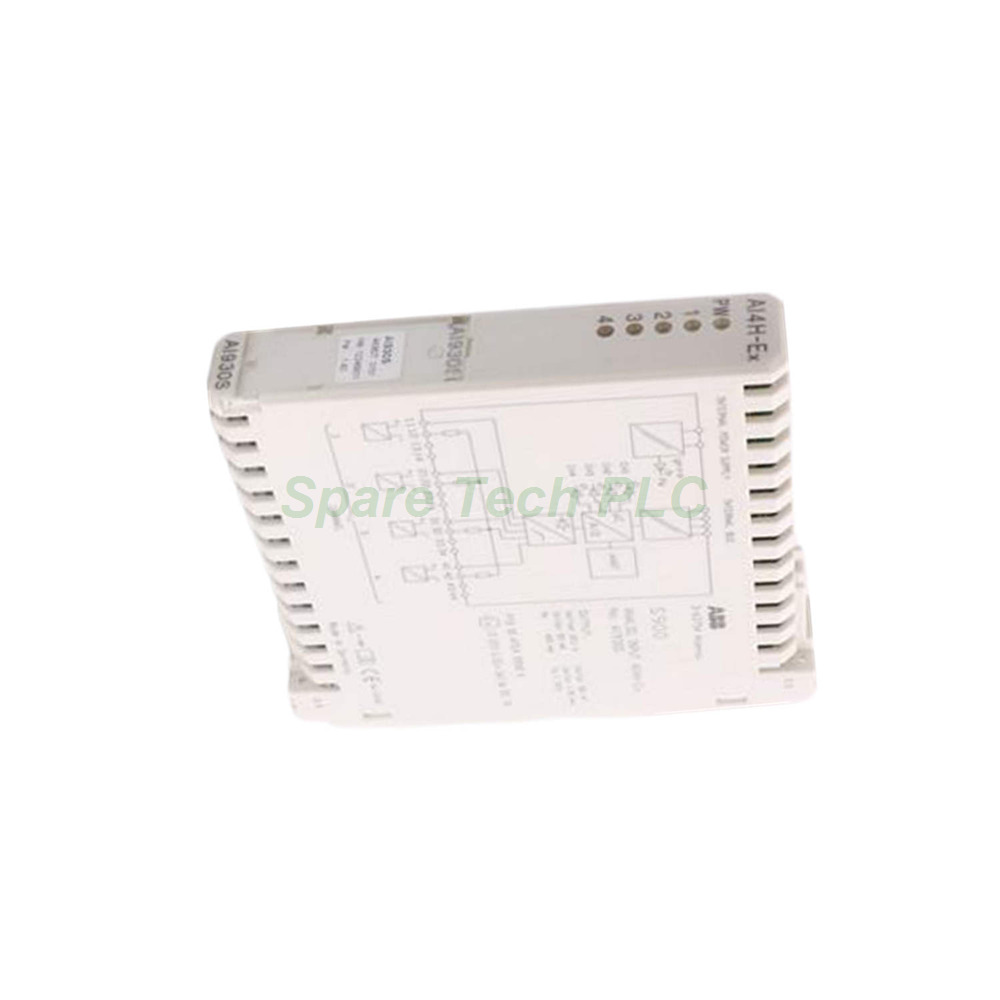

ABB AI930S Zone 1 Analog Input with Intrinsic Safety

Product Introduction

The ABB AI930S belongs to the S900 I/O Type S family. Engineers use this module in Zone 1 hazardous areas. It connects directly to intrinsically safe field devices installed in Zone 0, Zone 1, or Zone 2. The module handles 4-20mA signals from loop-powered 2-wire transmitters.

Additionally, the 3KDE175511L9300 supports HART frames via the PROFIBUS DP fieldbus. You can also access cyclic HART variables for advanced process monitoring. A key advantage is hot swap functionality. You can replace this module during operation without interrupting power. Meanwhile, short and break detection simplifies troubleshooting. The design includes electrical isolation between input/bus and input/power. Therefore, it ensures reliable signal integrity even in explosive atmospheres.

Key Technical Specifications

The ABB AI930S provides four analog input channels. All channels share a common return. The signal type is 4-20mA. HART communication is fully supported. Intrinsic safety is included, which allows connection to devices in explosive zones.

Redundancy for power and communication is not available on this variant. Nevertheless, the module supports hot configuration in run. This lets you change parameters while the system operates. Extended diagnostics are built in as well. You can configure and monitor the 3KDE175511L9300 easily using FDT/DTM tools.

ATEX Certification for Zone 1

The AI930S carries ATEX certification for Zone 1 hazardous locations. This makes it suitable for petrochemical plants, oil refineries, and gas processing facilities. The module also meets ISA-S71.04 G3 standards for corrosive atmospheres.

Climatic operating conditions allow up to 93% relative humidity at 40°C. The maximum ambient temperature ranges from -20°C to 60°C. All components receive G3 coating for added protection against corrosion.

Mechanical Dimensions and Compliance

Dimensions are extremely compact. Width equals 20 mm (0.79 in.). Depth is 104 mm (4.09 in.). Height is also 104 mm (4.09 in.). The 3KDE175511L9300 weighs only 0.14 kg (0.30 lbs.).

The module carries a CE mark for European compliance. It also complies with RoHS and WEEE directives. The WEEE category is small equipment with no external dimension exceeding 50 cm.

Installation and Mounting Guide

You can install the S900 I/O system directly in Zone 1 hazardous areas. This eliminates expensive marshalling and long wiring runs. For the ABB AI930S, ensure the enclosure meets Zone 1 requirements. The module slides onto a DIN rail inside the I/O station.

First, disconnect the backplane power. Next, insert the module until it clicks into place. Then, connect your intrinsically safe 2-wire transmitters to the terminal block. Finally, power up the system and verify diagnostics via FDT/DTM. Because hot swap is supported, you can replace a faulty 3KDE175511L9300 without stopping the controller.

Packaging List

• ABB AI930S analog input module (1 unit)

• 4-channel terminal block with intrinsic safety barriers (pre-attached)

• Product label with 3KDE175511L9300 and serial number

• Quick installation guide (printed)

Note: No certificates or warranty documents are included in the packaging. These are supplied separately.

Shipping Information

We ship using FedEx, UPS, or DHL. Each module is packed in anti-static and shock-resistant materials. Delivery usually takes 3-7 business days depending on your location.

Frequently Asked Questions (FAQ)

1. Can I use the ABB AI930S with a standard 4-20mA transmitter?
Yes, but only if the transmitter is intrinsically safe and approved for Zone 0, Zone 1, or Zone 2. For non-intrinsically safe transmitters, use the AI930N in a safe area instead.

2. What is the difference between AI930S and AI930B?
The AI930S is certified for Zone 1 hazardous areas with intrinsic safety. The AI930B is certified only for Zone 2. Both support 4-20mA and HART.

3. Does the 3KDE175511L9300 support HART communication?
Yes. This module transmits HART frames via the PROFIBUS DP fieldbus. It also reads cyclic HART variables from connected transmitters.

4. Can I replace the ABB AI930S while the system is running?
Absolutely. The module offers hot swap functionality. You do not need to interrupt primary voltage in Zone 1 installations.

5. Is the ABB AI930S redundant for power or communication?
No, this specific variant does not support redundancy. However, the S900 system offers redundancy with other modules. Please check your system configuration for details.
