ABB CI520V1 AF100 Comm Module

ABB CI520V1 AF100 Communication Interface

Product Introduction

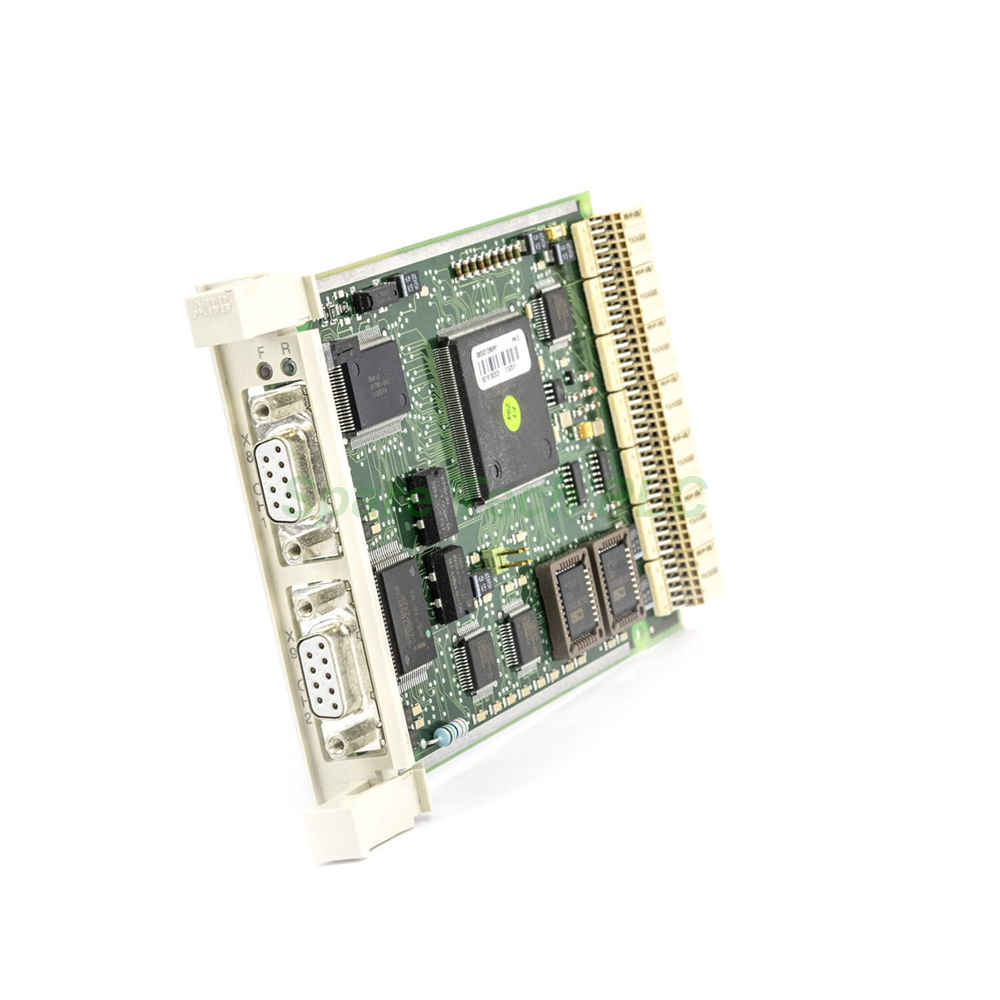

The CI520V1 module serves as a dedicated AF100 interface for ABB Advant Fieldbus systems. Many automation setups require stable fieldbus communication. Therefore, this CI520V1 exchange unit provides a direct replacement solution. It carries the product ID EXC3BSE012869R1. Consequently, users get a reliable way to restore network performance.

Key Technical Specifications

This communication module supports the AF100 protocol specifically. Meanwhile, its compact design fits into standard cabinets. The module enables high-speed data transfer between controllers and field devices. For instance, it handles cyclic and acyclic data exchange smoothly. Additionally, the CI520V1 integrates with older Advant systems as a direct swap. Furthermore, it requires no firmware changes in most cases. The operating voltage is drawn from the backplane. Therefore, external power is not necessary.

Specifically, the module’s dimensions follow ABB’s standard form factor. It weighs only 0.145 kg net. However, shipping weight is slightly higher due to protective materials. Moreover, its tariff code is 85176200, which matches communication equipment. The WEEE category does not apply. Thus disposal follows standard industrial practices.

Mechanical and Environmental Ratings

The CI520V1 operates in typical industrial environments. Meanwhile, it tolerates temperatures from 0°C to 60°C. Storage temperature ranges from -25°C to +70°C. Additionally, humidity limits are 5% to 95% non-condensing. The module resists vibration per IEC 60068-2-6. Therefore, it remains stable in control panels with moderate vibration.

Installation Guidelines

Installing the CI520V1 is straightforward. First, power down the adjacent modules. Next, align the module with the guide rails. Then press firmly until the connectors seat fully. Finally, secure the locking mechanism. Do not force the module. For instance, check for bent pins before insertion. Additionally, verify that the fieldbus cable meets AF100 specifications. Use shielded twisted-pair wiring for best results. Moreover, ground the cable shield at one end only.

Packaging and Delivery

Your CI520V1 ships in anti-static packaging. The box includes:

• One CI520V1 AF100 communication module (exchange unit)

• An instruction sheet for handling

• Protective foam inserts

However, certificates or warranty documents are not included. Shipping is arranged via FedEx, UPS, or DHL. Therefore, delivery times depend on your location. Tracking information is provided after dispatch.

Common Questions About the CI520V1

FAQ 1: Is the CI520V1 a direct replacement for older AF100 modules?
Yes, the CI520V1 exchange version replaces previous AF100 interfaces directly. No configuration changes are needed in most cases. However, always check your system’s compatibility list first.

FAQ 2: Does this module require external power?
No, the CI520V1 draws power from the Advant backplane. Therefore, no external power supply is required. Just insert it into a compatible slot.

FAQ 3: What shipping methods are available?
We ship the CI520V1 using FedEx, UPS, or DHL. Choose your preferred carrier at checkout. Express options are available for urgent needs.

FAQ 4: Can I return the old module with this exchange unit?
The CI520V1 exchange requires returning the replaced part. An RMA number is necessary. Otherwise, an extra charge may apply. Contact support for RMA instructions.

FAQ 5: What happens if the module does not communicate after installation?
First, verify the fieldbus cable wiring and termination. Then check that the CI520V1 is fully seated. Additionally, confirm that your controller configuration matches the AF100 settings. If problems persist, consult the Advant Fieldbus 100 manual.
