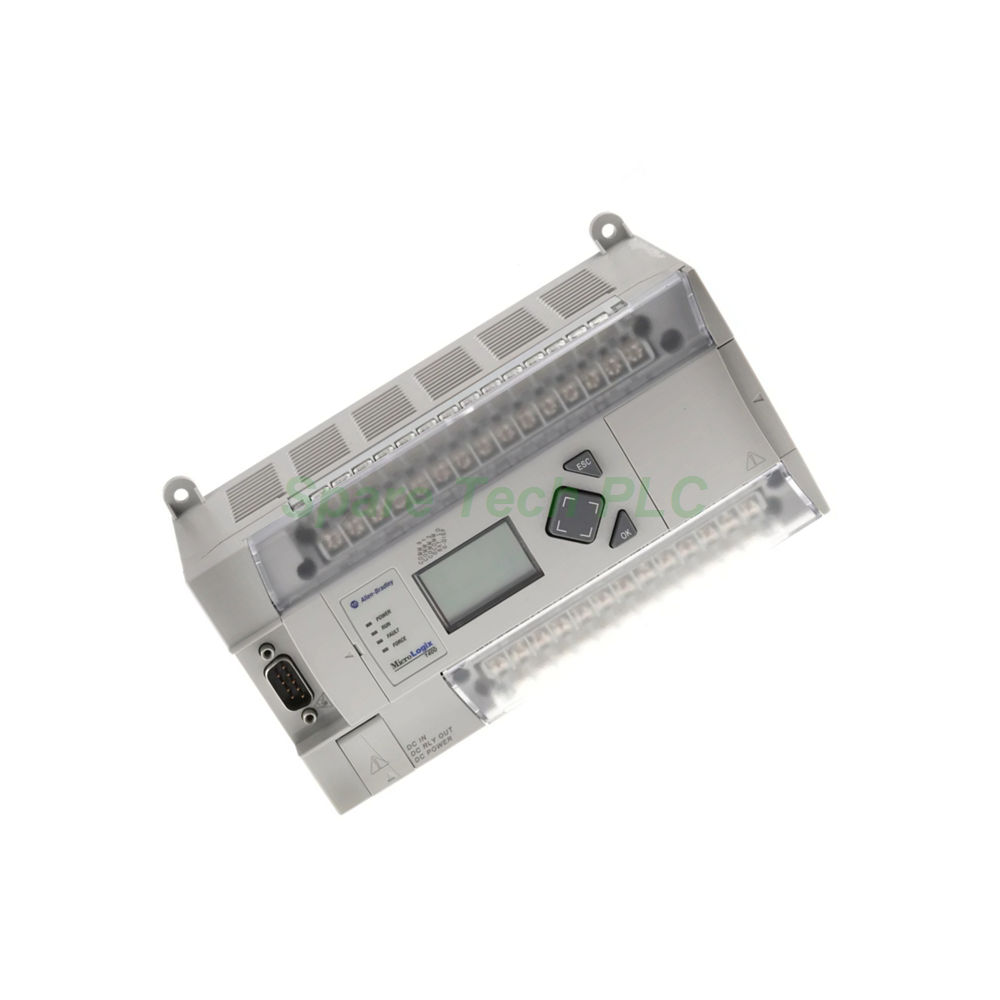

The 1766-L32BXB is a versatile member of the MicroLogix 1400 controller family from Allen-Bradley. This model stands out with its 24V DC power supply and a unique mix of input and output types. It includes both fast and standard DC inputs, plus relay, fast DC, and normal DC outputs. Such variety makes it suitable for applications with mixed voltage requirements and diverse electrical loads. Additionally, the controller supports high-speed counting and pulse output functions.
Furthermore, the Allen-Bradley 1766-L32BXB offers advanced motion control capabilities. Its embedded high-speed outputs support Pulse Train Output (PTO) and Pulse Width Modulation (PWM). These features enable simple motion control tasks like stepper motor drive and speed regulation. Consequently, this controller bridges the gap between standard logic control and basic motion applications. Specifically, its built-in LCD and web server simplify configuration and remote monitoring significantly.
The 1766-L32BXB operates on a 24V DC power supply. Its power consumption is rated at 50W maximum, or 7.5W when no expansion I/O modules are connected. The controller provides 20 KB of total memory, split into 10 KB for user programs and 10 KB for user data. This memory supports recipe management and data logging functions. For time-based applications, it includes a built-in real-time clock (RTC) for scheduling and event-triggered actions.
The I/O configuration is highly flexible. It features twelve (12) fast 24V DC inputs supporting 100 kHz frequency for high-speed counting. Additionally, it includes eight (8) normal 24V DC inputs for general-purpose sensing. For outputs, the 1766-L32BXB provides six (6) relay outputs, three (3) fast 24V DC outputs, and three (3) normal 24V DC outputs. The high-speed DC outputs support PTO with 100 kHz frequency and PWM with 40 kHz frequency. These are ideal for simple motion control and precision timing applications.
Connectivity options on the 1766-L32BXB are comprehensive. The controller includes three integrated communication ports. First, a combo isolated RS-232/RS-485 port provides flexible serial connectivity. Second, a non-isolated RS-232 port is available for programming or local HMI connection. Third, an Ethernet I/P port supports 10/100 Mbps networked communication.
These ports support a wide range of protocols for maximum interoperability. The serial ports handle DF1, DH-485, Modbus RTU, DNP3 Serial, and ASCII protocols. Meanwhile, the Ethernet port supports Ethernet I/P, DNP3 Ethernet, and Modbus TCP/IP. Additionally, the Ethernet port provides access to an embedded web server and email capabilities. You can monitor and diagnose the controller remotely using standard web browsers. This feature significantly simplifies maintenance and troubleshooting tasks.
The 1766-L32BXB is designed for standard industrial environments. Its open-style enclosure requires installation inside a control cabinet. The controller measures 90 x 180 x 87 mm (3.5 x 7.08 x 3.43 inches). It weighs approximately 2 pounds (0.9 kg), making it lightweight and easy to handle.
Furthermore, the controller supports two mounting methods: panel mounting or DIN rail mounting. It is designed for horizontal orientation only. The unit includes a debris strip to protect internal electronics during installation. You should remove this strip after completing all wiring and panel work to ensure proper ventilation. Additionally, the controller is suitable for use in clean, dry locations with circuits not exceeding Over Voltage Category II. The recommended wire size for connections is 22 to 14 AWG.
Proper installation of the 1766-L32BXB ensures reliable long-term operation. First, select a suitable mounting location inside a grounded enclosure. The environment should be free from excessive moisture, dust, and conductive contaminants. Next, choose either panel mounting with screws or secure it onto a standard DIN rail.
During installation, keep the factory-installed debris strip in place. This protects the circuit board from metal shavings and dust generated during panel preparation. After completing all drilling and cutting, remove this strip. Then, proceed with wiring the 24V DC power supply and I/O connections. Use copper conductors rated for the appropriate temperature. Verify that the input voltage matches the controller's 24V DC rating before powering up. Finally, secure all wiring connections tightly to prevent intermittent faults and ensure signal integrity.
Your purchase of the 1766-L32BXB will include the following items:
1766-L32BXB Controller Base Unit
Removable Terminal Blocks for I/O wiring
Debris Strip (pre-installed on the unit)
Quick Start Installation Guide
All orders are shipped via FedEx, UPS, or DHL for fast and reliable worldwide delivery.
What is the power supply requirement for the 1766-L32BXB?
The 1766-L32BXB requires a 24V DC power supply. This is different from other MicroLogix 1400 models that use AC power. Its power consumption is 50W maximum, or 7.5W without expansion modules.
What motion control features does this controller support?
The Allen-Bradley 1766-L32BXB supports Pulse Train Output (PTO) with 100 kHz frequency and Pulse Width Modulation (PWM) with 40 kHz frequency. These features enable simple motion control tasks like stepper motor drives and speed regulation.
How many high-speed inputs does the 1766-L32BXB have?
The 1766-L32BXB has twelve fast 24V DC inputs that support 100 kHz high-speed counting. These are ideal for encoder feedback and high-speed sensor applications.
Can I expand the I/O of this MicroLogix 1400 controller?
Yes, you can. The Allen-Bradley 1766-L32BXB supports expansion with up to seven 1762-series expansion I/O modules. This allows you to increase the total I/O count as your application requirements grow.
What types of outputs does this controller provide?
The 1766-L32BXB provides three types of outputs: six relay outputs for switching AC or DC loads, three fast 24V DC outputs for high-speed signals, and three normal 24V DC outputs for standard DC applications. This mixed output arrangement offers excellent application flexibility.
| Brand Name | |
| Model No. | 1766-L32BXB |
| Product Type | Programmable Logic Controller |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
