1762-IQ32T MicroLogix 32-Channel DC Input Module

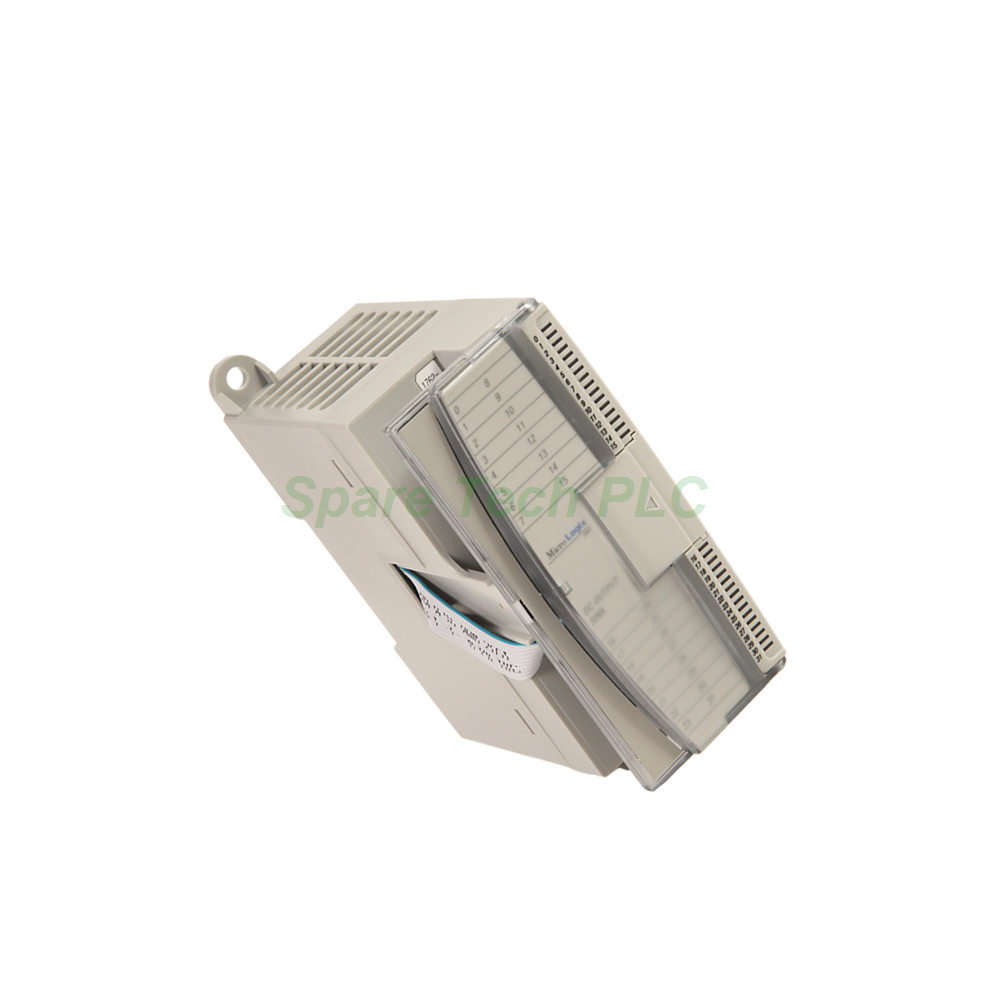

1762-IQ32T MicroLogix High-Density Input Module

Product Introduction

The 1762-IQ32T from Allen‑Bradley is a high‑density discrete input module designed for the MicroLogix 1100, 1200, and 1400 programmable controller families. This expansion unit delivers thirty‑two digital input channels in a remarkably compact housing. Consequently, it provides a space‑efficient solution for applications that require a large number of DC inputs without occupying multiple expansion slots.

The thirty‑two channels are arranged into four isolated groups, with eight channels per group. This group isolation enhances noise immunity and simplifies troubleshooting, as each group can be independently diagnosed. Additionally, the module supports both sink and source wiring configurations, offering flexibility to connect with a wide variety of sensors, proximity switches, and pushbuttons.

Furthermore, the 1762-IQ32T accepts a broad input voltage range from 10 to 30V DC, with a nominal rating of 24V DC. Each channel features a fast signal delay of 8 ms for both ON and OFF transitions, ensuring responsive performance in time‑critical control loops. The module draws 170 mA from the 5V backplane and consumes no 24V backplane current, making it power‑efficient within the system.

Whether you are expanding an existing MicroLogix system or designing a new control panel, the 1762-IQ32T offers a cost‑effective way to add significant digital input capacity. Its high channel count, combined with Allen‑Bradley’s renowned reliability, makes it a preferred choice for machine builders and system integrators alike.

Technical Specifications

The 1762-IQ32T delivers consistent and reliable digital input performance across all channels. Key parameters are detailed below:

Input Specifications

• Number of inputs: 32 (four groups of 8)

• Input type: Sink or source (user‑selectable per group)

• Nominal input voltage: 24V DC

• Operating voltage range:

  • 10–30V DC at 30 °C

  • 10–26.4V DC at 60 °C

• Minimum On‑state voltage: 10V DC

• Maximum Off‑state voltage: 5V DC

• On‑state current:

  • 1.6 mA minimum at 10V DC

  • 2.0 mA minimum at 15V DC

  • 5.7 mA maximum at 26.4V DC

  • 6.5 mA maximum at 30V DC

• Off‑state current: 1.0 mA maximum

• Signal delay (ON and OFF): 8 ms each

• Input grouping:

  • Group 1: channels 0–7

  • Group 2: channels 8–15

  • Group 3: channels 16–23

  • Group 4: channels 24–31

Power & Isolation

• Backplane current draw: 170 mA at 5V DC; 0 mA at 24V DC

• Heat dissipation: 5.4 to 6.8 W (depending on load)

• Isolation (group to backplane):

  • 1,200V AC for 2 s, or 1,697V DC for 2 s

  • 75V DC working voltage (IEC Class 2 reinforced insulation)

Status Indication

• Single status LED for power and general fault indication

These specifications ensure that the 1762-IQ32T can handle a diverse range of field devices with consistent accuracy. The group isolation feature is particularly valuable in noisy industrial environments, as it prevents interference from propagating between groups.

Mechanical & Environmental Ratings

The module is built to withstand typical industrial conditions. Its mechanical and environmental characteristics include:

• Dimensions (H x W x D): 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.)

• Weight: Approximately 200 g (7.05 oz)

• Mounting: 35 mm DIN rail or direct panel mounting

• Operating temperature: –20 to 60 °C (–4 to 140 °F) with derating

• Storage temperature: –40 to 85 °C (–40 to 185 °F)

• Relative humidity: 5–95% non‑condensing

• Shock tolerance: 30G (per IEC 60068‑2‑27)

• Vibration tolerance: 5G at 10–500 Hz

The compact width of 40.4 mm allows the 1762-IQ32T to be installed in tight enclosures, making it ideal for applications where panel space is at a premium. Additionally, the finger‑safe terminal cover enhances safety during wiring and maintenance.

Installation Guidelines

Proper installation of the 1762-IQ32T ensures optimal performance and longevity. Follow these steps:

1. Mounting: Secure the module on a 35 mm DIN rail or attach it directly to a mounting plate using the integrated clips. Ensure the module is firmly seated and locked.

2. Bus Connection: Connect the ribbon cable from the adjacent module or controller base to the bus connector on the side of the 1762-IQ32T. This establishes communication and power distribution via the 1762 bus interface.

3. Power Supply Distance: Verify that the module is placed within the allowable distance from the power supply, as specified in your system layout. Exceeding this limit may cause voltage drop or unreliable operation.

4. Wiring: Connect field devices to the removable terminal blocks. For sink configuration, connect the sensor’s common to the negative side; for source, connect to the positive side. Always use shielded cables for long runs and keep signal wires separated from power cables.

5. Grounding: Connect the module’s ground terminal to the system’s protective earth. A low‑impedance ground path is critical for optimal noise rejection and safety.

6. Configuration: Use the controller’s programming software to configure each input channel. Set up any required filtering, scaling, or alarm parameters as needed by your application.

After installation, power up the system and verify that the 1762-IQ32T is correctly recognised by the controller. Check the status LED for any power or communication issues. Always observe electrostatic discharge (ESD) precautions when handling the module.

Packaging List

When you order the 1762-IQ32T, the package includes:

• 1762-IQ32T high‑density input module (1 unit)

• Removable terminal block (pre‑installed)

• Ribbon bus cable for interconnection

• Mounting clips for DIN‑rail or panel installation

• Quick‑start installation guide (printed)

Note: Cables, power supplies, and programming software are sold separately.

Frequently Asked Questions (FAQ)

1. Can I use the 1762-IQ32T with a MicroLogix 1400 controller?
Yes, the 1762-IQ32T is fully compatible with MicroLogix 1100, 1200, and 1400 controllers. It connects via the standard 1762 expansion bus and is recognised automatically by the controller’s I/O configuration.

2. What does "group isolation" mean, and why is it important?
Group isolation means that each of the four groups of eight inputs is electrically isolated from the others and from the backplane. This prevents ground loops and reduces noise interference, which is especially important in applications with long sensor cables or mixed voltage sources.

3. How do I choose between sink and source wiring?
The choice depends on your field devices. If your sensors are NPN (switching to ground), use sink configuration. For PNP sensors (switching to positive), use source. The 1762-IQ32T supports both, so you can mix different sensor types across the four groups.

4. What is the maximum cable length I can use for input wiring?
For reliable operation, we recommend keeping input cable lengths under 500 metres for shielded cables and under 300 metres for unshielded cables. Longer runs may require additional filtering or isolation to maintain signal integrity.
